FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

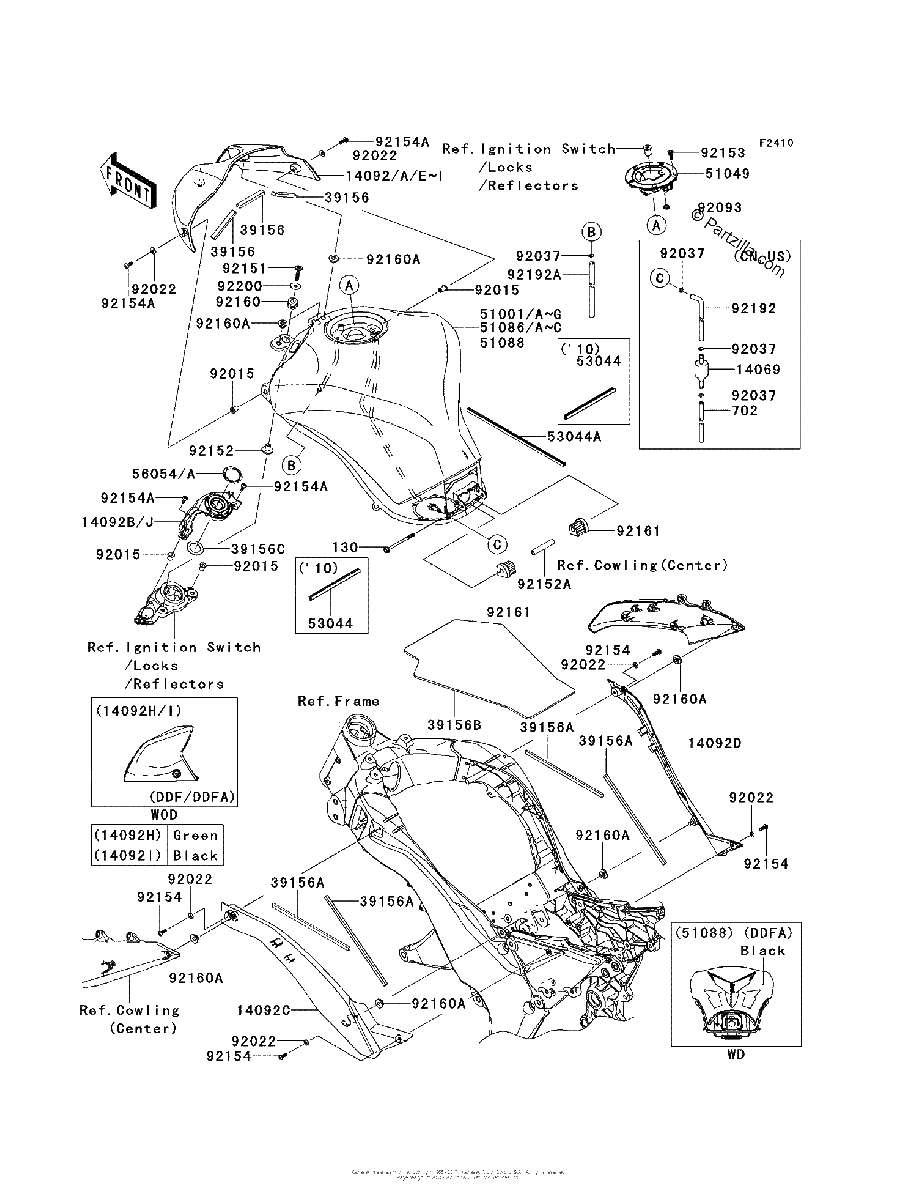

Diagrama de FUEL TANK

Repuestos

#130
130BB0670
BOLT FLANGED,6X70
$5.36¢2 680
1
#702
702A06300
TUBE RUBBER,6X9X300
$4.98¢2 490
1
#14069
14069-0008
BREATHER,TANK
$6.18¢3 088
1
#14092
14092-0171-32N
COVER,FUEL TANK,F EBONY
$246.10¢123 050
1
#14092
14092-0171-660
COVER,FUEL TANK,M S BLACK
$241.60¢120 802
1
#14092
14092-0171-40R
COVER,FUEL TANK,G B GREEN
$241.58¢120 790
1
#14092
14092-0171-H8
COVER,FUEL TANK,EBONY
$246.10¢123 050
1
#14092
14092-0171-17L
COVER,FUEL TANK,C B ORANGE
$246.10¢123 050
1
#14092
14092-0008-660
COVER,FUEL TANK,M S BLACK
No Disponible
1
#14092
14092-0008-25Y
COVER,FUEL TANK,P S WHITE
$257.96¢128 978
1
#14092F
14092-0171-17L
COVER,FUEL TANK,C B ORANGE
$246.10¢123 050
1
#14092B
14092-0009
COVER,KEY CYLINDER
No Disponible
1
#14092C
14092-0010-6Z
COVER,KNEE,Left Hand,F BLACK
$80.87¢40 434
1
#14092D
14092-0011-6Z
COVER,KNEE,Right Hand,F BLACK
$80.87¢40 434
1
#14092B
14092-0178
COVER,KEY CYLINDER
No Disponible
1
#39156
39156-0562
PAD
$1.30¢650
1
#39156C
39156-0617
PAD
$3.85¢1 926
1
#39156A
39156-0563
PAD
$3.85¢1 926
1
#39156B
39156-0566
PAD,FUEL TANK
$49.92¢24 961
1
#51001
51001-0329-660
TANK COMP FUEL,M S BLACK
$1508.49¢754 245
1
#51001
51001-0322-25Y
TANK COMP FUEL,P S WHITE
$1581.33¢790 665
1
#51001
51001-0322-660
TANK COMP FUEL,M S BLACK
$1253.53¢626 767
1
#51001
51001-0329-H8
TANK COMP FUEL,EBONY
$1508.49¢754 245
1
#51001
51001-0329-17L
TANK COMP FUEL,C B ORANGE
$1508.49¢754 245
1
#51001
51001-0329-17P
TANK COMP FUEL,C L GREEN
$1508.49¢754 245
1
#51001
51001-0329-25Y
TANK COMP FUEL,P S WHITE
$1581.33¢790 665
1
#51001
51001-0329-40R
TANK COMP FUEL,G B GREEN
$1480.99¢740 496
1
#51001C
51001-0329-17L
TANK COMP FUEL,C B ORANGE
$1508.49¢754 245
1
#51049
51049-0039
CAP TANK,FUEL
$159.95¢79 977
1
#51086A
51086-5396-17L
TANK COMP FUEL,C B ORANGE
$1401.40¢700 701
1
#51086
51086-5396-17L
TANK COMP FUEL,C B ORANGE
$1401.40¢700 701
1
#51086
51086-5396-17P
TANK COMP FUEL,C L GREEN
$1401.40¢700 701
1
#51086
51086-5396-40R
TANK COMP FUEL,G B GREEN
$1401.40¢700 701
1
#51086
51086-5396-H8
TANK COMP FUEL,EBONY
$1401.40¢700 701
1
#51088
51088-5043-660
TANK COMP FUEL,M S BLACK
No Disponible
1
#53044A
53044-1296
TRIM
$12.37¢6 187
1
#53044
53044-0016
TRIM
$12.30¢6 152
1
#56054
56054-0609
MARK,IGNITION
$8.18¢4 088
1
#56054
56054-1108
MARK,IGNITION
$7.96¢3 979
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92022
92022-1521
WASHER,NYLON,5.3X11.5X1.5
$3.59¢1 794
1
#92037
92037-010
CLAMP,TUBE | [CA]
$3.59¢1 794
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92151
92151-1605
BOLT,SOCKET,6X30
$2.01¢1 006
1
#92152A
92152-1182
COLLAR,6.8X10X60
$4.42¢2 208
1
#92152
92152-0048
COLLAR
$2.46¢1 231
1
#92153
92153-1616
BOLT,SOCKET,5X16
$1.24¢621
1
#92154A
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154
92154-0026
BOLT,SOCKET,5X16
$2.17¢1 087
1
#92160A
92160-1613
DAMPER
$3.40¢1 702
1
#92160
92160-1167
DAMPER,10X20X12
$4.28¢2 139
1
#92161
92161-1330
DAMPER,FUEL TANK,RR
$5.29¢2 645
1
#92192A
92192-0911
TUBE,6X9X950
$26.43¢13 214
1
#92192
92192-0798
TUBE,BREATHER
$5.19¢2 593
1
#92200
92200-1087
WASHER,6.5X22X1.6
$3.61¢1 805
1
