SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

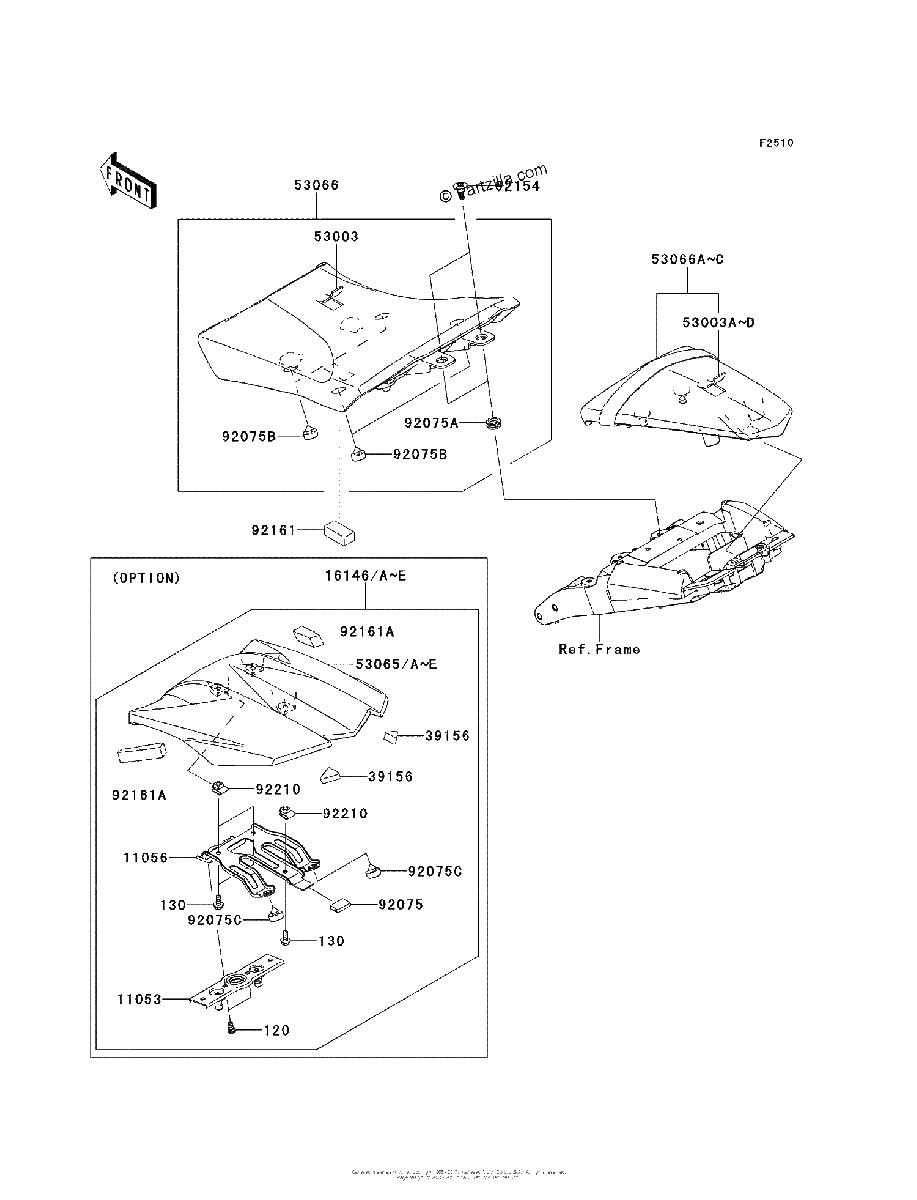

Diagrama de SEAT

Repuestos

#120
120CA0610
BOLT-SOCKET,6X10
$1.66¢831
1
#130
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#11053
11053-0386
BRACKET,SEAT LOCK STRIKER
$36.11¢18 056
1
#11056
11056-0021
BRACKET | (OPTION)
$88.67¢44 338
1
#16146
16146-0124-17L
COVER Assembly,SINGLE SEAT,ORG
$318.02¢159 013
1
#16146
16146-0124-17P
COVER-ASSY,SINGLE SEAT,C.L.GRN | (OPTION) (OPTION)
$308.63¢154 313
1
#16146
16146-0124-25Y
COVER Assembly,SINGLE SEAT,WHITE
$306.65¢153 325
1
#16146
16146-0124-40R
COVER Assembly,SINGLE SEAT,G B GRN
$308.63¢154 313
1
#16146
16146-0124-660
COVER Assembly,SINGLE SEAT,BLACK
$315.71¢157 856
1
#16146
16146-0124-H8
COVER Assembly,SINGLE SEAT,EBONY
$308.63¢154 313
1
#16146A
16146-0124-17L
COVER Assembly,SINGLE SEAT,ORG
$318.02¢159 013
1
#39156
39156-0099
PAD
$4.09¢2 044
1
#53003
53003-0162-MA
LEATHER,Front SEAT,BLACK
$183.78¢91 888
1
#53003A
53003-0163-MA
LEATHER,Rear SEAT,BLACK
$183.78¢91 888
1
#53003A
53003-0163-13U
LEATHER,Rear SEAT,P S WHITE
$196.15¢98 075
1
#53003A
53003-0163-12Y
LEATHER,Rear SEAT,BLACK
$183.78¢91 888
1
#53003B
53003-0163-12Q
LEATHER,Rear SEAT,M C ORANGE
$183.78¢91 888
1
#53003A
53003-0163-12Q
LEATHER,Rear SEAT,M C ORANGE
$183.78¢91 888
1
#53065
53065-0019-660
COVER SEAT,M S BLACK
$408.39¢204 194
1
#53065
53065-0019-H8
COVER SEAT,EBONY
$415.85¢207 925
1
#53065
53065-0019-17L
COVER SEAT,C B ORANGE
$386.35¢193 175
1
#53065
53065-0019-40R
COVER SEAT,G B GREEN
$408.39¢204 194
1
#53065
53065-0019-25Y
COVER SEAT,P S WHITE
$408.39¢204 194
1
#53065
53065-0019-17P
COVER SEAT,C L GREEN
$408.39¢204 194
1
#53065A
53065-0019-17L
COVER SEAT,C B ORANGE
$386.35¢193 175
1
#53066A
53066-0284-13V
SEAT,Rear,LEATHER WHT+BAND WHT
$302.40¢151 200
1
#53066A
53066-0284-12Y
SEAT,Rear,LEATHER Black+BAND Black
$296.91¢148 456
1
#53066B
53066-0284-13L
SEAT,Rear,LEATHER ORG+BAND ORG
$299.30¢149 650
1
#53066A
53066-0284-13L
SEAT,Rear,LEATHER ORG+BAND ORG
$299.30¢149 650
1
#53066
53066-0282-MA
SEAT Assembly,Front,BLACK
No Disponible
1
#92075A
92075-1634
DAMPER
$4.65¢2 325
1
#92075B
92075-1927
DAMPER,10X20X8
$4.36¢2 181
1
#92075C
92075-1927
DAMPER,10X20X8
$4.36¢2 181
1
#92075
92075-1446
DAMPER
$4.88¢2 438
1
#92154
92154-0292
BOLT,6X20
$4.25¢2 125
1
#92161A
92161-0897
DAMPER | (OPTION)
$4.80¢2 400
1
#92161
92161-0889
DAMPER,FR SEAT
$3.81¢1 906
1
#92210
92210-0277
NUT,6MM
$4.88¢2 438
1
