COWLING CENTER DAF DCF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

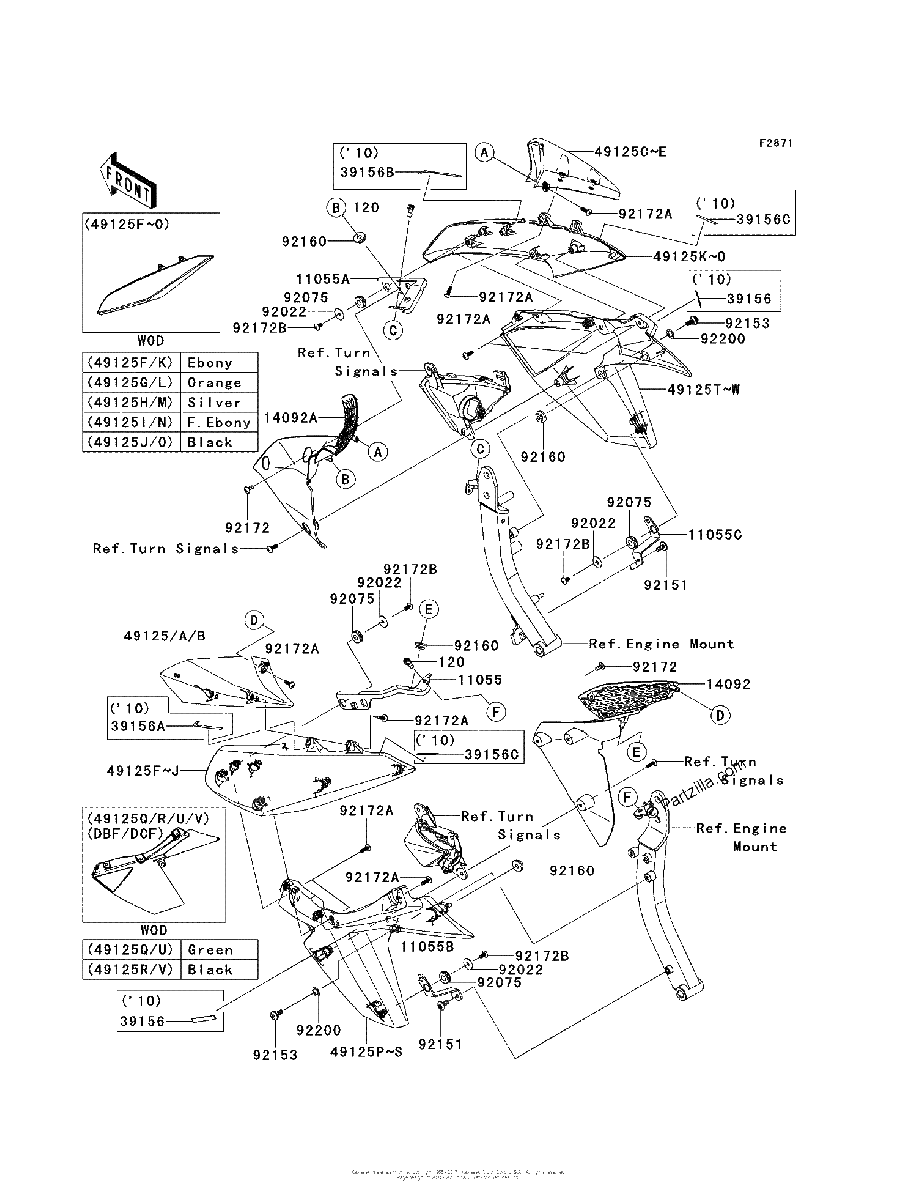

Diagrama de COWLING CENTER DAF DCF

Repuestos

#120
120CB0614
BOLT-SOCKET,6X14
$3.77¢1 886
1
#11055
11055-1944
BRACKET,SHROUD,Upper,Left Hand
$15.11¢7 555
1
#11055A
11055-1945
BRACKET,SHROUD,UPP,RH
$15.11¢7 555
1
#11055B
11055-1946
BRACKET,SHROUD,Left Hand
$6.13¢3 065
1
#11055C
11055-1947
BRACKET,SHROUD,RH
$6.13¢3 065
1
#14092
14092-0014
COVER,INNER,Left Hand
$44.32¢22 161
1
#14092A
14092-0015
COVER,INNER,RH
$44.32¢22 161
1
#39156
39156-0633
PAD,45X8
$1.30¢650
1
#39156A
39156-0636
PAD,MID SHROUD,Left Hand,Front
$6.68¢3 341
1
#39156B
39156-0637
PAD,MID SHROUD,Right Hand,Front
$6.37¢3 186
1
#39156C
39156-0638
PAD,MID SHROUD,Rear
No Disponible
1
#49125V
49125-0049-18T
SHROUD,Lower,Right Hand,F S BLACK
$138.92¢69 460
1
#49125K
49125-0047-660
SHROUD,MID,Right Hand,M S BLACK
$112.61¢56 304
1
#49125K
49125-0047-H8
SHROUD,MID,RH,EBONY
$112.61¢56 304
1
#49125P
49125-0048-17P
SHROUD,Lower,Left Hand,C L GREEN
$146.87¢73 433
1
#49125R
49125-0048-18T
SHROUD,Lower,Left Hand,F S BLACK
$138.92¢69 460
1
#49125P
49125-0048-18T
SHROUD,Lower,Left Hand,F S BLACK
$138.92¢69 460
1
#49125P
49125-0048-660
SHROUD,Lower,Left Hand,M S BLACK
$153.86¢76 929
1
#49125P
49125-0048-H8
SHROUD,Lower,Left Hand,EBONY
$131.02¢65 510
1
#49125T
49125-0049-17P
SHROUD,Lower,Right Hand,C L GREEN
$146.33¢73 163
1
#49125T
49125-0049-18T
SHROUD,Lower,Right Hand,F S BLACK
$138.92¢69 460
1
#49125T
49125-0049-660
SHROUD,Lower,Right Hand,M S BLACK
$153.29¢76 648
1
#49125K
49125-0047-32N
SHROUD,MID,Right Hand,F EBONY
$112.61¢56 304
1
#49125T
49125-0049-H8
SHROUD,Lower,Right Hand,EBONY
$146.33¢73 163
1
#49125O
49125-0047-660
SHROUD,MID,Right Hand,M S BLACK
$112.61¢56 304
1
#49125K
49125-0047-17M
SHROUD,MID,Right Hand,A SILVER
$126.04¢63 020
1
#49125
49125-0044-17L
SHROUD,Upper,Left Hand,C B ORANGE
$109.38¢54 688
1
#49125
49125-0044-18T
SHROUD,Upper,Left Hand,F S BLACK
$109.27¢54 636
1
#49125K
49125-0047-17L
SHROUD,MID,Right Hand,C B ORANGE
$126.04¢63 020
1
#49125
49125-0044-27E
SHROUD,Upper,Left Hand,M SILVER
$116.44¢58 219
1
#49125C
49125-0045-17L
SHROUD,Upper,Right Hand,C B ORANGE
$109.38¢54 688
1
#49125C
49125-0045-18T
SHROUD,Upper,Right Hand,F S BLACK
$109.27¢54 636
1
#49125C
49125-0045-27E
SHROUD,Upper,Right Hand,M SILVER
$111.26¢55 631
1
#49125F
49125-0046-17L
SHROUD,MID,Left Hand,C B ORANGE
$126.04¢63 020
1
#49125F
49125-0046-17M
SHROUD,MID,Left Hand,A SILVER
$126.04¢63 020
1
#49125F
49125-0046-32N
SHROUD,MID,Left Hand,F EBONY
$106.89¢53 446
1
#49125J
49125-0046-660
SHROUD,MID,Left Hand,M S BLACK
$112.61¢56 304
1
#49125F
49125-0046-660
SHROUD,MID,Left Hand,M S BLACK
$112.61¢56 304
1
#49125F
49125-0046-H8
SHROUD,MID,LH,EBONY
$112.61¢56 304
1
#92022
92022-1405
WASHER,5.5X20X1.2
$3.94¢1 972
1
#92075
92075-051
DAMPER
$3.59¢1 794
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.49¢747
1
#92153
92153-1956
BOLT,SOCKET,6MM
$3.58¢1 788
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92172
92172-0008
SCREW,5X12,GREEN
$1.62¢811
1
#92172A
92172-0175
SCREW,TAPPING,5X16
$1.59¢793
1
#92172B
92172-1061
SCREW,TAPPING,5X10
No Disponible
1
#92200
92200-0157
WASHER,10.4X15.9X0.5
$1.87¢937
1
