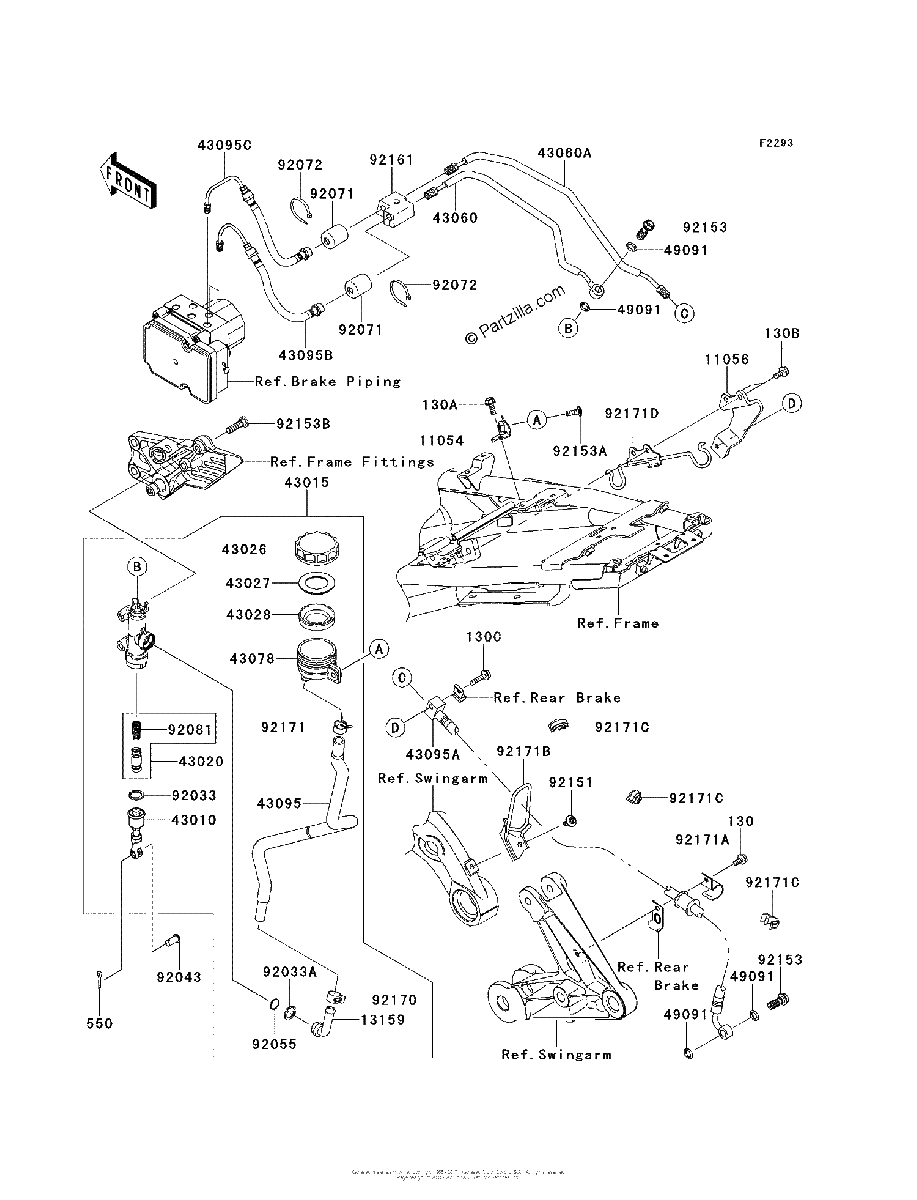

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
#130C
BOLT-FLANGED,6X25
$2.21¢1 104
#130A
BOLT FLANGED,6X16
$1.16¢581
#130B
BOLT FLANGED,6X14
$2.12¢1 058
#550
PIN COTTER,2.0X15
$1.08¢541
#11054
BRACKET,RESERVOIR TANK,RR
$8.20¢4 100
#11056
BRACKET,HOSE JOINT,Rear
$26.05¢13 024
#13159
CONNECTOR
$12.83¢6 417
#43010
ROD-ASSY-BRAKE
$82.98¢41 492
#43015
CYLINDER-ASSY-MASTER
$465.80¢232 898
#43020
PISTON-COMP-BRAKE
$68.37¢34 184
#43026
CAP BRAKE
$35.82¢17 911
#43027
PLATE DIAPHRAGM
$4.84¢2 421
#43028
DIAPHRAGM,MASTER CYLINDER
$17.26¢8 631
#43060
PIPE-BRAKE,HU-RR M/CYLINDER
$95.30¢47 650
#43060A
PIPE BRAKE,HU Rear CALIPER,JNT.
$56.19¢28 094
#43078
RESERVOIR,RR MASTER CYLINDER
$31.25¢15 623
#43095
HOSE-BRAKE,RR,MASTER CYLINDER
$32.89¢16 445
#43095C
HOSE BRAKE,HU Rear CALIPER
$129.63¢64 814
#43095A
HOSE BRAKE,HU Rear CALIPER
$138.18¢69 092
#43095B
HOSE BRAKE,HU Rear M/CYLINDER
$129.63¢64 814
#49091
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
#92033A
RING-SNAP,20.5MM
$4.53¢2 266
#92033
RING SNAP,20.9X24.6X1.2
$7.12¢3 559
#92043
PIN,8X17
$3.58¢1 788
#92055
RING O,14.8X2.4
$3.38¢1 691
#92071
GROMMET
$6.09¢3 048
#92072
BAND,L=148
$3.59¢1 794
#92081
SPRING,MASTER CYLINDER
$12.59¢6 296
#92151
BOLT,SOCKET,6X14
$1.49¢747
#92153B
BOLT,SOCKET,8X30
$3.58¢1 788
#92153A
BOLT,6X18
$2.27¢1 133
#92153
BOLT,OIL,L=23
$4.98¢2 490
#92161
DAMPER,HOSE CLAMP
$12.30¢6 152
#92170
CLAMP,HOSE
$4.57¢2 283
#92171A
CLAMP,BRAKE HOSE
$6.31¢3 157
#92171B
CLAMP,BRAKE HOSE
$17.16¢8 579
#92171C
CLAMP,BRAKE HOSE
$5.22¢2 610
#92171
CLAMP,HOSE
$5.99¢2 996
#92171D
CLAMP,RESERVE TANK HOSE
$41.02¢20 510
