COWLING CENTER CAF CCF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

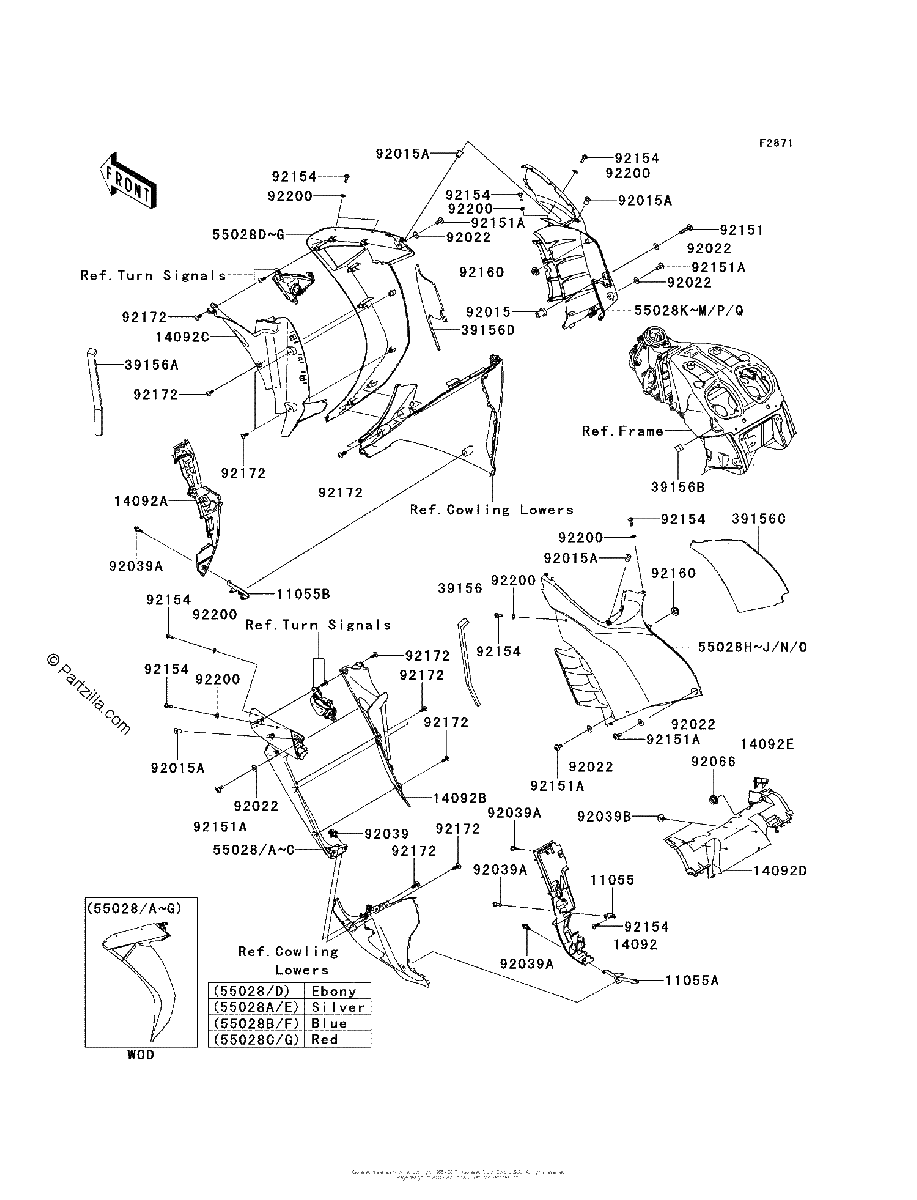

Diagrama de COWLING CENTER CAF CCF

Repuestos

#11055
11055-1837
BRACKET,RESERVOIR
$4.13¢2 063
1
#11055A
11055-1838
BRACKET,Lower COWLING,Left Hand
$13.77¢6 887
1
#11055B
11055-1839
BRACKET,Lower COWLING,Right Hand
$6.72¢3 363
1
#14092
14092-0098
COVER,HEAT GUARD,Left Hand
$67.78¢33 888
1
#14092A
14092-0099
COVER,HEAT GUARD,Right Hand
$67.78¢33 888
1
#14092B
14092-0102
COVER,SHROUD,Left Hand
$91.75¢45 875
1
#14092C
14092-0103
COVER,SHROUD,Right Hand
$91.75¢45 875
1
#14092D
14092-0135
COVER,HEAT GUARD,Front
$105.61¢52 806
1
#14092E
14092-0136
COVER,RADIATOR CAP
$13.49¢6 744
1
#39156C
39156-0595
PAD,CNT COWLING,Left Hand
$25.44¢12 719
1
#39156
39156-0591
PAD,SHROUD,Left Hand
$3.25¢1 625
1
#39156A
39156-0593
PAD,SHROUD,Right Hand
$3.25¢1 625
1
#39156B
39156-0594
PAD,20X20X14
$3.79¢1 894
1
#39156D
39156-0596
PAD,CNT COWLING,Right Hand
$25.44¢12 719
1
#55028K
55028-0329-27Z
COWLING,CNT,Right Hand,C N BLUE
No Disponible
1
#55028K
55028-0329-H8
COWLING,CNT,RH,EBONY
No Disponible
1
#55028O
55028-0388-33M
COWLING,CNT,Left Hand,C A RED
$563.27¢281 638
1
#55028H
55028-0388-33M
COWLING,CNT,Left Hand,C A RED
$563.27¢281 638
1
#55028H
55028-0388-H8
COWLING,CNT,Left Hand,EBONY
$563.27¢281 638
1
#55028N
55028-0388-H8
COWLING,CNT,Left Hand,EBONY
$563.27¢281 638
1
#55028K
55028-0389-33M
COWLING,CNT,Right Hand,C A RED
$563.27¢281 638
1
#55028Q
55028-0389-33M
COWLING,CNT,Right Hand,C A RED
$563.27¢281 638
1
#55028P
55028-0389-H8
COWLING,CNT,Right Hand,EBONY
$563.27¢281 638
1
#55028K
55028-0389-H8
COWLING,CNT,Right Hand,EBONY
$563.27¢281 638
1
#55028H
55028-0328-H8
COWLING,CNT,Left Hand,EBONY
No Disponible
1
#55028K
55028-0329-17M
COWLING,CNT,RH,A.SILV
No Disponible
1
#55028H
55028-0328-27Z
COWLING,CNT,Left Hand,C N BLUE
No Disponible
1
#55028H
55028-0328-17M
COWLING,CNT,LH,A.SILV
No Disponible
1
#55028
55028-0320-17M
COWLING,SIDE,LH,A.SILVER
$382.25¢191 125
1
#55028
55028-0320-27Z
COWLING,SIDE,Left Hand,C N BLUE
$312.29¢156 144
1
#55028
55028-0320-33M
COWLING,SIDE,Left Hand,C A RED
$382.25¢191 125
1
#55028C
55028-0320-33M
COWLING,SIDE,Left Hand,C A RED
$382.25¢191 125
1
#55028
55028-0320-H8
COWLING,SIDE,LH,EBONY
$378.43¢189 213
1
#55028D
55028-0321-17M
COWLING,SIDE,Right Hand,A SILVER
$382.25¢191 125
1
#55028D
55028-0321-27Z
COWLING,SIDE,Right Hand,C N BLUE
$400.34¢200 169
1
#55028G
55028-0321-33M
COWLING,SIDE,Right Hand,C A RED
$382.25¢191 125
1
#55028D
55028-0321-33M
COWLING,SIDE,Right Hand,C A RED
$382.25¢191 125
1
#55028D
55028-0321-H8
COWLING,SIDE,Right Hand,EBONY
$382.25¢191 125
1
#92015
92015-1692
NUT,RUBBER,6MM
$7.30¢3 650
1
#92015A
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92022
92022-1143
WASHER,6.5X16X1
$3.90¢1 950
1
#92039
92039-0014
RIVET,HOLE 8MM
$2.97¢1 487
1
#92039A
92039-0051
RIVET
$4.61¢2 306
1
#92039B
92039-1289
RIVET
$2.58¢1 288
1
#92066
92066-1306
PLUG
$5.40¢2 700
1
#92151
92151-1605
BOLT,SOCKET,6X30
$2.19¢1 094
1
#92151A
92151-1654
BOLT,SOCKET,6X14
$1.63¢813
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92160
92160-1613
DAMPER
$3.70¢1 850
1
#92172
92172-0238
SCREW,TAPPING,5X16
$1.09¢544
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.77¢888
1
