GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

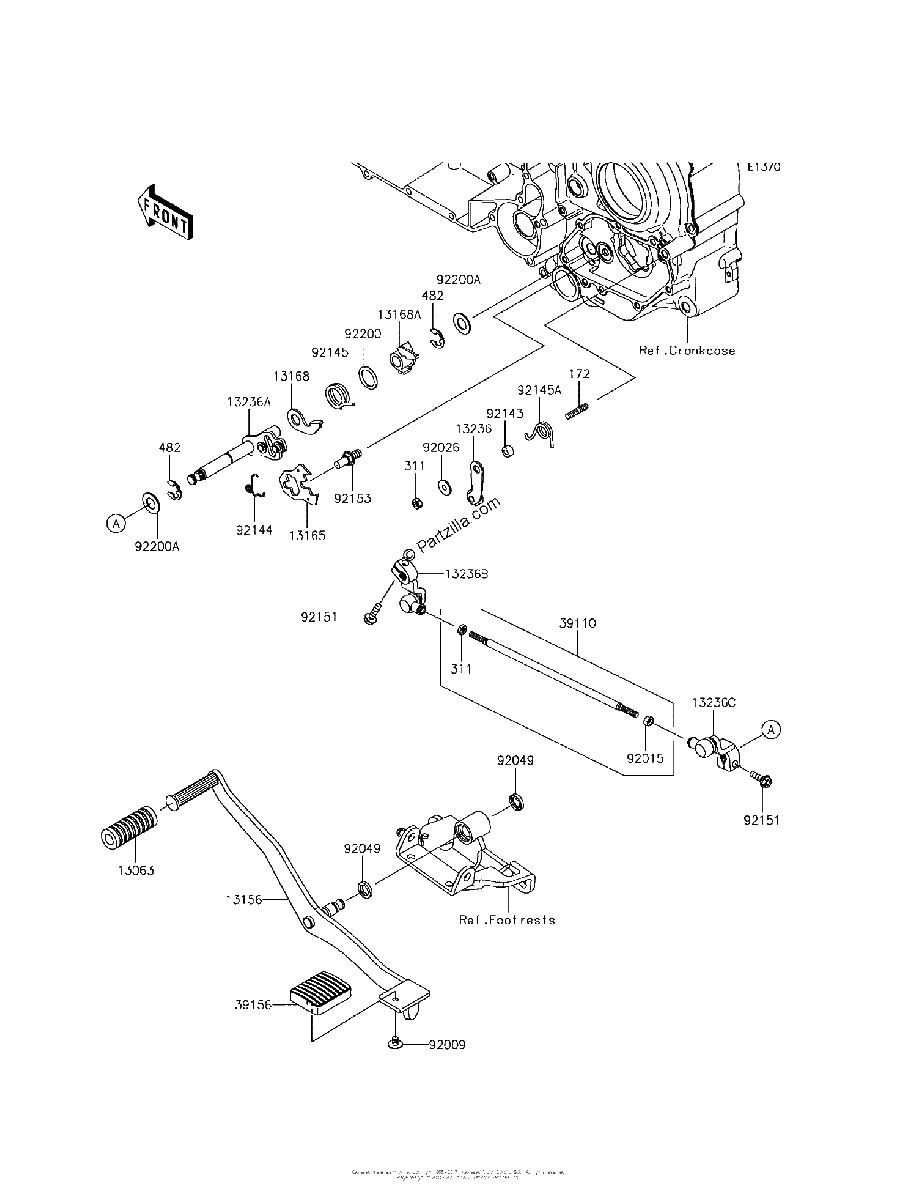

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#172
172BA0618
BOLT-STUD,6X18
$1.33¢663
1
#311
311BA0600
NUT-HEX,6MM
$2.05¢1 025
1
#482
482J0200
CIRCLIP-TYPE-E,12MM
$4.13¢2 063
1
#13063
13063-002
DAMPER,PEDAL
$4.47¢2 238
1
#13156
13156-0138
LEVER CHANGE
$174.00¢87 000
1
#13165
13165-0001
PAWL
$18.91¢9 456
1
#13168A
13168-0010
LEVER
$13.10¢6 550
1
#13168
13168-0009
LEVER
$4.16¢2 081
1
#13236B
13236-0154
LEVER COMP,Front LINKAGE
$73.10¢36 550
1
#13236C
13236-0155
LEVER-COMP,RR LINKAGE
$69.83¢34 913
1
#13236A
13236-0153
LEVER COMP,CHANGE
$56.61¢28 306
1
#13236
13236-0059
LEVER-COMP,POSITION
$16.79¢8 394
1
#39110
39110-0034
ROD Assembly TIE
$34.69¢17 344
1
#39156
39156-1641
PAD
$11.57¢5 788
1
#92009
92009-1677
SCREW,6X8
$4.29¢2 144
1
#92015
92015-1125
NUT
$4.50¢2 250
1
#92026
92026-1217
SPACER
$5.45¢2 725
1
#92049
92049-1398
SEAL OIL,VB13193
$6.09¢3 044
1
#92143
92143-1595
COLLAR
$10.79¢5 394
1
#92144
92144-1029
SPRING
$7.72¢3 863
1
#92145A
92145-0718
SPRING,16X3
$5.41¢2 706
1
#92145
92145-0661
SPRING,24X3.2
$5.41¢2 706
1
#92151
92151-1226
BOLT,FLANGED,6X20
$2.29¢1 144
1
#92153
92153-0421
BOLT,RETURN SPRING
$10.31¢5 156
1
#92200A
92200-0477
WASHER,13.4X25X1.6
$3.83¢1 913
1
#92200
92200-0018
WASHER,20.5X27X1.6
$3.24¢1 619
1
