FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

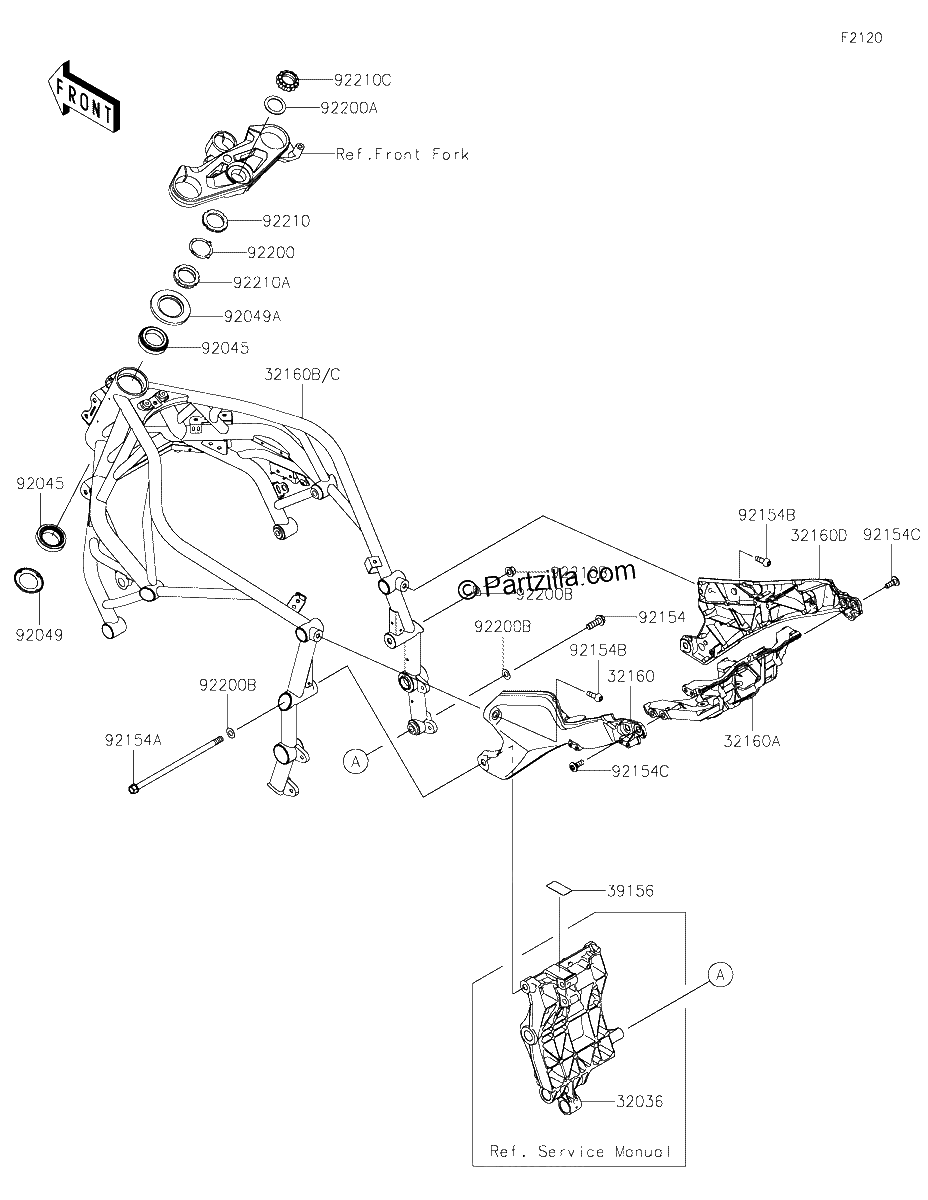

Diagrama de FRAME

Repuestos

#32036
32036-0353-46R
BRACKET SWINGARM,M F S BLACK
$600.60¢300 299
1
#32160
32160-0742-46R
FRAME COMP,Rear,Left Hand,M F S BLACK
$226.27¢113 137
1
#32160D
32160-0887-46R
FRAME-COMP,RR,RH,M.F.S.BLACK
$228.56¢114 281
1
#32160B
32160-0753-45W
FRAME COMP,MAIN,M G GRAY
$4920.17¢2 460 086
1
#32160B
32160-0753-40R
FRAME COMP,MAIN,G B GREEN
$4920.17¢2 460 086
1
#32160A
32160-0747
FRAME-COMP,RR
No Disponible
1
#39156
39156-1896
PAD,22X45
$7.80¢3 899
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$47.85¢23 926
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$15.72¢7 860
1
#92049A
92049-1382
SEAL OIL,XMH 43 75 6.4J
$23.74¢11 868
1
#92154B
92154-1557
BOLT,SOCKET,8X25
$15.70¢7 849
1
#92154C
92154-1901
BOLT,SOCKET,8X23
$3.29¢1 644
1
#92154
92154-0543
BOLT,FLANGED,10X30
$8.60¢4 301
1
#92154A
92154-1556
BOLT,FLANGED,10X223
$35.85¢17 923
1
#92200B
92200-1732
WASHER,10.2X20X0.5
$9.84¢4 922
1
#92200A
92200-0595
WASHER,28.5X40X1.6
$3.96¢1 978
1
#92200
92200-0036
WASHER
$4.57¢2 283
1
#92210B
92210-1139
NUT,LOCK,FLANGED,10MM
$3.47¢1 737
1
#92210A
92210-0096
NUT,35MM
$19.93¢9 965
1
#92210
92210-0095
NUT,35MM
$16.50¢8 251
1
#92210C
92210-1416
NUT,STEERING,28MM
$198.52¢99 262
1
