MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

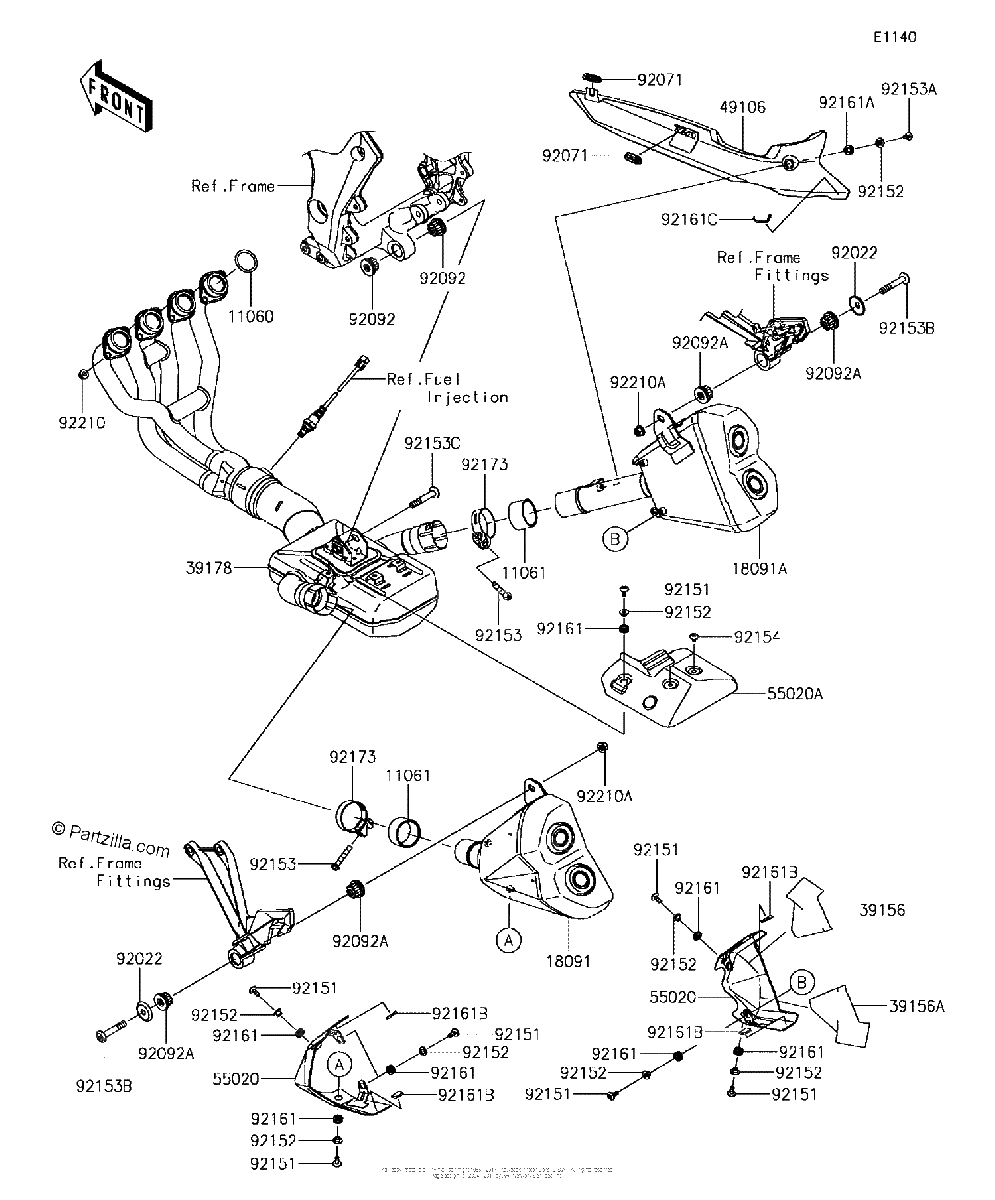

Diagrama de MUFFLER S

Repuestos

#11060
11060-1103
GASKET,EXHAUST PIPE HOLDER
$7.84¢3 919
1
#11061
11061-0726
GASKET,MUFFLER CONNECTING
$42.26¢21 131
1
#18091
18091-1108
BODY-COMP-MUFFLER,LH
$1369.72¢684 863
1
#18091A
18091-1124
BODY-COMP-MUFFLER,RH
$1420.49¢710 244
1
#39156
39156-0728
PAD
$9.72¢4 863
1
#39156A
39156-0729
PAD
$9.72¢4 863
1
#39178
39178-0204
MANIFOLD-COMP-EXHAUST
$2019.16¢1 009 581
1
#49106
49106-0710
COVER-MUFFLER
$270.73¢135 363
1
#55020
55020-0568
GUARD,FRONT COVER
$244.86¢122 431
1
#55020A
55020-0904
GUARD,CHAMBER
$188.72¢94 363
1
#92022
92022-289
WASHER
$16.15¢8 075
1
#92071
92071-1187
GROMMET
$4.92¢2 463
1
#92092
92092-1081
BUSHING RUBBER
$26.23¢13 113
1
#92092A
92092-1087
BUSHING RUBBER,MUFFLER
$20.89¢10 444
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.63¢813
1
#92152
92152-0286
COLLAR,6.3X8.3X16
$5.56¢2 781
1
#92153A
92153-0817
BOLT,SOCKET,6X16
$2.04¢1 019
1
#92153C
92153-1930
BOLT,SOCKET,10X58
$9.90¢4 950
1
#92153B
92153-1837
BOLT,SOCKET,10X60
$13.46¢6 731
1
#92153
92153-0702
BOLT,8X45
$3.24¢1 619
1
#92154
92154-0963
BOLT,SOCKET,6X8
$4.64¢2 319
1
#92161C
92161-0870
DAMPER,SIDE COVER
$5.51¢2 756
1
#92161B
92161-0856
DAMPER
$12.52¢6 262
1
#92161A
92161-0308
DAMPER
$4.11¢2 056
1
#92161
92161-0306
DAMPER
$5.56¢2 781
1
#92173
92173-0037
CLAMP
$30.06¢15 031
1
#92210
92210-0076
NUT,8MM
$5.41¢2 706
1
#92210A
92210-1139
NUT,LOCK,FLANGED,10MM
$3.77¢1 888
1
