CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

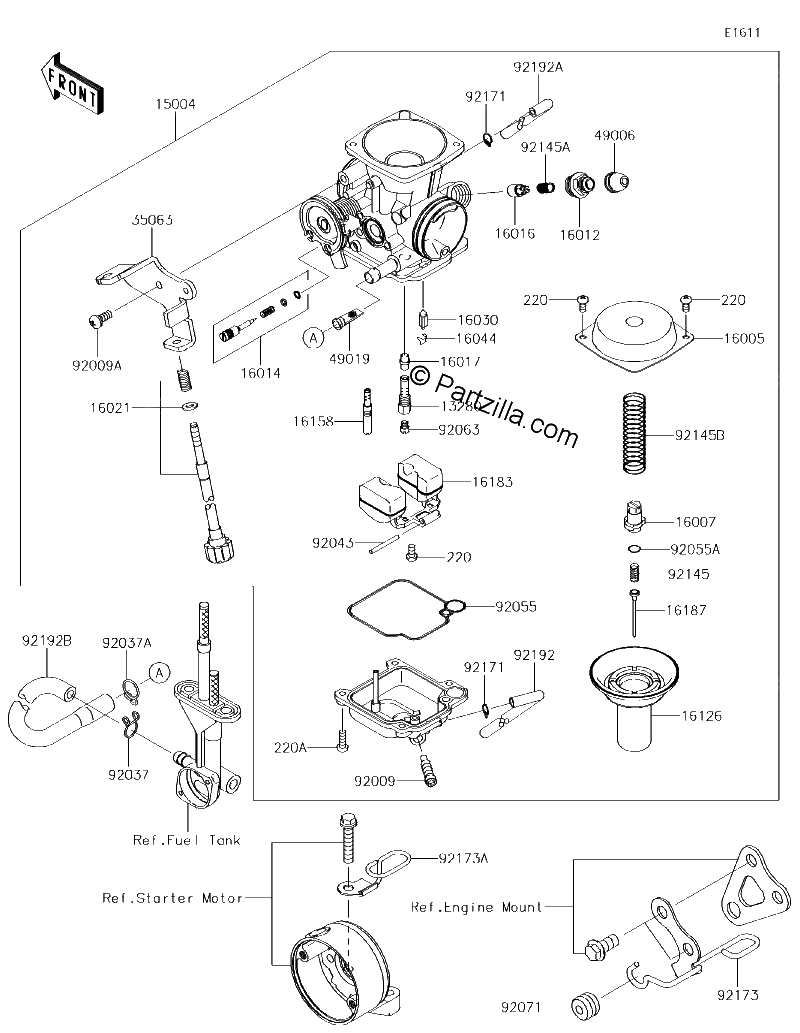

Diagrama de CARBURETOR

Repuestos

#220
220AA0408
SCREW-PAN-CROS,4X8
$0.75¢374
1
#220A
220AA0412
SCREW-PAN-CROS,4X12
$0.30¢150
1
#13280
13280-0235
HOLDER
$9.04¢4 520
1
#15004
15004-0911
CARBURETOR-ASSY
No Disponible
1
#16005
16005-0003
TOP-CHAMBER
$8.74¢4 370
1
#16007
16007-0020
SEAT-SPRING
$8.74¢4 370
1
#16012
16012-0003
CAP-STARTER PLUNGER
$11.97¢5 986
1
#16014
16014-0016
SCREW-PILOT AIR
$14.44¢7 222
1
#16016
16016-0014
PLUNGER,STARTER
$17.27¢8 637
1
#16017
16017-0017
JET-NEEDLE
$14.33¢7 165
1
#16021
16021-0022
SCREW-THROTTLE STOP
$11.75¢5 877
1
#16030
16030-0005
VALVE-FLOAT
$55.40¢27 698
1
#16044
16044-007
CLAMP,FLOAT VALVE | [CN,US]
$7.24¢3 622
1
#16126
16126-0020
VALVE
$76.27¢38 134
1
#16158
16158-0007
JET-SLOW
$91.38¢45 689
1
#16183
16183-0004
FLOAT-ASSY
$24.31¢12 156
1
#16187
16187-0573
NEEDLE-JET
No Disponible
1
#35063
35063-0684
STAY
$22.78¢11 391
1
#49006
49006-0039
BOOT
$6.43¢3 214
1
#49019
49019-1097
FILTER FUEL
$8.43¢4 215
1
#92009A
92009-1865
SCREW,PLATE
$2.12¢1 058
1
#92009
92009-1551
SCREW,DRAIN,6X0.75
$9.04¢4 520
1
#92037
92037-147
CLAMP,TUBE | [CA]
$6.72¢3 358
1
#92037A
92037-1935
CLAMP
$5.11¢2 553
1
#92043
92043-1207
PIN,FLOAT
$11.53¢5 767
1
#92055A
92055-1223
RING-O
$4.54¢2 271
1
#92055
92055-0084
RING-O,CHAMBER GASKET
$17.09¢8 545
1
#92063
92063-0020
JET-MAIN,#112
$15.75¢7 877
1
#92071
92071-0038
GROMMET
$3.76¢1 880
1
#92145B
92145-0936
SPRING
$18.86¢9 430
1
#92145A
92145-0313
SPRING,COIL
$13.18¢6 590
1
#92145
92145-0309
SPRING
$4.98¢2 490
1
#92171
92171-0494
CLAMP
$4.67¢2 335
1
#92173A
92173-1430
CLAMP
No Disponible
1
#92173
92173-1066
CLAMP
$5.11¢2 553
1
#92192A
92192-0876
TUBE
$8.56¢4 278
1
#92192
92192-0233
TUBE
$14.58¢7 291
1
#92192B
92192-1726
TUBE,TAP-ASSY-CARBURETOR
$6.15¢3 076
1
