REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

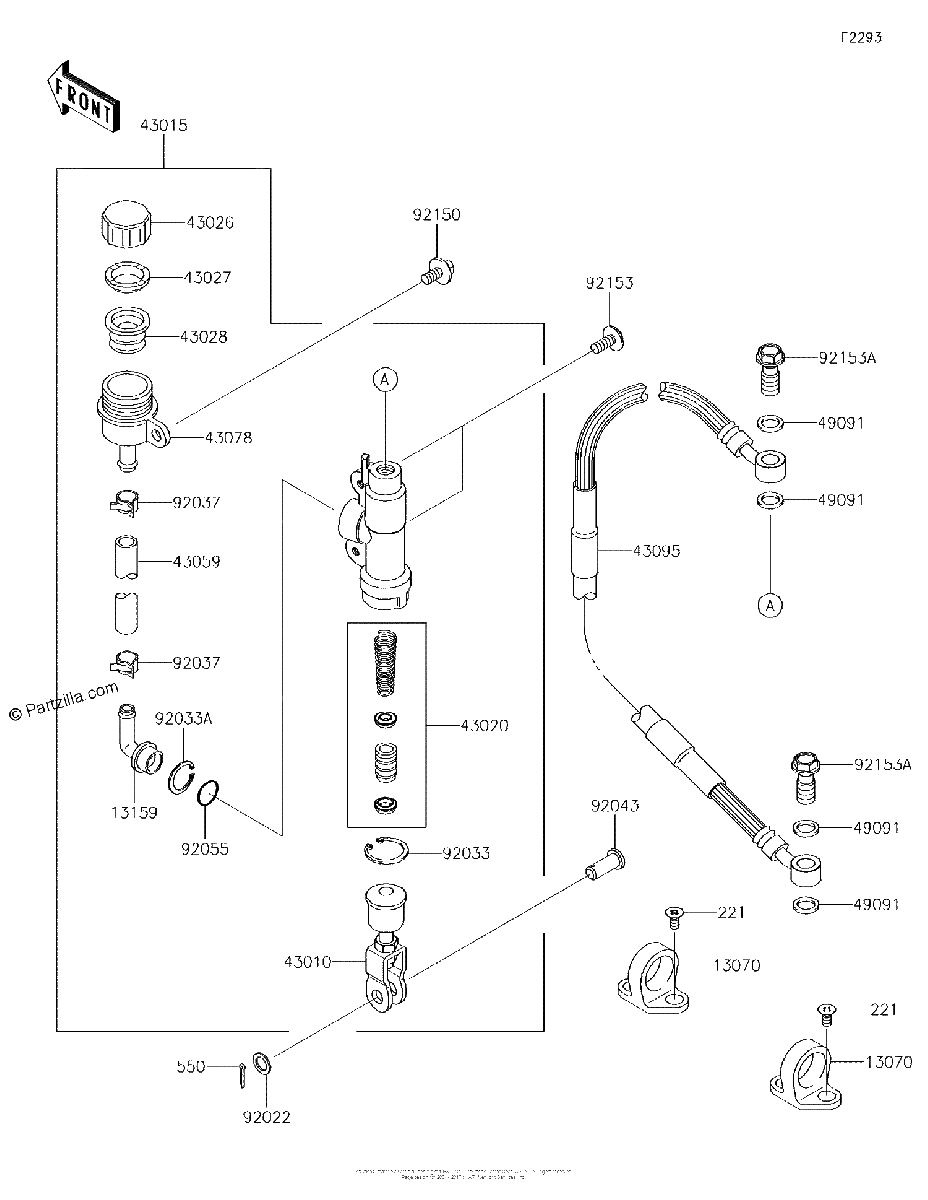

Diagrama de REAR MASTER CYLINDER

Repuestos

#221
221AA0510
SCREW-CSK-CROS,5X10
$3.64¢1 819
1
#550
550AA2015
PIN COTTER,2.0X15
$1.17¢587
1
#13070
13070-1381
GUIDE,HOSE
$8.35¢4 175
1
#13159
13159-1056
CONNECTOR
$13.95¢6 975
1
#43010
43010-1079
ROD-ASSY-BRAKE
$44.80¢22 400
1
#43015
43015-1606
CYLINDER Assembly MASTER,Rear
$270.41¢135 206
1
#43020
43020-1094
PISTON-COMP-BRAKE
$74.31¢37 156
1
#43026
43026-1058
CAP-BRAKE
$40.88¢20 438
1
#43027
43027-1052
PLATE-DIAPHRAGM
$4.54¢2 269
1
#43028
43028-1060
DIAPHRAGM
$19.13¢9 563
1
#43059
43059-1670
HOSE BRAKE,Rear MASTER CYLINDER
$25.95¢12 975
1
#43078
43078-1068
RESERVOIR
$33.96¢16 981
1
#43095
43095-0670
HOSE BRAKE,Rear
$96.08¢48 038
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$2.04¢1 019
1
#92022
92022-1028
WASHER,8.5X13X1
$3.90¢1 950
1
#92033A
92033-1186
RING-SNAP,20.5MM
$4.92¢2 463
1
#92033
92033-0079
RING SNAP,20.9X24.6X1.2
$7.74¢3 869
1
#92037
92037-1710
CLAMP
$9.83¢4 913
1
#92043
92043-0004
PIN
$11.06¢5 531
1
#92055
92055-0741
RING O,14.8X2.4
$3.67¢1 838
1
#92150
92150-1340
BOLT,6X14
$5.02¢2 512
1
#92153
92153-1021
BOLT,SOCKET,6X14
$2.46¢1 231
1
#92153A
92153-1419
BOLT,OIL,L=23
$3.89¢1 944
1
