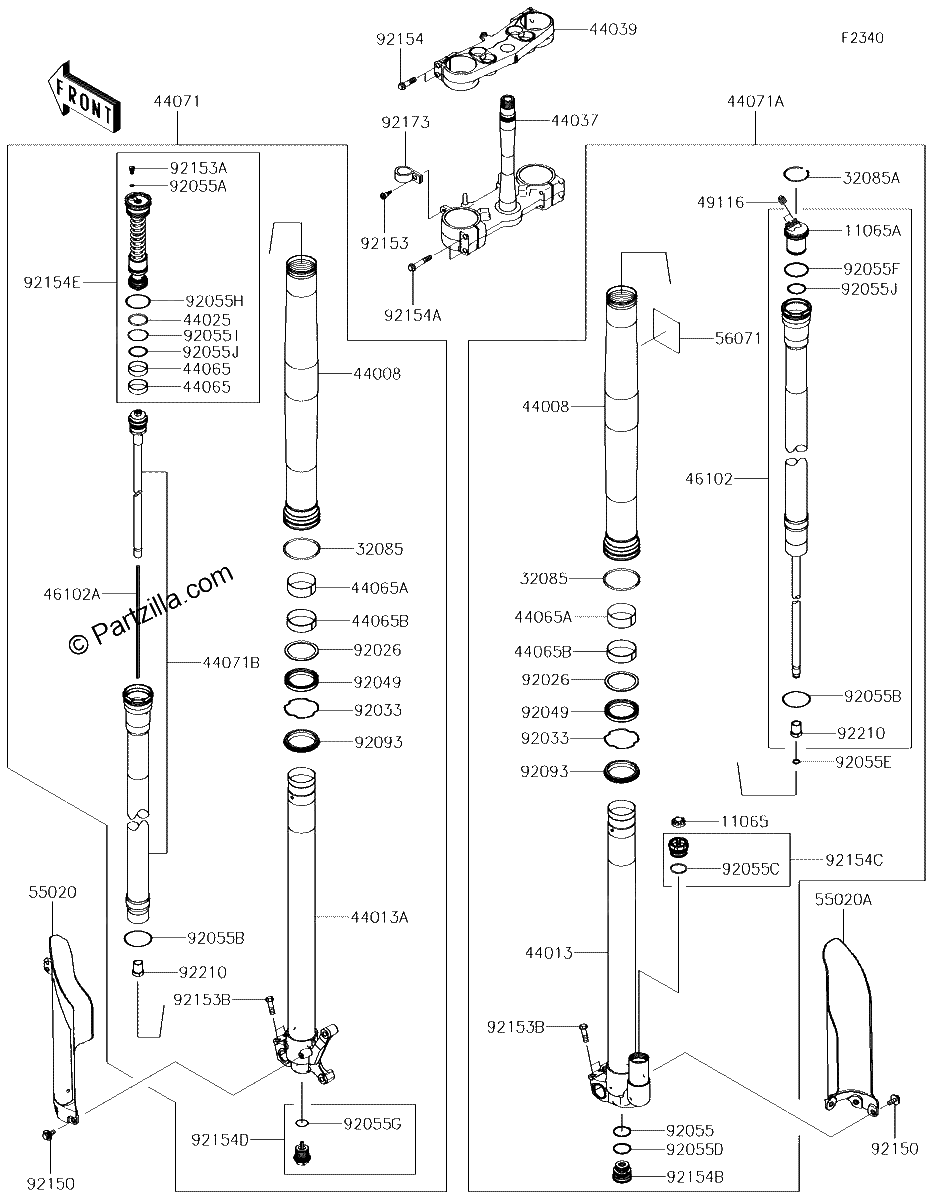

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#11065
CAP,AIR VALVE
$2.97¢1 487
#11065A
CAP,CHAMBER,G.B.GREEN
$126.25¢63 125
#32085
STOPPER,RING
$6.15¢3 075
#32085A
STOPPER
$6.19¢3 094
#44008
PIPE-FORK OUTER
$658.35¢329 175
#44013
PIPE-FORK INNER,RH
$732.88¢366 438
#44013A
PIPE-FORK INNER,LH
$732.88¢366 438
#44025
RING-FORK PISTON
$21.89¢10 944
#44037
HOLDER-FORK UNDER,F.BLACK
$779.86¢389 931
#44039
HOLDER-FORK UPPER,F.BLACK
$320.02¢160 013
#44065
BUSHING-FRONT FORK,SLIDE
$9.01¢4 506
#44065A
BUSHING-FRONT FORK
$14.89¢7 444
#44065B
BUSHING FRONT FORK
$16.09¢8 044
#44071
DAMPER-ASSY,FORK,LH,GR+BLK+BLK
$2962.65¢1 481 325
#44071B
DAMPER-ASSY,COMP
$849.88¢424 938
#44071A
DAMPER-ASSY,FORK,RH,GR+BLK+BLK
$2449.09¢1 224 544
#46102
ROD,G.B.GREEN
$1242.85¢621 425
#46102A
ROD,PUSH
$11.83¢5 913
#49116
VALVE Assembly,AIR
$1.91¢956
#55020
GUARD,FORK,Left Hand,EBONY
$66.96¢33 481
#55020A
GUARD,FORK,Right Hand,EBONY
$66.96¢33 481
#56071
LABEL WARNING
$21.45¢10 725
#92026
SPACER,SEAL
$4.39¢2 194
#92033
RING SNAP
$6.31¢3 156
#92049
SEAL OIL
$37.02¢18 513
#92055G
RING-O
$1.69¢844
#92055H
RING-O
$5.79¢2 894
#92055I
RING-O
$4.96¢2 481
#92055J
RING-O
$5.85¢2 925
#92055E
RING O
$1.52¢763
#92055F
RING-O
$5.85¢2 925
#92055D
RING-O
$1.69¢844
#92055C
RING-O
$3.71¢1 856
#92055
RING-O
$4.16¢2 081
#92055A
RING O
$2.73¢1 363
#92055B
RING O
$3.83¢1 913
#92093
SEAL
$22.75¢11 375
#92150
BOLT,6X14
$5.02¢2 512
#92153B
BOLT,FLANGED,8X40
$4.84¢2 419
#92153A
BOLT,PLUG
$3.17¢1 588
#92153
BOLT,FLANGED
$4.11¢2 056
#92154A
BOLT
$3.75¢1 875
#92154B
BOLT,SEALING
$36.83¢18 413
#92154C
BOLT
$79.21¢39 606
#92154D
BOLT,CNT
$52.46¢26 231
#92154E
BOLT,G.B.GREEN
$490.46¢245 231
#92154
BOLT
$4.60¢2 300
#92173
CLAMP
$17.06¢8 531
#92210
NUT,LOCK
$16.85¢8 425
