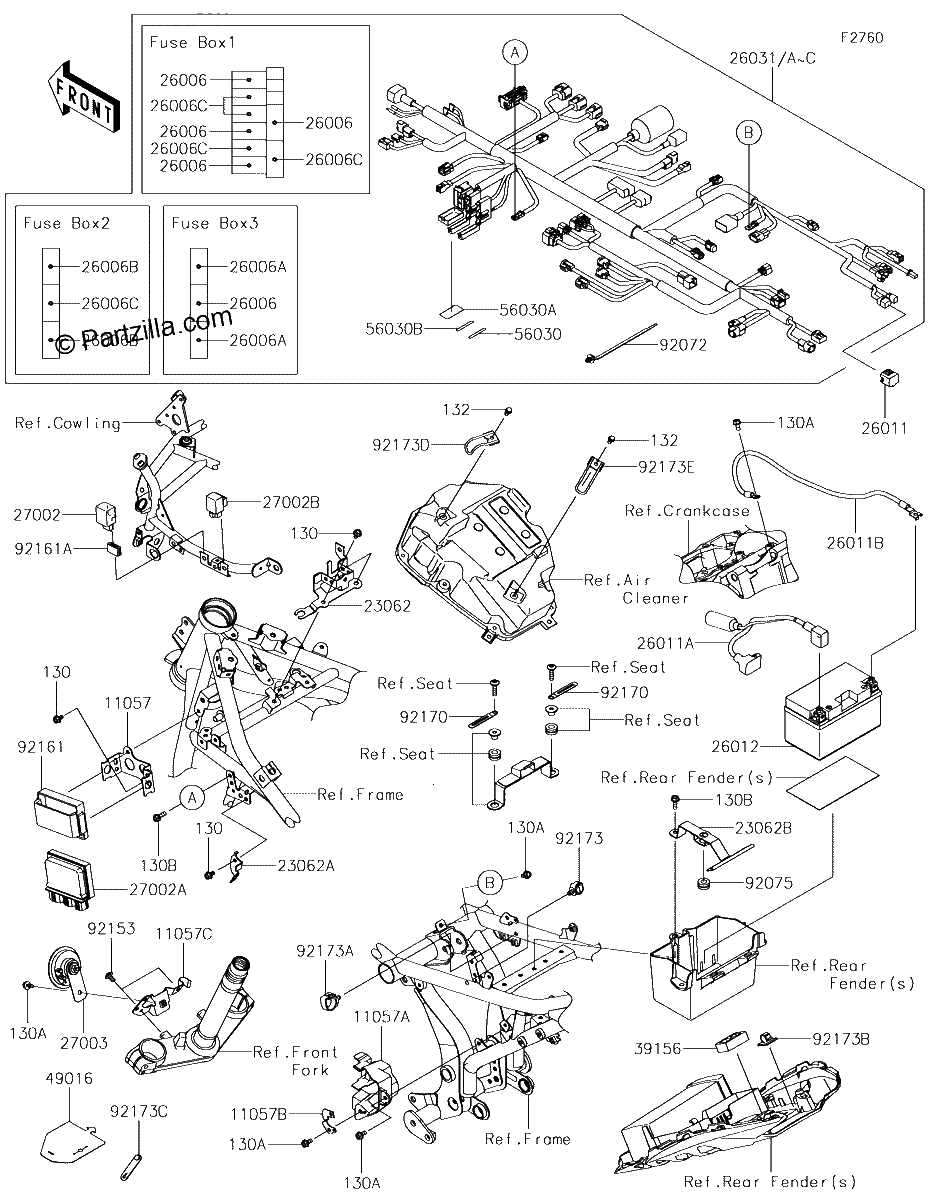

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X10
$1.26¢631
#130A
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
#130a
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
#130B
BOLT-FLANGED,6X18
$1.52¢763
#130b
BOLT-FLANGED,6X18
$1.52¢763
#132
BOLT-FLANGED-SMALL,6X10
$1.66¢831
#11057
BRACKET,RELAY BOX
$8.85¢4 425
#11057A
BRACKET,MAGNETIC SW.
$9.11¢4 556
#11057B
BRACKET,COUPLER
$2.58¢1 288
#11057C
BRACKET,HORN
$11.33¢5 663
#23062
BRACKET-COMP,VD SENSOR
$21.63¢10 813
#23062A
BRACKET-COMP,FUSE BOX
$2.90¢1 450
#23062B
BRACKET-COMP,BATTERY
$12.29¢6 144
#26006
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
#26006A
FUSE,MINI BLADE,25A,NATURAL
$6.69¢3 344
#26006B
FUSE,MINI BLADE,5A,TAN
$5.06¢2 531
#26006C
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
#26011
WIRE-LEAD,CONNECTOR COVER
$15.71¢7 856
#26011B
WIRE-LEAD,BATTERY(-)
$36.45¢18 225
#26011A
WIRE-LEAD,BATTERY(+)
$54.76¢27 381
#26012
BATTERY,YTZ10S,12V 8.6AH
No Disponible
#26031
HARNESS,MAIN
$874.63¢437 313
#26031
HARNESS,MAIN
No Disponible
#26031
HARNESS,MAIN
$874.63¢437 313
#26031
HARNESS,MAIN
$874.63¢437 313
#27002A
RELAY-ASSY,BOX
$162.96¢81 481
#27002B
RELAY-ASSY
$51.68¢25 838
#27002
RELAY Assembly,SIGNAL LAMP
$65.61¢32 806
#27003
HORN
$82.71¢41 356
#39156
PAD,CONNECTOR
$4.60¢2 300
#49016
COVER-SEAL
$6.59¢3 294
#56030A
LABEL,FUSE BOX1
$4.59¢2 294
#56030B
LABEL,FUSE BOX2
$3.10¢1 550
#56030
LABEL,FUSE BOX3
$4.59¢2 294
#92072
BAND
$3.70¢1 850
#92075
DAMPER
$1.63¢813
#92153
BOLT,SOCKET,6X12
$1.79¢894
#92161A
DAMPER,15X25X8.5
$1.95¢975
#92161
DAMPER,RELAY BOX
$11.73¢5 863
#92170
CLAMP
$4.29¢2 144
#92173A
CLAMP
$2.75¢1 375
#92173B
CLAMP,DRAIN
$6.49¢3 244
#92173C
CLAMP,RUBBER PLATE
$4.16¢2 081
#92173D
CLAMP,A/C CASE,FR
$5.78¢2 888
#92173
CLAMP,12MM DIA.
$5.01¢2 506
#92173E
CLAMP,A/C CASE,RR
$5.78¢2 888
