CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

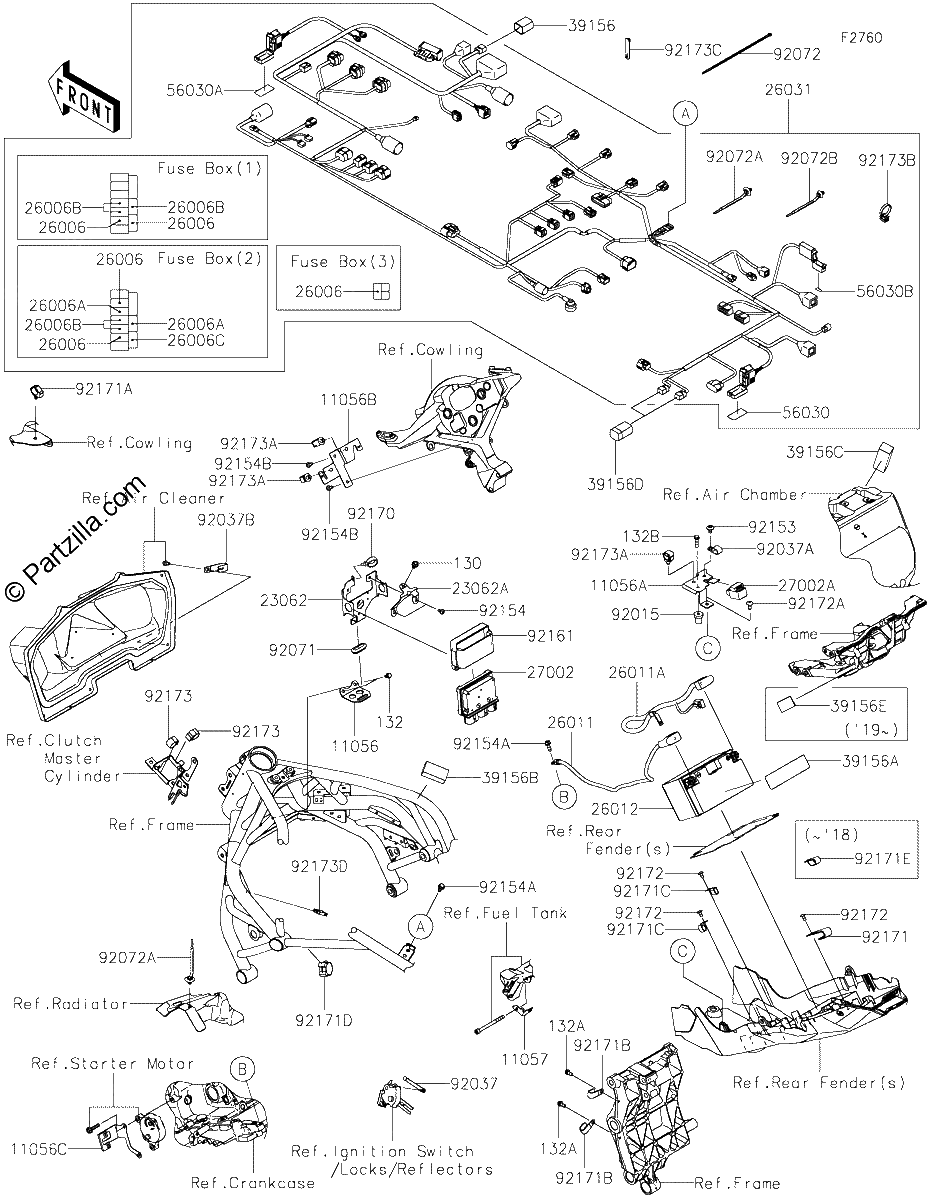

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.16¢581
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.53¢765
1
#132A
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.16¢581
1
#132a
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.16¢581
1
#132B
132BA0622
BOLT FLANGED SMALL,6X22
$1.79¢897
1
#132b
132BA0622
BOLT FLANGED SMALL,6X22
$1.79¢897
1
#11056
11056-7100
BRACKET,RELAY BRKT.,LWR
$136.86¢68 431
1
#11056A
11056-7175
BRACKET,RR WHEEL SPEED SENSOR
$274.57¢137 287
1
#11056B
11056-7378
BRACKET,HARNESS CONNECTOR
$76.05¢38 025
1
#11056C
11056-7543
BRACKET,STARTER
$10.10¢5 048
1
#11057
11057-0040
BRACKET,FUEL PUMP CONNECTOR
$4.97¢2 484
1
#23062
23062-0844
BRACKET COMP,RELAY BOX
$594.83¢297 413
1
#23062A
23062-0845
BRACKET-COMP,RELAY BRKT.,UPP
$411.46¢205 729
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006B
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.15¢3 076
1
#26006C
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26011
26011-0908
WIRE LEAD,BATTERY( )
$54.49¢27 244
1
#26011A
26011-0909
WIRE LEAD,BATTERY(+)
$75.08¢37 542
1
#26012
26012-0564
BATTERY,YTZ10S,12V 8.6AH
No Disponible
1
#26031
26031-2190
HARNESS,MAIN
$2957.14¢1 478 572
1
#27002
27002-0042
RELAY-ASSY
$149.93¢74 963
1
#27002A
27002-1062
RELAY-ASSY
$47.54¢23 771
1
#39156
39156-1886
PAD,DIAG. CONNECTOR
$1.93¢966
1
#39156E
39156-2495
PAD,30X15X1
$0.95¢477
1
#39156A
39156-1895
PAD,30X115X0.36
$13.98¢6 992
1
#39156B
39156-1940
PAD,25X50X20
$1.93¢966
1
#39156C
39156-1945
PAD,25X65X20
$1.93¢966
1
#39156D
39156-2112
PAD,DIAG CONNECTOR
$14.52¢7 262
1
#56030A
56030-0903
LABEL,FUSE BOX 1
$2.85¢1 426
1
#56030B
56030-0906
LABEL,FUSE BOX 3
$2.85¢1 426
1
#56030
56030-0902
LABEL,FUSE BOX 2
$2.85¢1 426
1
#92015
92015-1692
NUT,RUBBER,6MM
$6.72¢3 358
1
#92037A
92037-1608
CLAMP
$7.41¢3 703
1
#92037B
92037-2014
CLAMP,CABLE,STEEL SHEET
$1.83¢914
1
#92037
92037-1163
CLAMP,SPEED,L=58
$5.91¢2 956
1
#92071
92071-1187
GROMMET
$4.53¢2 266
1
#92072A
92072-1392
BAND
$3.40¢1 702
1
#92072B
92072-1414
BAND
$3.40¢1 702
1
#92072
92072-0782
BAND,202X3.6
$1.81¢903
1
#92153
92153-0410
BOLT,SOCKET,6X10
$2.37¢1 185
1
#92154A
92154-0551
BOLT,FLANGED,6X16
$1.55¢776
1
#92154B
92154-0917
BOLT,SOCKET,5X12
$4.30¢2 151
1
#92154
92154-0211
BOLT,SOCKET,5X10
$1.84¢920
1
#92161
92161-0203
DAMPER,RELAY BOX
$10.79¢5 394
1
#92170
92170-1067
CLAMP
$6.82¢3 410
1
#92171A
92171-0316
CLAMP,BRAKE HOSE
$3.51¢1 754
1
#92171B
92171-0739
CLAMP
$5.32¢2 662
1
#92171C
92171-0766
CLAMP
$5.32¢2 662
1
#92171D
92171-1559
CLAMP,25MM DIA.
$5.81¢2 904
1
#92171E
92171-1597
CLAMP
$10.10¢5 048
1
#92171
92171-0305
CLAMP
$7.67¢3 835
1
#92172A
92172-0284
SCREW,6X16
$1.08¢541
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.24¢621
1
#92173A
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92173B
92173-0791
CLAMP
$11.56¢5 779
1
#92173C
92173-1229
CLAMP,RUBBER PLATE
$3.83¢1 915
1
#92173
92173-0127
CLAMP,CLIP
$15.92¢7 958
1
#92173D
92173-1513
CLAMP
$3.54¢1 771
1
