REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

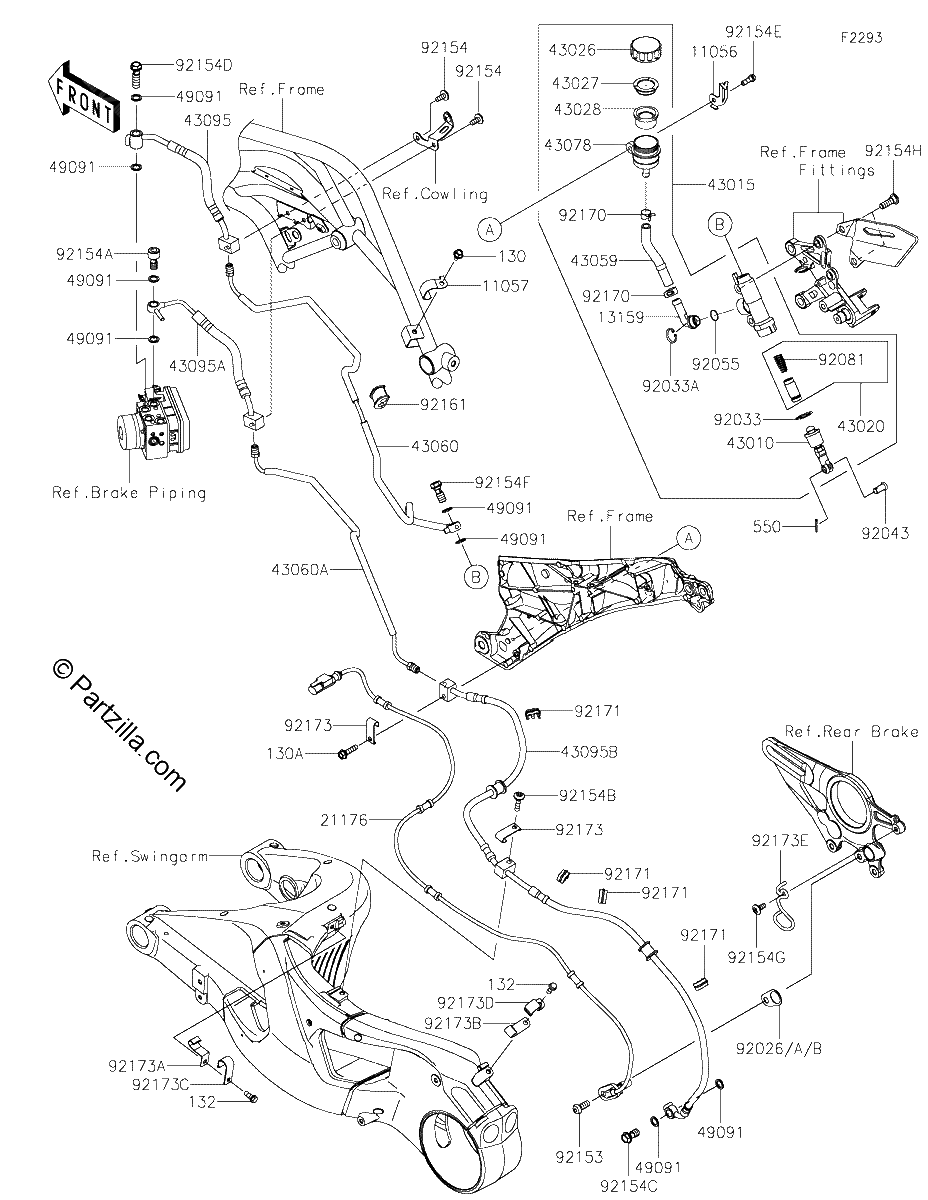

Diagrama de REAR MASTER CYLINDER

Repuestos

#130
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.30¢1 150
1
#130a
130BB0625
BOLT-FLANGED,6X25
$2.40¢1 200
1
#130A
130BB0625
BOLT-FLANGED,6X25
$2.40¢1 200
1
#132
132BB0614
BOLT FLANGED SMALL,6X14
$2.30¢1 150
1
#550
550AA2015
PIN COTTER,2.0X15
$1.17¢587
1
#11056
11056-7024
BRACKET,RESERVOIR TANK CAP
$6.13¢3 063
1
#11057
11057-0419
BRACKET,BRAKE PIPE
$8.82¢4 413
1
#13159
13159-1056
CONNECTOR
$13.95¢6 975
1
#21176
21176-0793
SENSOR,WHEEL SPEED,Rear
$138.35¢69 175
1
#43010
43010-0016
ROD-ASSY-BRAKE
$35.21¢17 606
1
#43015
43015-0618
CYLINDER Assembly MASTER,Rear
$297.11¢148 556
1
#43020
43020-1057
PISTON-COMP-BRAKE
$74.31¢37 156
1
#43026
43026-0009
CAP-BRAKE
$45.41¢22 706
1
#43027
43027-1053
PLATE DIAPHRAGM
$5.81¢2 906
1
#43028
43028-1065
DIAPHRAGM
$20.89¢10 444
1
#43059
43059-1548
HOSE-BRAKE,M/CYLINDER
$20.89¢10 444
1
#43060
43060-0321
PIPE BRAKE,Rear M/C
$195.05¢97 525
1
#43060A
43060-0322
PIPE BRAKE,Rear CALIPER
$86.27¢43 137
1
#43078
43078-0575
RESERVOIR
$110.44¢55 219
1
#43095
43095-0856
HOSE-BRAKE,HU-RR M/C PIPE
$142.49¢71 244
1
#43095A
43095-0857
HOSE-BRAKE,HU-RR CALIPER PIPE
$147.69¢73 844
1
#43095B
43095-1447
HOSE-BRAKE,RR CALIPER
$496.26¢248 131
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$2.04¢1 019
1
#92026
92026-0791
SPACER,RR SENSOR,T1.5
$20.46¢10 231
1
#92026
92026-0789
SPACER,RR SENSOR,T0.5
$13.75¢6 875
1
#92026
92026-0790
SPACER,RR SENSOR,T1.0
$19.06¢9 531
1
#92033
92033-0079
RING SNAP,20.9X24.6X1.2
$7.74¢3 869
1
#92033A
92033-1186
RING-SNAP,20.5MM
$4.92¢2 463
1
#92043
92043-0104
PIN,8X17
$3.89¢1 944
1
#92055
92055-0741
RING O,14.8X2.4
$3.67¢1 838
1
#92081
92081-1737
SPRING,MASTER CYLINDER
$13.69¢6 844
1
#92153
92153-0912
BOLT,SOCKET,8X20
$2.41¢1 206
1
#92154E
92154-1564
BOLT,SOCKET,6X18
$1.55¢775
1
#92154F
92154-1712
BOLT,BANJO,10X23
$4.16¢2 081
1
#92154D
92154-1555
BOLT,BANJO,10X32.3
$36.79¢18 394
1
#92154C
92154-1554
BOLT,BANJO,10X19
$25.75¢12 875
1
#92154G
92154-1735
BOLT,SOCKET,6X14
$2.11¢1 056
1
#92154H
92154-1806
BOLT,SOCKET,8X25
$5.14¢2 569
1
#92154A
92154-1121
BOLT,BANJO,10X20.8
$28.88¢14 438
1
#92154B
92154-1532
BOLT,SOCKET,6X25
$2.29¢1 144
1
#92154
92154-0745
BOLT,SOCKET,6X14
$2.16¢1 081
1
#92161
92161-1894
DAMPER,BRAKE PIPE
$17.57¢8 788
1
#92170
92170-1091
CLAMP,HOSE
$4.96¢2 481
1
#92171
92171-0921
CLAMP
$4.84¢2 419
1
#92173A
92173-1379
CLAMP,SWING ARM,Front,Lower
$6.13¢3 063
1
#92173B
92173-1380
CLAMP,SWING ARM,Rear,Lower
$5.60¢2 800
1
#92173C
92173-1382
CLAMP,SWING ARM,Front,Upper
$4.92¢2 463
1
#92173D
92173-1383
CLAMP,SWING ARM,Rear,Upper
$6.89¢3 444
1
#92173
92173-1378
CLAMP,SWING ARM,MID
$5.60¢2 800
1
#92173E
92173-1384
CLAMP,Rear BRAKE HOLDER
$22.71¢11 356
1
