CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

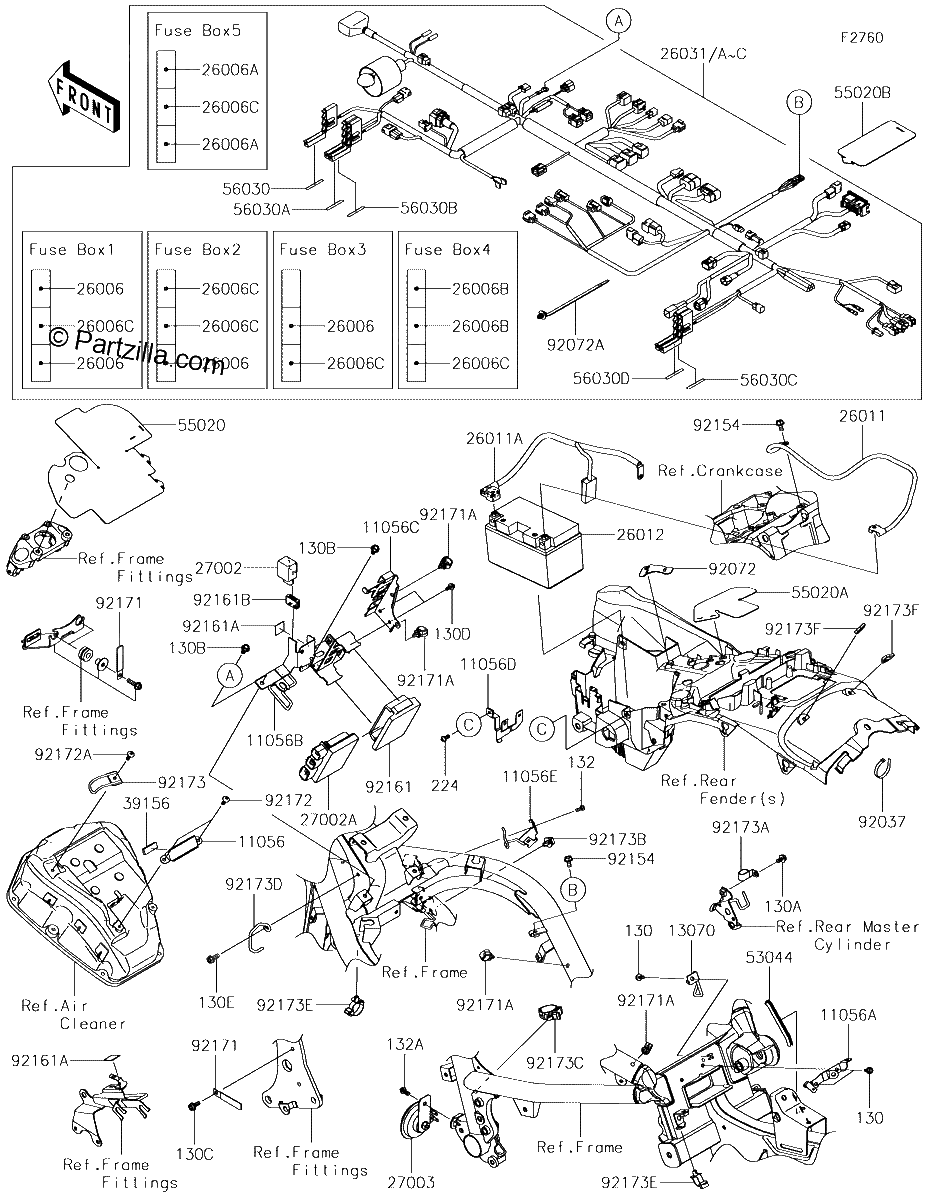

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130AA0510
BOLT-FLANGED,5X10
$1.03¢518
1
#130B
130AA0612
BOLT FLANGED,6X12
$0.75¢374
1
#130b
130AA0612
BOLT FLANGED,6X12
$0.75¢374
1
#130a
130AA0610
BOLT-FLANGED,6X10
$0.57¢288
1
#130A
130AA0610
BOLT-FLANGED,6X10
$0.57¢288
1
#130C
130AA0614
BOLT FLANGED,6X14
$0.60¢299
1
#130c
130AA0614
BOLT FLANGED,6X14
$0.60¢299
1
#130e
130BB0616
BOLT FLANGED,6X16
$1.78¢891
1
#130E
130BB0616
BOLT FLANGED,6X16
$1.78¢891
1
#130D
130BA0510
BOLT FLANGED,5X10
$1.53¢765
1
#130d
130BA0510
BOLT FLANGED,5X10
$1.53¢765
1
#132
132BA0510
BOLT-FLANGED-SMALL,5X10
$1.59¢793
1
#132a
132BB0612
BOLT-FLANGED-SMALL,6X12
$1.78¢891
1
#132A
132BB0612
BOLT-FLANGED-SMALL,6X12
$1.78¢891
1
#224
224AA0512
SCREW PAN WP CROS,5X12
$1.44¢719
1
#11056
11056-4283
BRACKET,ECU
$3.38¢1 691
1
#11056A
11056-4284
BRACKET,CNT FRAME
$7.80¢3 899
1
#11056E
11056-4315
BRACKET,CONNECTOR,SENSOR
$10.63¢5 313
1
#11056D
11056-4295
BRACKET,CONNECTOR,ABS
$7.80¢3 899
1
#11056C
11056-4293
BRACKET,CONNECTOR,IG. SW.,ETC.
$14.46¢7 228
1
#11056B
11056-4287
BRACKET,RELAY-ASSY
$33.23¢16 617
1
#13070
13070-0800
GUIDE,HARNESS
$7.72¢3 858
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006C
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26006B
26006-1077
FUSE,MINI BLADE,5A,TAN
$4.66¢2 329
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.15¢3 076
1
#26011
26011-0711
WIRE LEAD,BATTERY( )
$40.65¢20 326
1
#26011A
26011-0870
WIRE LEAD,BATTERY(+)
$73.93¢36 967
1
#26012
26012-0689
BATTERY,YTZ10,12V 8.6AH
No Disponible
1
#26031
26031-2305
HARNESS,MAIN
$1807.71¢903 854
1
#26031
26031-2281
HARNESS,MAIN
$1824.51¢912 255
1
#26031
26031-2307
HARNESS,MAIN
$1807.71¢903 854
1
#26031
26031-2279
HARNESS,MAIN
No Disponible
1
#27002A
27002-0025
RELAY-ASSY,BOX
$149.93¢74 963
1
#27002
27002-0006
RELAY Assembly,SIGNAL LAMP
$60.36¢30 182
1
#27003
27003-0111
HORN
$76.27¢38 134
1
#39156
39156-0927
PAD,10X30X4
$0.91¢454
1
#53044
53044-0556
TRIM,L=85
$11.45¢5 727
1
#55020A
55020-1834
GUARD,MG. SWITCH
$35.93¢17 963
1
#55020B
55020-2194
GUARD,HARNESS
$9.58¢4 790
1
#55020
55020-1833
GUARD,IG. SWITCH
$52.04¢26 019
1
#56030C
56030-0887
LABEL,FUSE BOX4
$2.85¢1 426
1
#56030A
56030-0885
LABEL,FUSE BOX2
$2.85¢1 426
1
#56030B
56030-0886
LABEL,FUSE BOX3
$2.85¢1 426
1
#56030D
56030-0888
LABEL,FUSE BOX5
$2.85¢1 426
1
#56030
56030-0884
LABEL,FUSE BOX1
$2.85¢1 426
1
#92037
92037-1173
CLAMP
$3.09¢1 547
1
#92072A
92072-1414
BAND
$3.40¢1 702
1
#92072
92072-0768
BAND,LEAD WIRE
$2.02¢1 012
1
#92154
92154-1050
BOLT,FLANGED,6X12
$1.81¢903
1
#92161A
92161-1431
DAMPER,20X20,T1.0
$0.91¢454
1
#92161B
92161-1443
DAMPER,15X25X8.5
$1.79¢897
1
#92161
92161-0203
DAMPER,RELAY BOX
$10.79¢5 394
1
#92171A
92171-1415
CLAMP,13MM DIA.
$1.83¢914
1
#92171
92171-0652
CLAMP,L=60
$2.22¢1 110
1
#92172A
92172-0742
SCREW,TAPPING,5X16
$1.71¢857
1
#92172
92172-0238
SCREW,TAPPING,5X16
$1.00¢500
1
#92173A
92173-0978
CLAMP
$5.32¢2 662
1
#92173B
92173-1022
CLAMP,CABLE CLIP
$1.49¢747
1
#92173C
92173-1062
CLAMP,CABLE,28MM
$3.52¢1 759
1
#92173D
92173-1334
CLAMP,WIRE,HEAD PIPE,Left Hand
$3.83¢1 915
1
#92173E
92173-1336
CLAMP,CABLE STRAP
$2.21¢1 104
1
#92173
92173-0889
CLAMP,AIR CLEANER
$5.32¢2 662
1
#92173F
92173-1429
CLAMP,CLIP,TAIL LAMP,ETC
$1.43¢713
1
