COWLING OUTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

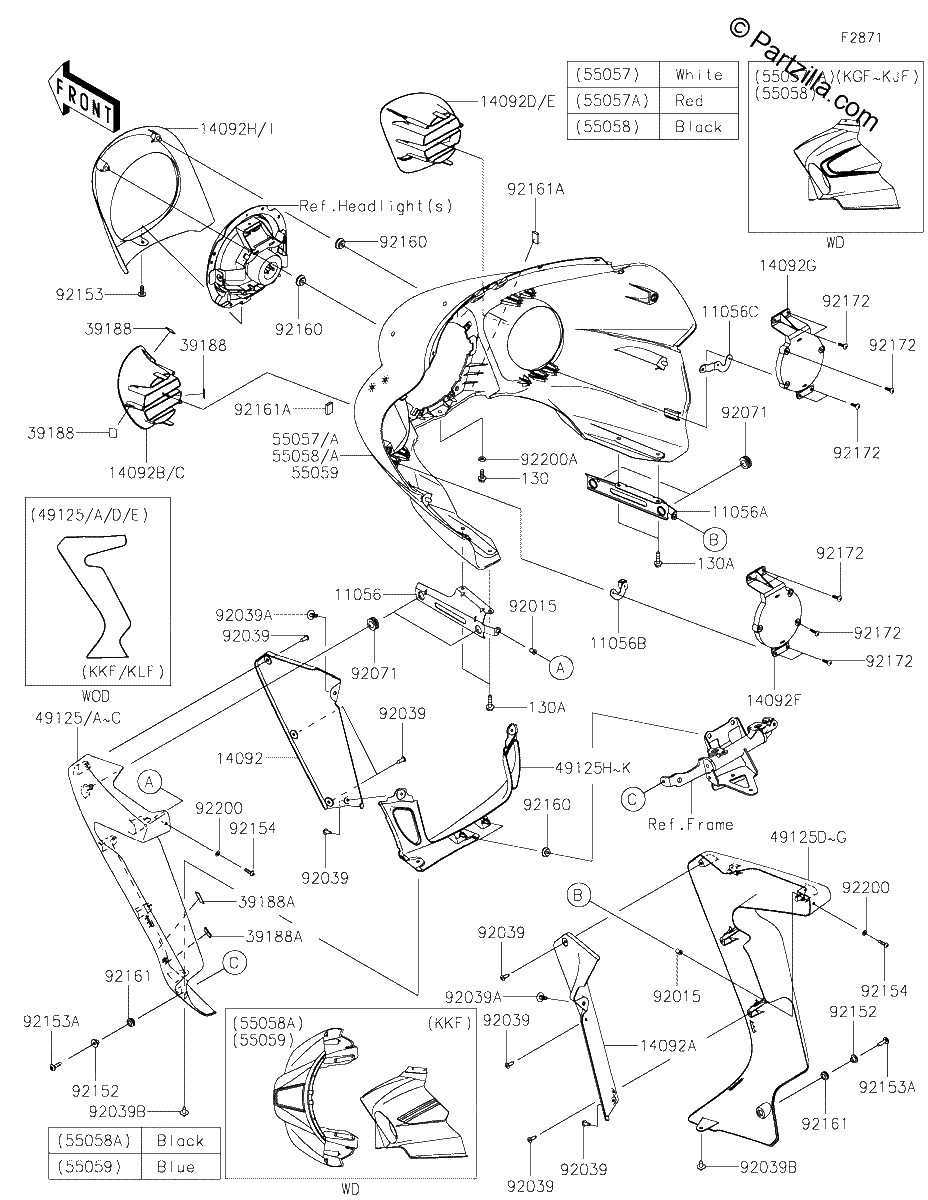

Diagrama de COWLING OUTER

Repuestos

#130
130AA0616
BOLT FLANGED,6X16
$0.61¢305
1
#130A
130BB0625
BOLT-FLANGED,6X25
$2.21¢1 104
1
#11056
11056-0344
BRACKET,SHROUD,LH
$18.07¢9 033
1
#11056A
11056-0345
BRACKET,SHROUD,RH
$18.07¢9 033
1
#11056B
11056-1145
BRACKET,SUB LAMP,Left Hand,Lower
$6.21¢3 105
1
#11056C
11056-1146
BRACKET,SUB LAMP,RH,LWR
$6.21¢3 105
1
#14092F
14092-0211
COVER,SUB LAMP,INNNER,Left Hand
$32.91¢16 457
1
#14092
14092-0204
COVER,SHROUD,INNNER,LH
$37.20¢18 601
1
#14092A
14092-0205
COVER,SHROUD,INNNER,RH
$37.20¢18 601
1
#14092B
14092-0209-660
COVER,SUB LAMP,Left Hand,M S BLACK
$141.08¢70 541
1
#14092B
14092-0209-H8
COVER,SUB LAMP,Left Hand,EBONY
$138.69¢69 345
1
#14092D
14092-0210-660
COVER,SUB LAMP,Right Hand,M S BLACK
$141.08¢70 541
1
#14092D
14092-0210-H8
COVER,SUB LAMP,RH,EBONY
$138.69¢69 345
1
#14092G
14092-0212
COVER,SUB LAMP,INNNER,Right Hand
$32.91¢16 457
1
#14092H
14092-0770-660
COVER,HEAD LAMP,M S BLACK
$269.56¢134 780
1
#14092H
14092-0770-H8
COVER,HEAD LAMP,EBONY
$256.90¢128 449
1
#39188
39188-0552
TAPE
$3.51¢1 754
1
#39188A
39188-0553
TAPE
$3.36¢1 679
1
#49125H
49125-0065-667
SHROUD,Lower,CNT,P C WHITE
$214.74¢107 370
1
#49125H
49125-0065-L1
SHROUD,Lower,CNT,C C RED
$214.74¢107 370
1
#49125H
49125-0065-25U
SHROUD,Lower,CNT,C I BLUE
$232.07¢116 035
1
#49125H
49125-0065-660
SHROUD,Lower,CNT,M S BLACK
$204.90¢102 448
1
#49125D
49125-0064-L1
SHROUD,OUTER,Right Hand,C C RED
$224.85¢112 424
1
#49125D
49125-0064-667
SHROUD,OUTER,RH,P.C.WHITE
$224.85¢112 424
1
#49125
49125-0063-25U
SHROUD,OUTER,Left Hand,C I BLUE
$205.10¢102 551
1
#49125
49125-0063-660
SHROUD,OUTER,Left Hand,M S BLACK
$214.49¢107 243
1
#49125
49125-0063-667
SHROUD,OUTER,Left Hand,P C WHITE
$224.85¢112 424
1
#49125
49125-0063-L1
SHROUD,OUTER,Left Hand,C C RED
$224.85¢112 424
1
#49125D
49125-0064-25U
SHROUD,OUTER,Right Hand,C I BLUE
$205.10¢102 551
1
#49125D
49125-0064-660
SHROUD,OUTER,Right Hand,M S BLACK
$214.49¢107 243
1
#55057
55057-5101-667
COWLING,Upper,OUTER,P C WHITE
$2497.22¢1 248 613
1
#55057
55057-5300-L1
COWLING,Upper,OUTER,C C RED
$2497.22¢1 248 613
1
#55058
55058-5010-660
COWLING,Upper,OUTER,M S BLACK
$2449.98¢1 224 991
1
#55058
55058-5334-660
COWLING,Upper,OUTER,M S BLACK
$2501.02¢1 250 510
1
#55059
55059-5081-25U
COWLING,Upper,OUTER,C I BLUE
$2521.90¢1 260 952
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92039A
92039-0086
RIVET
$5.01¢2 507
1
#92039
92039-0068
RIVET
$2.51¢1 254
1
#92039B
92039-1289
RIVET
$2.37¢1 185
1
#92071
92071-1131
GROMMET
$7.11¢3 553
1
#92152
92152-0295
COLLAR
$5.12¢2 559
1
#92153
92153-0817
BOLT,SOCKET,6X16
$1.87¢937
1
#92153A
92153-1356
BOLT,SOCKET,6X22
$1.87¢937
1
#92154
92154-0210
BOLT,SOCKET,5X20
$1.84¢920
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161
92161-0266
DAMPER
$1.59¢793
1
#92161A
92161-0717
DAMPER
$0.93¢466
1
#92172
92172-0382
SCREW,TAPPING,5X20
$2.17¢1 087
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
#92200A
92200-0511
WASHER,6.5X12X2
$2.43¢1 213
1
