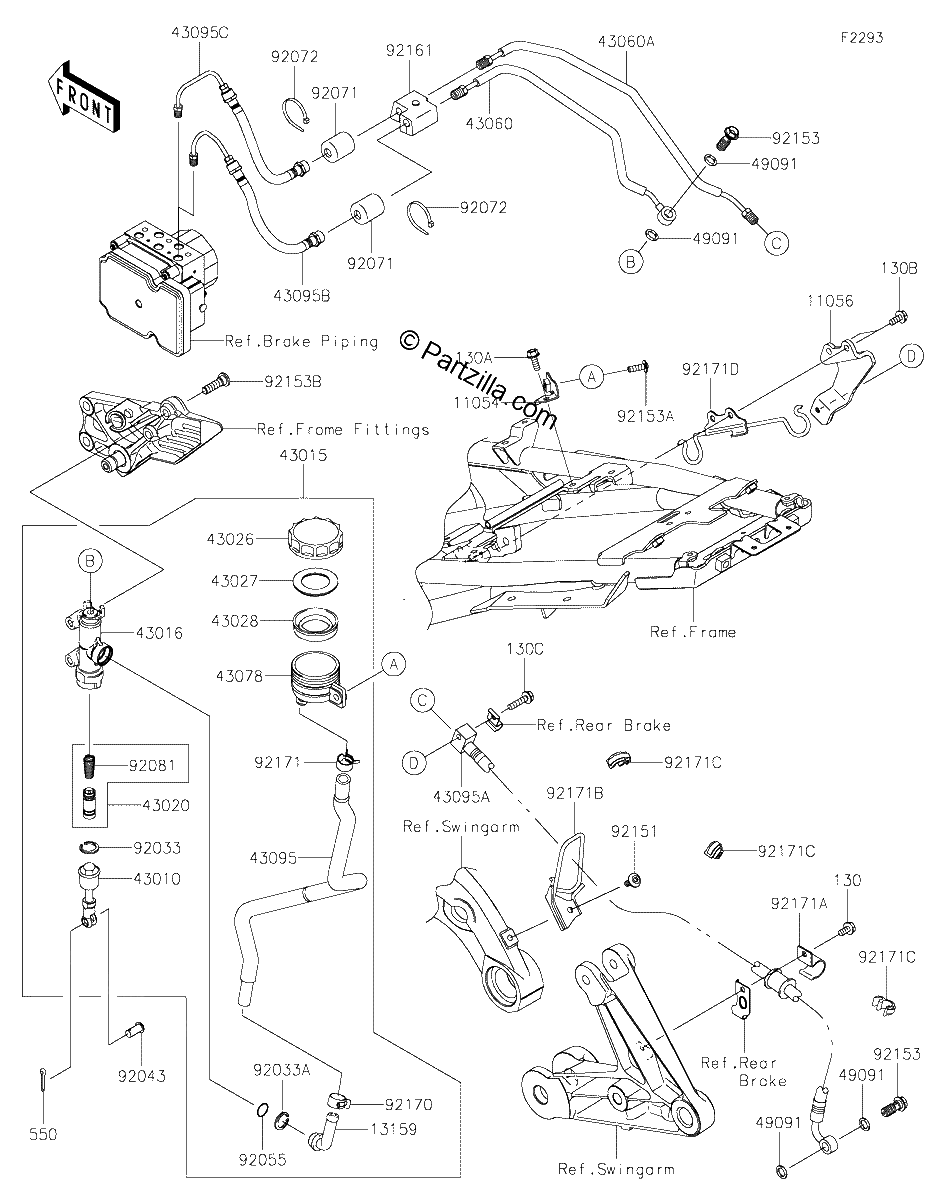

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
#130A
BOLT FLANGED,6X16
$1.26¢631
#130a
BOLT FLANGED,6X16
$1.26¢631
#130B
BOLT FLANGED,6X14
$2.30¢1 150
#130b
BOLT FLANGED,6X14
$2.30¢1 150
#130c
BOLT-FLANGED,6X25
$2.40¢1 200
#130C
BOLT-FLANGED,6X25
$2.40¢1 200
#550
PIN COTTER,2.0X15
$1.17¢587
#11054
BRACKET,RESERVOIR TANK,RR
$8.91¢4 456
#11056
BRACKET,HOSE JOINT,Rear
$28.31¢14 156
#13159
CONNECTOR
$13.95¢6 975
#43010
ROD Assembly BRAKE
$86.27¢43 137
#43015
CYLINDER-ASSY-MASTER,RR
$524.49¢262 244
#43016
CYLINDER-MASTER,RR
$248.39¢124 194
#43020
PISTON-COMP-BRAKE
$74.31¢37 156
#43026
CAP BRAKE
$38.94¢19 469
#43027
PLATE DIAPHRAGM
$5.26¢2 631
#43028
DIAPHRAGM,MASTER CYLINDER
$18.76¢9 381
#43060
PIPE-BRAKE,HU-RR M/CYLINDER
$103.59¢51 794
#43060A
PIPE BRAKE,HU Rear CALIPER,JNT.
$61.08¢30 538
#43078
RESERVOIR,RR MASTER CYLINDER
$33.96¢16 981
#43095C
HOSE BRAKE,HU Rear CALIPER
$140.90¢70 450
#43095B
HOSE BRAKE,HU Rear M/CYLINDER
$140.90¢70 450
#43095A
HOSE BRAKE,HU Rear CALIPER
$150.20¢75 100
#43095
HOSE-BRAKE,RR,MASTER CYLINDER
$35.75¢17 875
#49091
WASHER-SEAL,10.1X14.5X1.5
$2.04¢1 019
#92033A
RING-SNAP,20.5MM
$4.92¢2 463
#92033
RING SNAP,20.9X24.6X1.2
$7.74¢3 869
#92043
PIN,8X17
$3.89¢1 944
#92055
RING O,14.8X2.4
$3.67¢1 838
#92071
GROMMET
$6.63¢3 313
#92072
BAND,L=148
$3.90¢1 950
#92081
SPRING,MASTER CYLINDER
$13.69¢6 844
#92151
BOLT,SOCKET,6X14
$1.63¢813
#92153B
BOLT,SOCKET,8X30
$3.89¢1 944
#92153A
BOLT,6X18
$2.46¢1 231
#92153
BOLT,OIL,L=23
$5.41¢2 706
#92161
DAMPER,HOSE CLAMP
$13.38¢6 688
#92170
CLAMP,HOSE
$4.96¢2 481
#92171
CLAMP,HOSE
$6.51¢3 256
#92171A
CLAMP,BRAKE HOSE
$6.86¢3 431
#92171B
CLAMP,BRAKE HOSE
$18.65¢9 325
#92171C
CLAMP,BRAKE HOSE
$5.67¢2 838
#92171D
CLAMP,RESERVE TANK HOSE
$44.59¢22 294
