SWINGARM

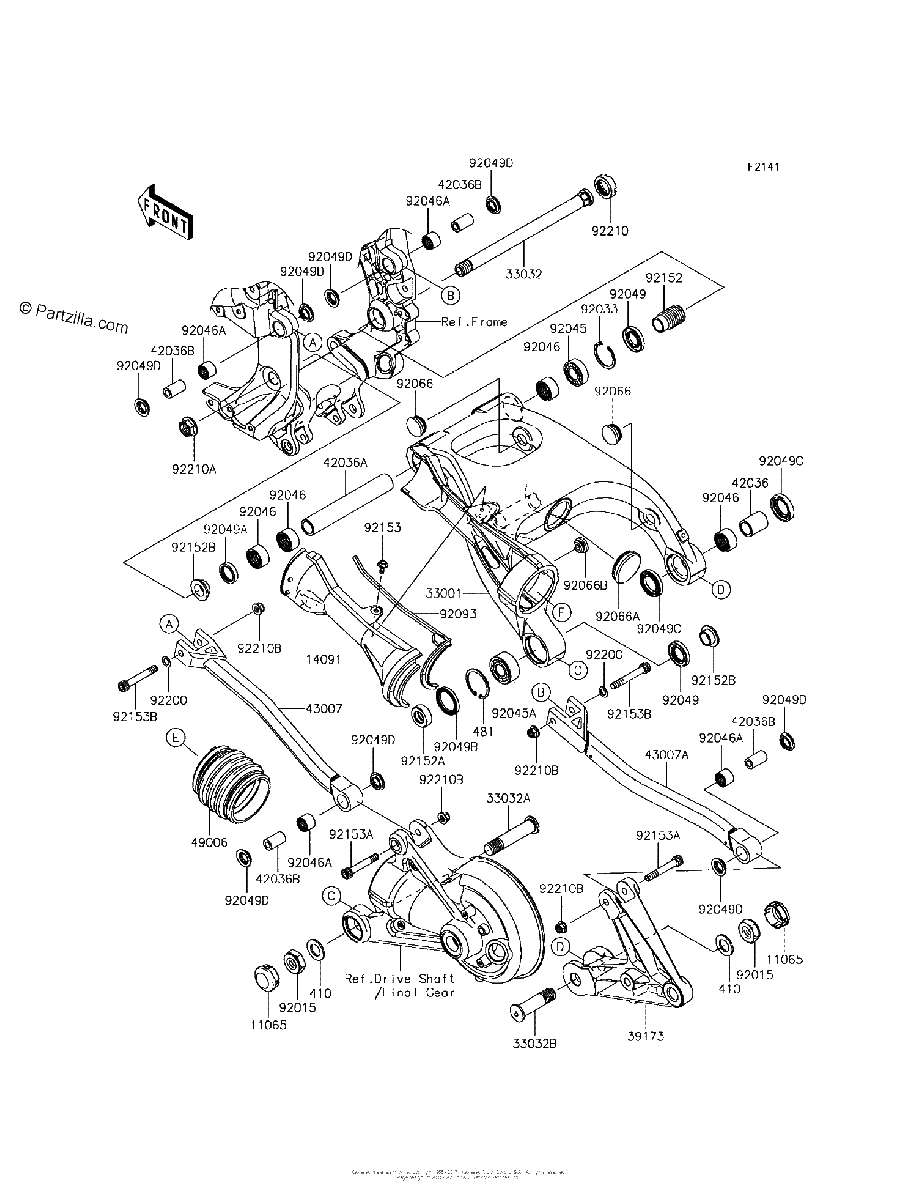

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#410
WASHER-PLAIN-SMALL,20MM
$2.52¢1 263
#481
CIRCLIP,47M/M
$4.20¢2 100
#11065
CAP
$7.65¢3 825
#14091
COVER,DRIVE SHAFT
$45.51¢22 756
#33001
ARM COMP SWING,P SILVER
$1340.54¢670 269
#33032
SHAFT-SWING ARM,PIVOT
$125.20¢62 600
#33032A
SHAFT SWING ARM,REAR GEAR CASE
$90.30¢45 150
#33032B
SHAFT-SWING ARM,AXLE BRACKET
$90.30¢45 150
#39173
BRACKET AXLE,Right Hand,P SILVER
$266.15¢133 075
#42036A
SLEEVE,20.15X28X178
$28.00¢14 000
#42036
SLEEVE,20.15X28X36
$38.82¢19 412
#42036B
SLEEVE,10.1X18X32
$12.68¢6 338
#43007
ROD TORQUE,Left Hand,P SILVER
$272.73¢136 363
#43007A
ROD-TORQUE,RH,P.SILVER
$272.73¢136 363
#49006
BOOT,REAR GEAR CASE
$66.15¢33 075
#92015
NUT,LOCK,20MM
$33.96¢16 981
#92033
RING SNAP,42MM
$6.04¢3 019
#92045
BEARING BALL,6004UL11
$14.24¢7 119
#92045A
BEARING BALL,#5204
$55.85¢27 925
#92046A
BEARING NEEDLE,SFYZM182417
$16.23¢8 113
#92046
BEARING NEEDLE,7E HVS 28X34X17
$22.69¢11 344
#92049B
SEAL OIL,MHA 35X47X5
$14.60¢7 300
#92049C
SEAL-OIL
$9.55¢4 775
#92049D
SEAL OIL,KCR MF018N1
$9.13¢4 563
#92049
SEAL-OIL,MHSA25X42X6
$13.60¢6 800
#92049A
SEAL-OIL,MHSA25X34X7
$9.22¢4 613
#92066
PLUG
$8.85¢4 425
#92066A
PLUG
$8.85¢4 425
#92066B
PLUG,17MM
$4.79¢2 394
#92093
SEAL,DRIVE SHAFT COVER
$45.41¢22 706
#92152
COLLAR,SWING ARM,RH,L=47
$56.25¢28 125
#92152A
COLLAR
$29.93¢14 963
#92152B
COLLAR,SWING ARM,L=12.5
$8.91¢4 456
#92153
BOLT,UPSET-WP,6X16
$1.79¢894
#92153A
BOLT,SOCKET,10X63
$11.63¢5 813
#92153B
BOLT,SOCKET,10X67
$11.63¢5 813
#92200
WASHER,11X18X1
$8.91¢4 456
#92210
NUT,30MM
$32.90¢16 450
#92210A
NUT,FLANGED,20MM
$11.81¢5 906
#92210B
NUT,LOCK,FLANGED,10MM
$3.77¢1 888
