CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

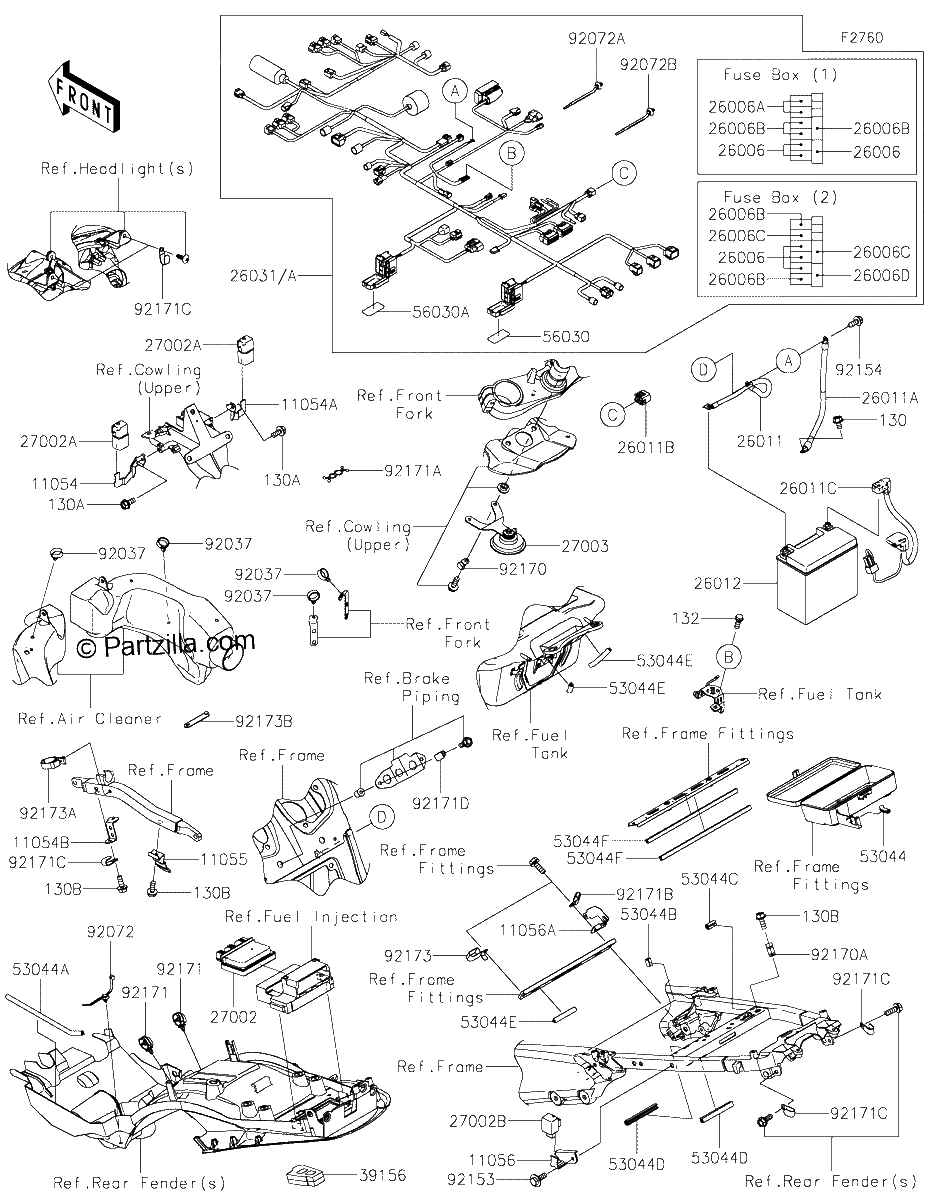

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#130A
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130a
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130b
130BA0616
BOLT FLANGED,6X16
$1.26¢631
1
#130B
130BA0616
BOLT FLANGED,6X16
$1.26¢631
1
#132
132BA0616
BOLT FLANGED SMALL,6X16
$1.51¢756
1
#11054
11054-0497
BRACKET,RELAY,Left Hand
$16.85¢8 425
1
#11054A
11054-0498
BRACKET,RELAY,RH
$16.85¢8 425
1
#11054B
11054-0551
BRACKET,HARNESS
$9.90¢4 950
1
#11055
11055-0411
BRACKET,HARNESS
$11.63¢5 813
1
#11056
11056-7989
BRACKET,SIGNAL LAMP RELAY
$9.90¢4 950
1
#11056A
11056-7991
BRACKET,HARNESS
$8.91¢4 456
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-0052
FUSE,MINI BLADE,2A,GRAY
$6.69¢3 344
1
#26006B
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26006C
26006-1079
FUSE,MINI BLADE,20A,YELLOW
$4.84¢2 419
1
#26006D
26006-1080
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
1
#26011
26011-0087
WIRE LEAD,BATTERY( )
$35.34¢17 669
1
#26011A
26011-0255
WIRE-LEAD,BATTERY(-)
$35.71¢17 856
1
#26011B
26011-0275
WIRE-LEAD,CONNECTOR COVER
$15.71¢7 856
1
#26011C
26011-0750
WIRE-LEAD,BATTERY(+)-STARTER
$62.74¢31 369
1
#26012
26012-0582
BATTERY,FTX14 BS,12V 12AH
No Disponible
1
#26031
26031-1938
HARNESS,MAIN | [CA]
$1523.59¢761 794
1
#26031
26031-1937
HARNESS,MAIN
$1523.59¢761 794
1
#27002
27002-0025
RELAY-ASSY,BOX
$162.96¢81 481
1
#27002A
27002-1086
RELAY Assembly
$42.02¢21 013
1
#27002B
27002-1101
RELAY Assembly,TURN SIGNAL
$87.74¢43 869
1
#27003
27003-0069
HORN
$97.42¢48 713
1
#39156
39156-0846
PAD
$16.39¢8 194
1
#53044C
53044-0031
TRIM,L=22
$3.17¢1 588
1
#53044D
53044-0561
TRIM,L=85
$5.21¢2 606
1
#53044E
53044-1249
TRIM,L=60
$6.69¢3 344
1
#53044F
53044-1265
TRIM,AIR DUCT COVER
$13.45¢6 725
1
#53044A
53044-0022
TRIM,L=220
$15.16¢7 581
1
#53044B
53044-0025
TRIM,L=15
$3.17¢1 588
1
#53044
53044-0001
TRIM,L=30
$2.68¢1 338
1
#56030A
56030-0960
LABEL,FUSE BOX1
$4.59¢2 294
1
#56030
56030-0769
LABEL,FUSE BOX2
$4.59¢2 294
1
#92037
92037-1827
CLAMP,HOSE
$7.41¢3 706
1
#92072A
92072-1392
BAND
$3.70¢1 850
1
#92072B
92072-1414
BAND
$3.70¢1 850
1
#92072
92072-0066
BAND
$3.17¢1 588
1
#92153
92153-0562
BOLT,6X20
$2.09¢1 044
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92170A
92170-1925
CLAMP
$2.33¢1 163
1
#92170
92170-1577
CLAMP
$3.71¢1 856
1
#92171A
92171-0476
CLAMP
$4.11¢2 056
1
#92171B
92171-0689
CLAMP
$9.90¢4 950
1
#92171C
92171-0739
CLAMP
$5.79¢2 894
1
#92171D
92171-0813
CLAMP
$9.90¢4 950
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.68¢1 338
1
#92173A
92173-1062
CLAMP,CABLE,28MM
$3.83¢1 913
1
#92173
92173-1008
CLAMP,84MM
$5.47¢2 738
1
#92173B
92173-1526
CLAMP
$4.16¢2 081
1
