MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

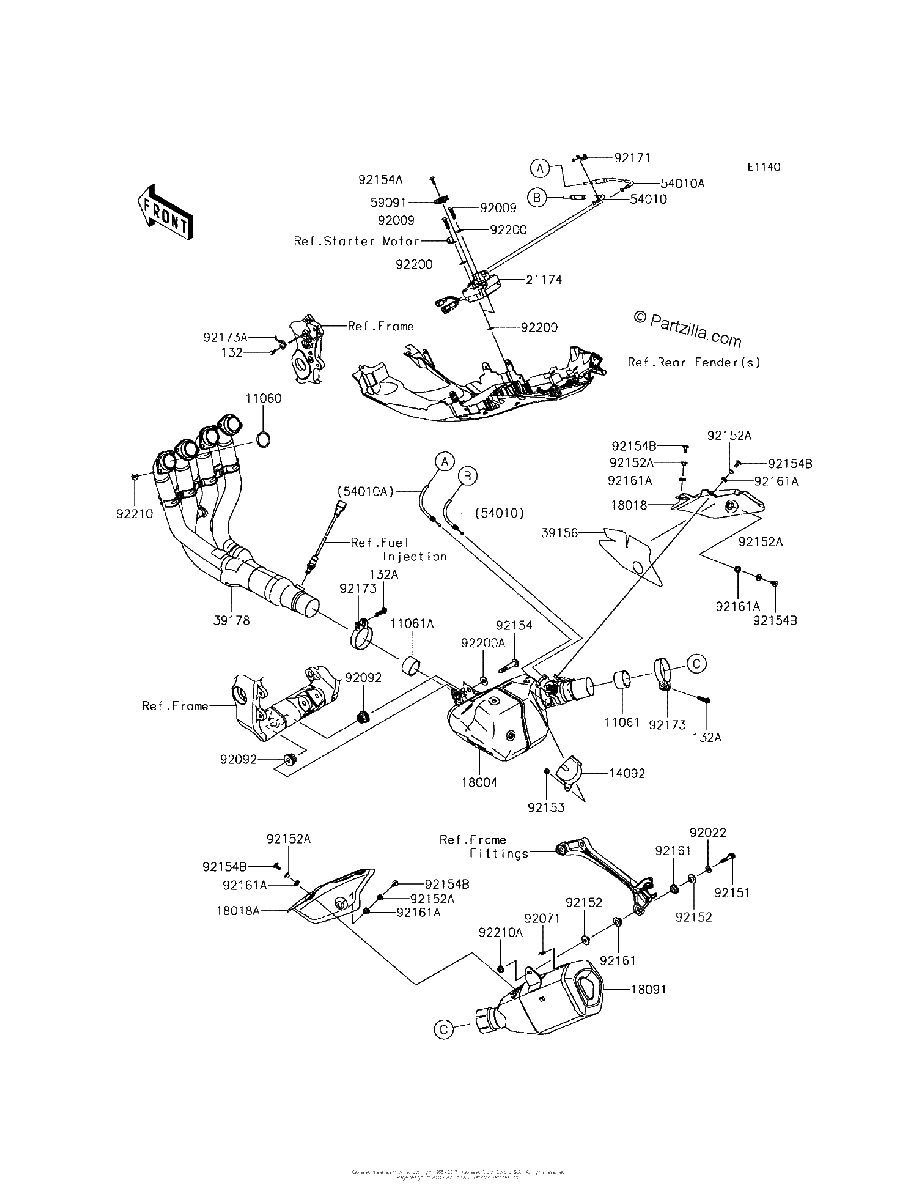

Diagrama de MUFFLER S

Repuestos

#132
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.16¢581
1
#132A
132BC0830
BOLT-FLANGED-SMALL,8X30
$3.58¢1 788
1
#11060
11060-1203
GASKET,EXHAUST PIPE
$9.84¢4 922
1
#11061
11061-0447
GASKET,50.8X62X30
$24.76¢12 380
1
#11061A
11061-0448
GASKET,54X62X30
$21.19¢10 597
1
#14092
14092-0705
COVER,PULLEY
$38.24¢19 119
1
#18004
18004-0022
CHAMBER-PREMUFFLER
$1905.49¢952 746
1
#18018
18018-0600
PLATE HEAT GUARD,CHAMBER
$312.27¢156 136
1
#18018A
18018-0601
PLATE HEAT GUARD,MUFFLER
$443.65¢221 823
1
#18091
18091-0970
BODY COMP MUFFLER
$1867.02¢933 512
1
#21174
21174-0009
MOTOR ELECTRIC
$396.44¢198 220
1
#39156
39156-1937
PAD
$9.53¢4 767
1
#39178
39178-0248
MANIFOLD-COMP-EXHAUST
$2669.79¢1 334 897
1
#54010
54010-0610
CABLE,OPEN
$91.71¢45 856
1
#54010A
54010-0611
CABLE,CLOSE
$91.71¢45 856
1
#59091
59091-0007
PULLEY
$22.49¢11 247
1
#92009
92009-1481
SCREW,TAPPING,6X30
$4.28¢2 139
1
#92022
92022-3730
WASHER,8.5X19X1.2
$3.94¢1 972
1
#92071
92071-1270
GROMMET
$7.68¢3 841
1
#92092
92092-1087
BUSHING RUBBER,MUFFLER
$19.22¢9 608
1
#92151
92151-1532
BOLT,FLANGED,8X40
$2.27¢1 133
1
#92152A
92152-2180
COLLAR,6.3X8.3X16
$5.37¢2 685
1
#92152
92152-0188
COLLAR
$3.40¢1 702
1
#92153
92153-1527
BOLT,SOCKET,6X10
$1.64¢822
1
#92154B
92154-0907
BOLT,SOCKET,6X14
$1.72¢862
1
#92154A
92154-0217
BOLT,TORX,5X18
$3.52¢1 759
1
#92154
92154-0125
BOLT,SOCKET,10X61
$11.99¢5 997
1
#92161A
92161-0308
DAMPER
$3.78¢1 892
1
#92161
92161-0135
DAMPER
$2.85¢1 426
1
#92171
92171-0292
CLAMP
$10.51¢5 256
1
#92173A
92173-1528
CLAMP
$10.10¢5 048
1
#92173
92173-0284
CLAMP,64.5MM
$36.40¢18 199
1
#92200A
92200-1377
WASHER,10.5X25X2.0
$3.83¢1 915
1
#92200
92200-0078
WASHER
$1.84¢920
1
#92210
92210-0076
NUT,8MM
$4.98¢2 490
1
#92210A
92210-0121
NUT,8MM
$1.94¢972
1
