CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

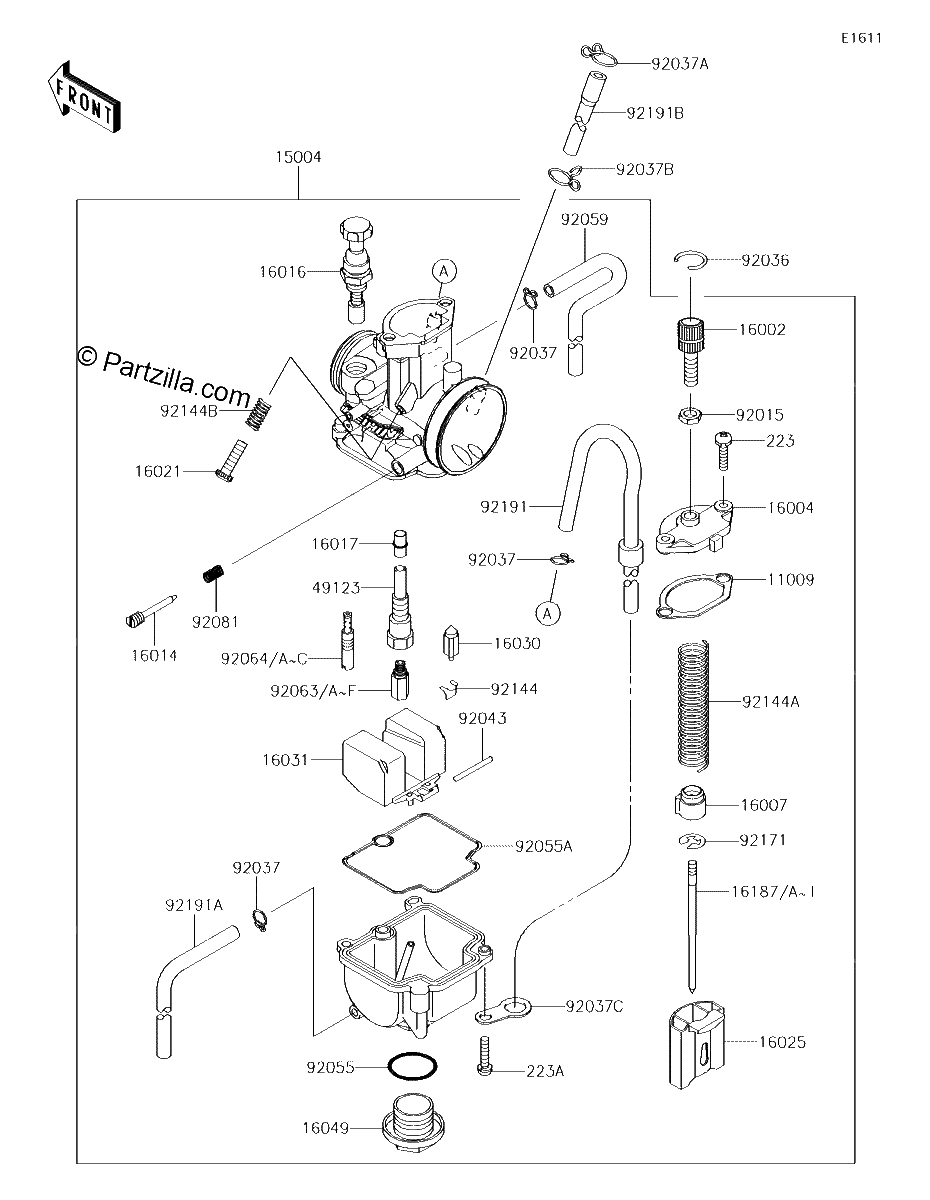

Diagrama de CARBURETOR

Repuestos

#223
223AB0414
SCREW-PAN-WS-CROS,4X14
$3.83¢1 915
1
#223A
223AB0416
SCREW-PAN-WS-CROS,4X16
$3.77¢1 886
1
#223a
223AB0416
SCREW-PAN-WS-CROS,4X16
$3.77¢1 886
1
#11009
11009-1759
GASKET,MIXING CHAMBER
$11.02¢5 509
1
#15004
15004-0856
CARBURETOR-ASSY,PWK28
$299.51¢149 753
1
#16002
16002-1056
ADJUSTER CABLE
$23.31¢11 655
1
#16004
16004-1065
CAP-CHAMBER,MIXING
$88.46¢44 229
1
#16007
16007-1155
SEAT SPRING,THROTTLE VALVE
$8.74¢4 370
1
#16014
16014-1058
SCREW PILOT AIR
$20.15¢10 074
1
#16016
16016-1075
PLUNGER,STARTER
$45.22¢22 609
1
#16017
16017-1431
JET-NEEDLE
$46.13¢23 063
1
#16021
16021-1161
SCREW-THROTTLE STOP
$16.92¢8 458
1
#16025
16025-1220
VALVE THROTTLE,CA3.5
$164.19¢82 093
1
#16030
16030-1064
VALVE-FLOAT
$55.40¢27 698
1
#16031
16031-1065
FLOAT
$59.08¢29 538
1
#16049
16049-1051
COVER-MAIN JET
$37.26¢18 630
1
#16187
16187-0565
NEEDLE-JET,NRKD
$33.95¢16 974
1
#16187
16187-0566
NEEDLE-JET,NRKE
$33.95¢16 974
1
#16187
16187-0559
NEEDLE-JET,NRJC
$33.95¢16 974
1
#16187
16187-0564
NEEDLE-JET,NRKC
$33.95¢16 974
1
#16187
16187-0563
NEEDLE-JET,NRKB
$33.95¢16 974
1
#16187
16187-0562
NEEDLE-JET,NRKA
$33.95¢16 974
1
#16187
16187-0561
NEEDLE-JET,NRJE
$33.95¢16 974
1
#16187
16187-0560
NEEDLE-JET,NRJD
$33.95¢16 974
1
#16187
16187-0558
NEEDLE-JET,NRJB
$33.95¢16 974
1
#16187
16187-0557
NEEDLE JET,NRJA
$33.95¢16 974
1
#49123
49123-1054
HOLDER-MAIN JET
$23.44¢11 718
1
#92015
92015-1574
NUT,CABLE ADJUST LOCK
$6.15¢3 076
1
#92036
92036-018
RING-SNAP
$3.56¢1 783
1
#92037C
92037-1969
CLAMP,HOSE
$7.41¢3 703
1
#92037B
92037-1712
CLAMP
$4.57¢2 283
1
#92037
92037-1396
CLAMP,TUBE
$5.01¢2 507
1
#92037A
92037-147
CLAMP,TUBE | [CA]
$6.72¢3 358
1
#92043
92043-1207
PIN,FLOAT
$11.53¢5 767
1
#92055A
92055-1389
RING-O,FLOAT CHAMBER
$9.04¢4 520
1
#92055
92055-1167
RING O,MAIN JET COVER
$8.68¢4 341
1
#92059
92059-1941
TUBE,4X7X480
$17.58¢8 792
1
#92063
92063-1338
JET MAIN,#135
$13.13¢6 567
1
#92063
92063-1359
JET MAIN,#138
$15.95¢7 975
1
#92063
92063-1360
JET MAIN,#140
$15.50¢7 751
1
#92063
92063-1361
JET MAIN,#142
$14.42¢7 210
1
#92063
92063-1362
JET MAIN,#145
$14.42¢7 210
1
#92063
92063-1363
JET MAIN,#148
$14.42¢7 210
1
#92063
92063-1364
JET MAIN,#150
$14.42¢7 210
1
#92064
92064-1138
JET PILOT,#35
$17.19¢8 596
1
#92064
92064-1141
JET PILOT,#42
$15.39¢7 694
1
#92064
92064-1140
JET PILOT,#40
$15.39¢7 694
1
#92064
92064-1139
JET PILOT,#38
$17.19¢8 596
1
#92081
92081-1555
SPRING,ADJUST SCREW
$4.97¢2 484
1
#92144B
92144-1782
SPRING,THROTTLE STOP SCREW
$16.81¢8 407
1
#92144A
92144-1566
SPRING,THROTTLE VALVE
$12.98¢6 492
1
#92144
92144-1178
SPRING,FLOAT VALVE
$8.34¢4 169
1
#92171
92171-1323
CLAMP
$12.19¢6 095
1
#92191A
92191-1591
TUBE,4X7X420
$14.77¢7 383
1
#92191
92191-1243
TUBE,4X7X560
$10.81¢5 405
1
#92191B
92191-1610
TUBE
$7.04¢3 519
1
