FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

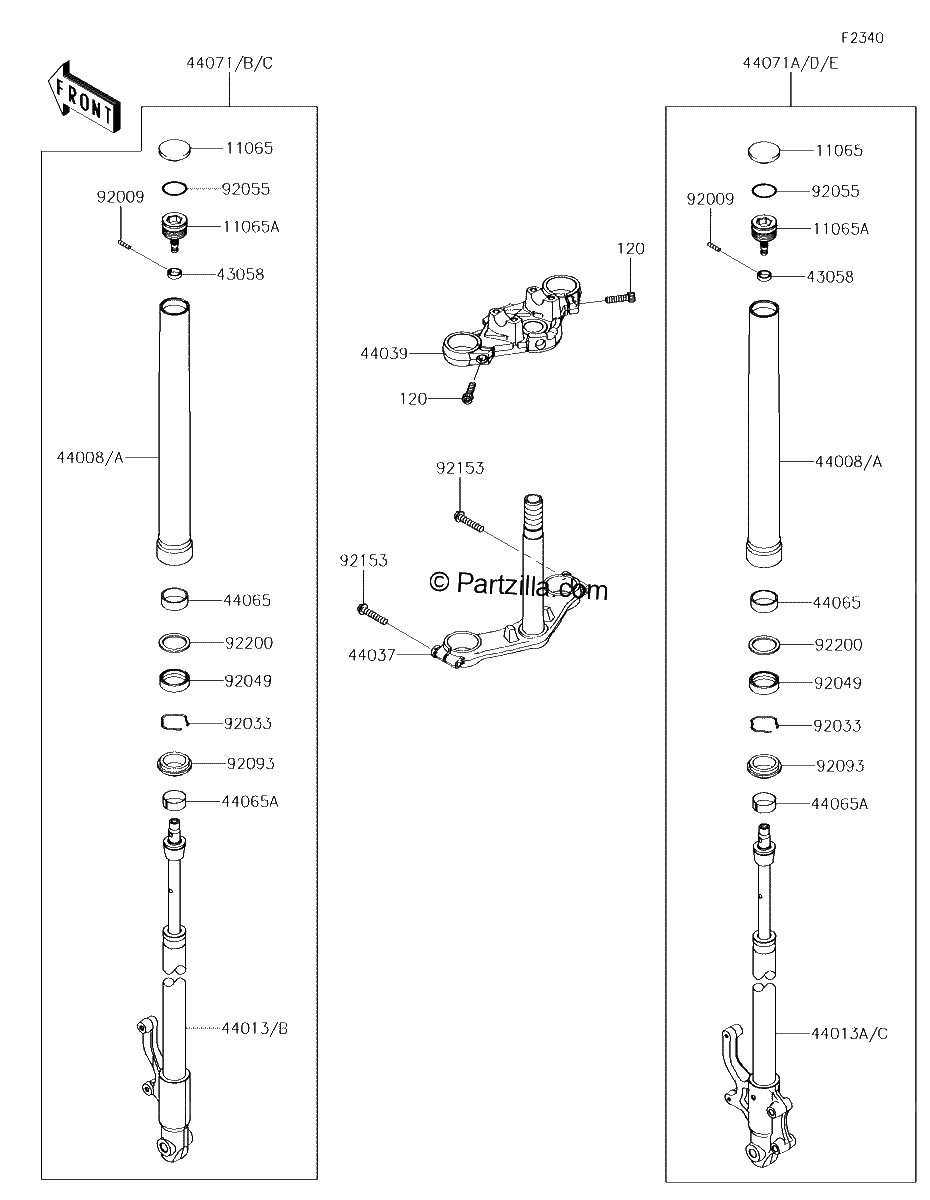

Diagrama de FRONT FORK

Repuestos

#120
120CB0830
BOLT-SOCKET,8X30
$4.65¢2 325
1
#11065
11065-0005
CAP
$8.38¢4 188
1
#11065A
11065-0926
CAP
$8.38¢4 188
1
#43058
43058-1072
RING
$15.51¢7 756
1
#44008
44008-0081-58C
PIPE-FORK OUTER,C.GOLD
$573.20¢286 600
1
#44008
44008-0081-484
PIPE-FORK OUTER,R.GOLD
$573.20¢286 600
1
#44013A
44013-0307-18R
PIPE-FORK INNER,RH,F.S.BLACK
$359.39¢179 694
1
#44013
44013-0306-18R
PIPE-FORK INNER,LH,F.S.BLACK
$359.39¢179 694
1
#44013A
44013-0302-458
PIPE-FORK INNER,RH,P.SILVER
$359.39¢179 694
1
#44013
44013-0301-458
PIPE-FORK INNER,LH,P.SILVER
$359.39¢179 694
1
#44037
44037-0163
HOLDER-FORK UNDER
$374.98¢187 488
1
#44039
44039-0165-18R
HOLDER-FORK UPPER,F.S.BLACK
$258.02¢129 012
1
#44065A
44065-1101
BUSHING-FRONT FORK
$20.31¢10 156
1
#44065
44065-1099
BUSHING-FRONT FORK
$15.26¢7 631
1
#44071
44071-1248-58C
DAMPER-ASSY,FORK,LH,C.GOLD
$1067.76¢533 881
1
#44071A
44071-1260-58C
DAMPER-ASSY,FORK,RH,C.GOLD
$1067.76¢533 881
1
#44071A
44071-1260-484
DAMPER-ASSY,FORK,RH,R.GOLD
$1077.74¢538 869
1
#44071
44071-1259-58C
DAMPER-ASSY,FORK,LH,C.GOLD
$1067.76¢533 881
1
#44071
44071-1259-484
DAMPER-ASSY,FORK,LH,R.GOLD
$1077.74¢538 869
1
#44071A
44071-1249-58C
DAMPER-ASSY,FORK,RH,C.GOLD
$1067.76¢533 881
1
#92009
92009-1625
SCREW
$3.73¢1 863
1
#92033
92033-1038
RING-SNAP
$4.19¢2 094
1
#92049
92049-0003
SEAL-OIL,FORK OUTER TUBE
$19.80¢9 900
1
#92055
92055-1051
RING-O,FORK TOP CAP
$5.67¢2 838
1
#92093
92093-0001
SEAL,FORK OUTER TUBE
$20.00¢10 000
1
#92153
92153-0020
BOLT,8X40
$5.53¢2 763
1
#92200
92200-1061
WASHER
$6.92¢3 463
1
