REAR HUB

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

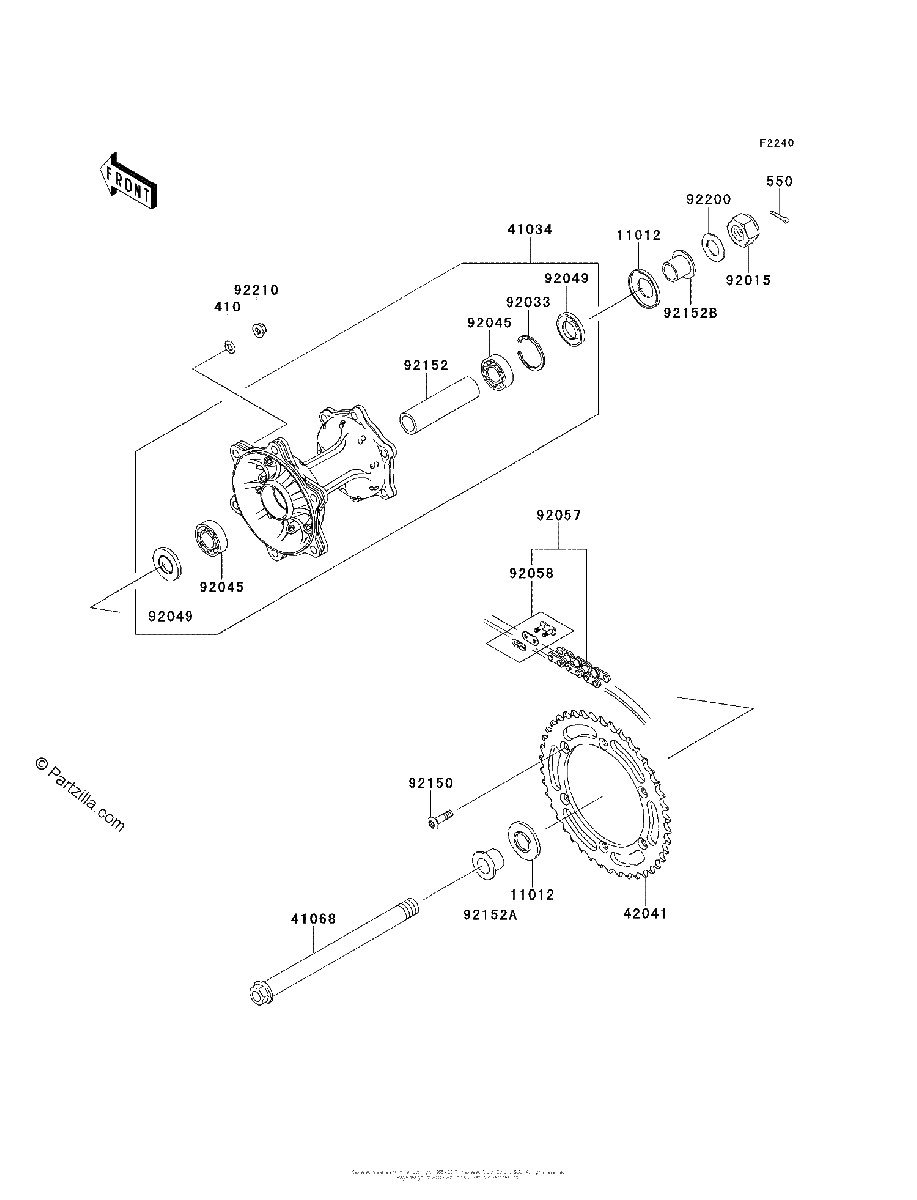

Diagrama de REAR HUB

Repuestos

#410
410AA0800
WASHER-PLAIN-SMALL,8MM
$1.05¢525
1
#550
550AA3025
PIN COTTER,3.0X25
$0.76¢381
1
#11012
11012-1581
CAP,AXLE
$6.36¢3 181
1
#41034
41034-0044
DRUM-ASSY,REAR BRAKE
$603.91¢301 956
1
#41068
41068-0066
AXLE,Rear
$97.70¢48 850
1
#42041
42041-1421
SPROCKET-HUB,42T
$71.01¢35 506
1
#92015
92015-1770
NUT,LOCK,20MM
$33.96¢16 981
1
#92033
92033-1041
RING SNAP,42MM
$6.04¢3 019
1
#92045
92045-1239
BEARING BALL,6004X8JRLLX2/3A
$40.00¢20 000
1
#92049
92049-1203
SEAL-OIL,BJNC2 25425
$19.64¢9 819
1
#92057
92057-1367
CHAIN,DRIVE,EK520LV OX106L
$445.63¢222 813
1
#92058
92058-1070
JOINT-CHAIN,DRIVE,EK
$13.27¢6 637
1
#92150
92150-1978
BOLT,SOCKET,8X28
$8.53¢4 263
1
#92152A
92152-0734
COLLAR,RR AXLE,L=22
$45.54¢22 769
1
#92152B
92152-0735
COLLAR,Rear AXLE,Right Hand,L=20
$45.54¢22 769
1
#92152
92152-0529
COLLAR,REAR BRAKE DRUM,L=105
$18.45¢9 225
1
#92200
92200-1146
WASHER,20.2X36X2
$5.17¢2 588
1
#92210
92210-0493
NUT,FLANGED,LOCK,8MM
$7.56¢3 781
1
