REAR FENDER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

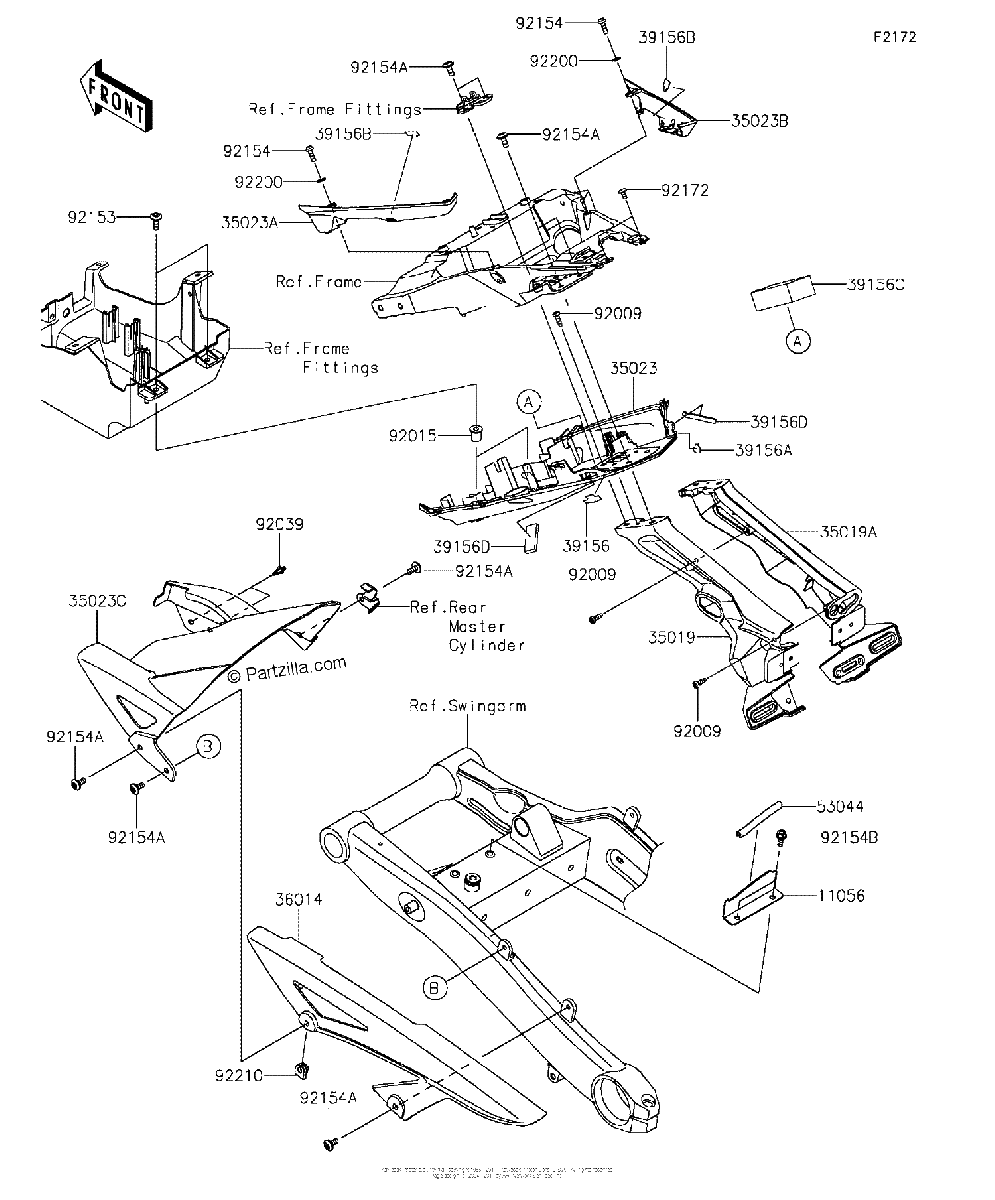

Diagrama de REAR FENDER S

Repuestos

#11056
11056-2656
BRACKET
$8.44¢4 219
1
#35019
35019-0580
FLAP,Left Hand
$30.18¢15 088
1
#35019A
35019-0581
FLAP,Right Hand
$30.18¢15 088
1
#35023C
35023-0381
FENDER REAR,INNER
$57.58¢28 788
1
#35023B
35023-0380
FENDER-REAR,RH
$12.36¢6 181
1
#35023A
35023-0379
FENDER-REAR,LH
$12.36¢6 181
1
#35023
35023-0378
FENDER-REAR,CNT
$104.40¢52 200
1
#36014
36014-0029
CASE CHAIN
$45.41¢22 706
1
#39156D
39156-1812
PAD,RR FENDER,42X15X5
$1.38¢688
1
#39156C
39156-1808
PAD,40X80X25
$1.86¢931
1
#39156B
39156-1788
PAD,RR FENDER LHRH
$1.38¢688
1
#39156A
39156-1787
PAD,Rear FENDER,Rear,Right Hand
$2.10¢1 050
1
#39156
39156-1786
PAD,Rear FENDER,Rear,Left Hand
$2.10¢1 050
1
#53044
53044-0018
TRIM
$4.84¢2 419
1
#92009
92009-1984
SCREW,TAPPING,5X16
$2.38¢1 188
1
#92015
92015-1700
NUT
$8.53¢4 263
1
#92039
92039-0060
RIVET
$3.05¢1 525
1
#92153
92153-0816
BOLT,6X18
$2.04¢1 019
1
#92154B
92154-0899
BOLT,FLANGED,6X16
$2.16¢1 081
1
#92154A
92154-0745
BOLT,SOCKET,6X14
$2.16¢1 081
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.77¢888
1
#92210
92210-0277
NUT,6MM
$4.88¢2 438
1
