FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

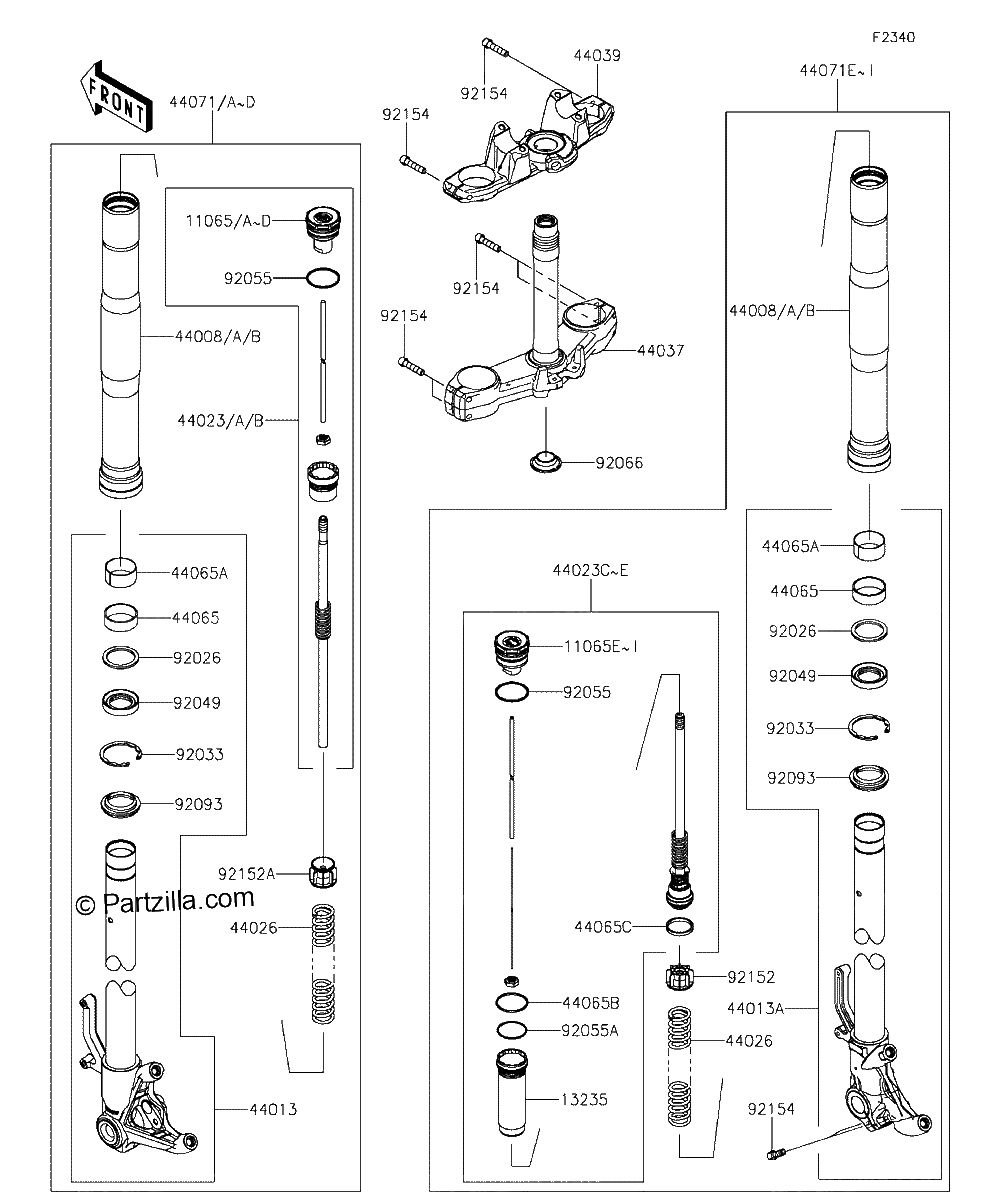

Diagrama de FRONT FORK

Repuestos

#11065
11065-0947-11G
CAP,Left Hand,GRAY
$135.69¢67 844
1
#11065
11065-0947-56N
CAP,Left Hand,D RED
No Disponible
1
#11065
11065-0947-39B
CAP,Left Hand,BROWN
$186.58¢93 288
1
#11065
11065-0947-50Y
CAP,Left Hand,G B GREEN
$152.28¢76 142
1
#11065
11065-0947-828
CAP,Left Hand,K GOLD
$156.63¢78 315
1
#11065E
11065-0948-11G
CAP,Right Hand,GRAY
$135.69¢67 844
1
#11065E
11065-0948-39B
CAP,Right Hand,BROWN
$186.58¢93 288
1
#11065E
11065-0948-50Y
CAP,Right Hand,G B GREEN
$152.28¢76 142
1
#11065E
11065-0948-828
CAP,Right Hand,K GOLD
$156.63¢78 315
1
#11065E
11065-0948-56N
CAP,Right Hand,D RED
No Disponible
1
#13235
13235-0009
GUIDE-COMP
$101.51¢50 755
1
#44008
44008-0070-56N
PIPE FORK OUTER,D RED
No Disponible
1
#44008
44008-0070-39B
PIPE FORK OUTER,BROWN
$525.10¢262 551
1
#44008
44008-0070-499
PIPE FORK OUTER,A BLACK
$456.18¢228 091
1
#44013
44013-0221-18R
PIPE FORK INNER,Left Hand,F S BLACK
$693.68¢346 840
1
#44013A
44013-0222-18R
PIPE FORK INNER,Right Hand,F S BLACK
$693.68¢346 840
1
#44023
44023-0115-11G
CYLINDER SET FORK,Left Hand,GRAY
No Disponible
1
#44023
44023-0115-39B
CYLINDER SET FORK,Left Hand,BROWN
$416.02¢208 012
1
#44023
44023-0115-828
CYLINDER SET FORK,Left Hand,K GOLD
$400.82¢200 410
1
#44023C
44023-0116-11G
CYLINDER SET FORK,Right Hand,GRAY
No Disponible
1
#44023C
44023-0116-39B
CYLINDER SET FORK,Right Hand,BROWN
$733.04¢366 522
1
#44023C
44023-0116-828
CYLINDER SET FORK,Right Hand,K GOLD
$706.08¢353 039
1
#44026
44026-0180
SPRING-FRONT FORK
$80.26¢40 129
1
#44037
44037-0141-18R
HOLDER FORK UNDER,F S BLACK
$862.65¢431 325
1
#44039
44039-0136-18R
HOLDER FORK UPPER,F S BLACK
$377.07¢188 537
1
#44065C
44065-0047
BUSHING-FRONT FORK
$1.26¢633
1
#44065B
44065-0033
BUSHING-FRONT FORK
$6.89¢3 444
1
#44065A
44065-0031
BUSHING FRONT FORK,SLIDE
$19.95¢9 976
1
#44065
44065-0030
BUSHING FRONT FORK,GUIDE
$19.95¢9 976
1
#44071
44071-0902-48T
DAMPER Assembly,Left Hand,Black+GRAY+Black
No Disponible
1
#44071
44071-0902-50U
DAMPER Assembly,Left Hand,Black/GOLD
$1569.42¢784 708
1
#44071
44071-0902-56W
DAMPER Assembly,Left Hand,BLACK
$1483.26¢741 629
1
#44071E
44071-0903-48K
DAMPER Assembly,Right Hand,BRW+Black+BRW
$2068.74¢1 034 368
1
#44071E
44071-0903-48T
DAMPER Assembly,Right Hand,Black+GRAY+Black
No Disponible
1
#44071E
44071-0903-50U
DAMPER Assembly,Right Hand,Black/GOLD
$1635.56¢817 782
1
#44071E
44071-0903-56W
DAMPER-ASSY,RH,BLACK
$1537.50¢768 752
1
#44071
44071-0902-48K
DAMPER Assembly,Left Hand,BRW+Black+BRW
$1610.31¢805 155
1
#44071
44071-0902-56T
DAMPER Assembly,Left Hand,D RED
No Disponible
1
#44071E
44071-0903-56T
DAMPER Assembly,Right Hand,D RED
No Disponible
1
#92026
92026-1276
SPACER,FORK OUTER
$8.68¢4 341
1
#92033
92033-0729
RING SNAP
$7.12¢3 559
1
#92049
92049-0125
SEAL-OIL
$25.62¢12 811
1
#92055A
92055-0174
RING-O
$3.38¢1 691
1
#92055
92055-0142
RING O
$3.58¢1 788
1
#92066
92066-0032
PLUG
$12.05¢6 026
1
#92093
92093-0035
SEAL,DUST
$24.84¢12 420
1
#92152
92152-0757
COLLAR
$16.66¢8 332
1
#92152A
92152-1888
COLLAR
$17.31¢8 654
1
#92154
92154-1293
BOLT
$6.18¢3 088
1
