MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

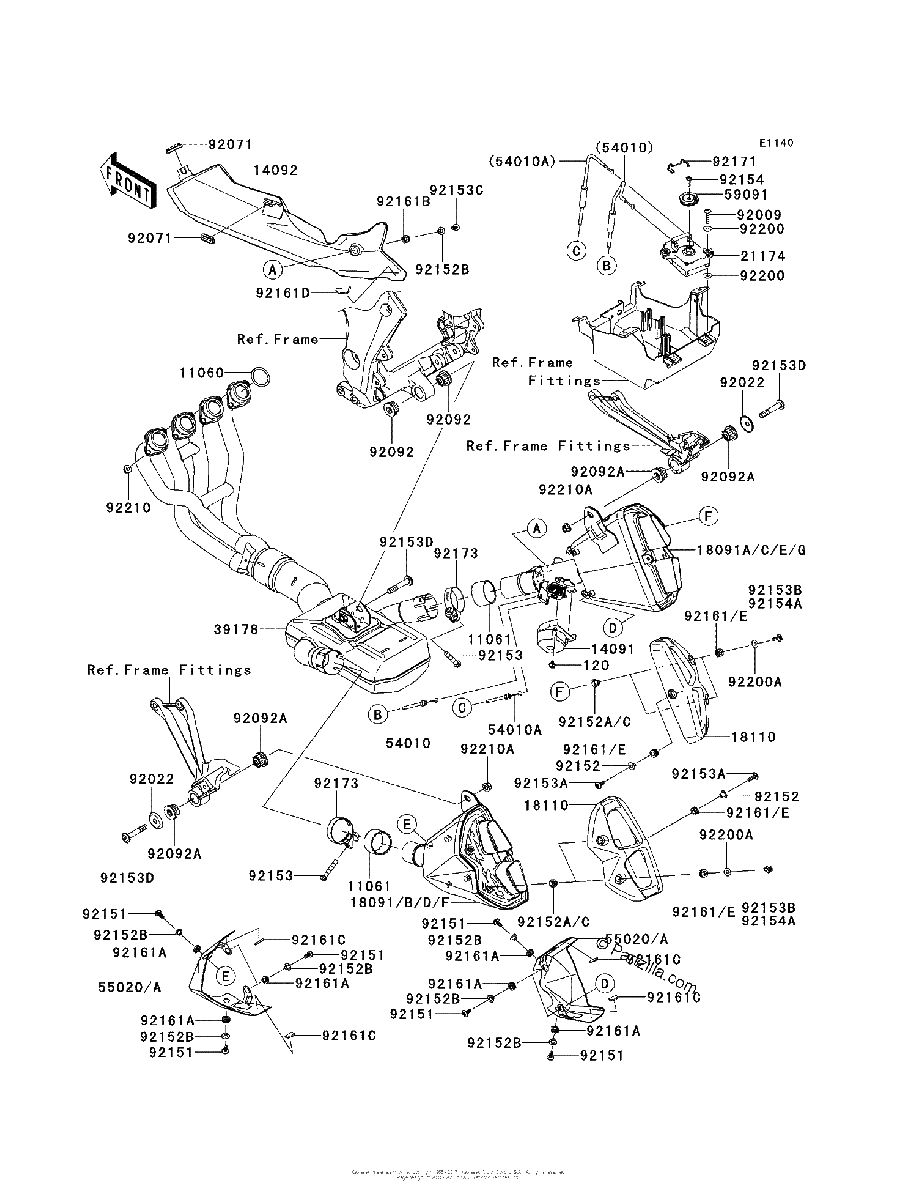

Diagrama de MUFFLER S

Repuestos

#120

120CB0610

BOLT-SOCKET,6X10

$2.40¢1 200

1

#11060

11060-1103

GASKET,EXHAUST PIPE HOLDER

$7.84¢3 919

1

#11061

11061-0726

GASKET,MUFFLER CONNECTING

$42.26¢21 131

1

#14091

14091-0712

COVER,PULLEY

$50.31¢25 156

1

#14092

14092-0150

COVER,SIDE UNDER

$278.41¢139 206

1

#18091

18091-0625

BODY COMP MUFFLER,Left Hand

$1423.91¢711 956

1

#18091

18091-0704

BODY COMP MUFFLER,Left Hand

$1358.50¢679 250

1

#18091

18091-0858

BODY COMP MUFFLER,Left Hand

$1284.44¢642 219

1

#18091

18091-5007

BODY COMP MUFFLER,Left Hand

No Disponible

1

#18091F

18091-5007

BODY COMP MUFFLER,Left Hand

No Disponible

1

#18091A

18091-0626

BODY COMP MUFFLER,Right Hand

$1713.71¢856 856

1

#18091A

18091-0776

BODY-COMP-MUFFLER,RH

$1634.77¢817 387

1

#18091A

18091-0859

BODY COMP MUFFLER,Right Hand

$1531.28¢765 638

1

#18091A

18091-5008

BODY COMP MUFFLER,Right Hand

No Disponible

1

#18091G

18091-5008

BODY COMP MUFFLER,Right Hand

No Disponible

1

#18110

18110-0114

BODY END-MUFFLER

$104.84¢52 419

1

#21174

21174-0005

MOTOR-ELECTRIC

$430.91¢215 456

1

#39178

39178-0144

MANIFOLD COMP EXHAUST

$2315.96¢1 157 981

1

#54010

54010-0119

CABLE,OPEN,WHITE

$99.49¢49 744

1

#54010A

54010-0120

CABLE,CLOSE,BLACK

$99.49¢49 744

1

#55020

55020-0545

GUARD,FRONT COVER

$263.48¢131 738

1

#55020

55020-0568

GUARD,FRONT COVER

$244.86¢122 431

1

#59091

59091-0007

PULLEY

$24.45¢12 225

1

#92009

92009-1481

SCREW,TAPPING,6X30

$4.65¢2 325

1

#92022

92022-289

WASHER

$16.15¢8 075

1

#92071

92071-1187

GROMMET

$4.92¢2 463

1

#92092

92092-1081

BUSHING RUBBER

$26.23¢13 113

1

#92092A

92092-1087

BUSHING RUBBER,MUFFLER

$20.89¢10 444

1

#92151

92151-1654

BOLT,SOCKET,6X14

$1.63¢813

1

#92152A

92152-0882

COLLAR

$6.51¢3 256

1

#92152C

92152-0882

COLLAR

$6.51¢3 256

1

#92152B

92152-0286

COLLAR,6.3X8.3X16

$5.56¢2 781

1

#92152A

92152-0237

COLLAR,6.3X8.3X9.2

$5.56¢2 781

1

#92152

92152-0237

COLLAR,6.3X8.3X9.2

$5.56¢2 781

1

#92153A

92153-0816

BOLT,6X18

$2.04¢1 019

1

#92153B

92153-0816

BOLT,6X18

$2.04¢1 019

1

#92153C

92153-0817

BOLT,SOCKET,6X16

$2.04¢1 019

1

#92153D

92153-1930

BOLT,SOCKET,10X58

$9.90¢4 950

1

#92153

92153-0702

BOLT,8X45

$3.24¢1 619

1

#92154A

92154-0405

BOLT,SOCKET,6X20

$2.36¢1 181

1

#92154

92154-0217

BOLT,TORX,5X18

$3.83¢1 913

1

#92161A

92161-0306

DAMPER

$5.56¢2 781

1

#92161B

92161-0308

DAMPER

$4.11¢2 056

1

#92161C

92161-0856

DAMPER

$12.52¢6 262

1

#92161D

92161-0870

DAMPER,SIDE COVER

$5.51¢2 756

1

#92161

92161-0938

DAMPER

$5.46¢2 731

1

#92161

92161-0204

DAMPER

$4.65¢2 325

1

#92171

92171-0292

CLAMP

$11.43¢5 713

1

#92173

92173-0037

CLAMP

$30.06¢15 031

1

#92200A

92200-3712

WASHER,6.5X16X1.0

$3.70¢1 850

1

#92200

92200-0078

WASHER

$2.00¢1 000

1

#92210

92210-0076

NUT,8MM

$5.41¢2 706

1

#92210A

92210-0568

NUT

$2.03¢1 013

1
