COWLING LOWERS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

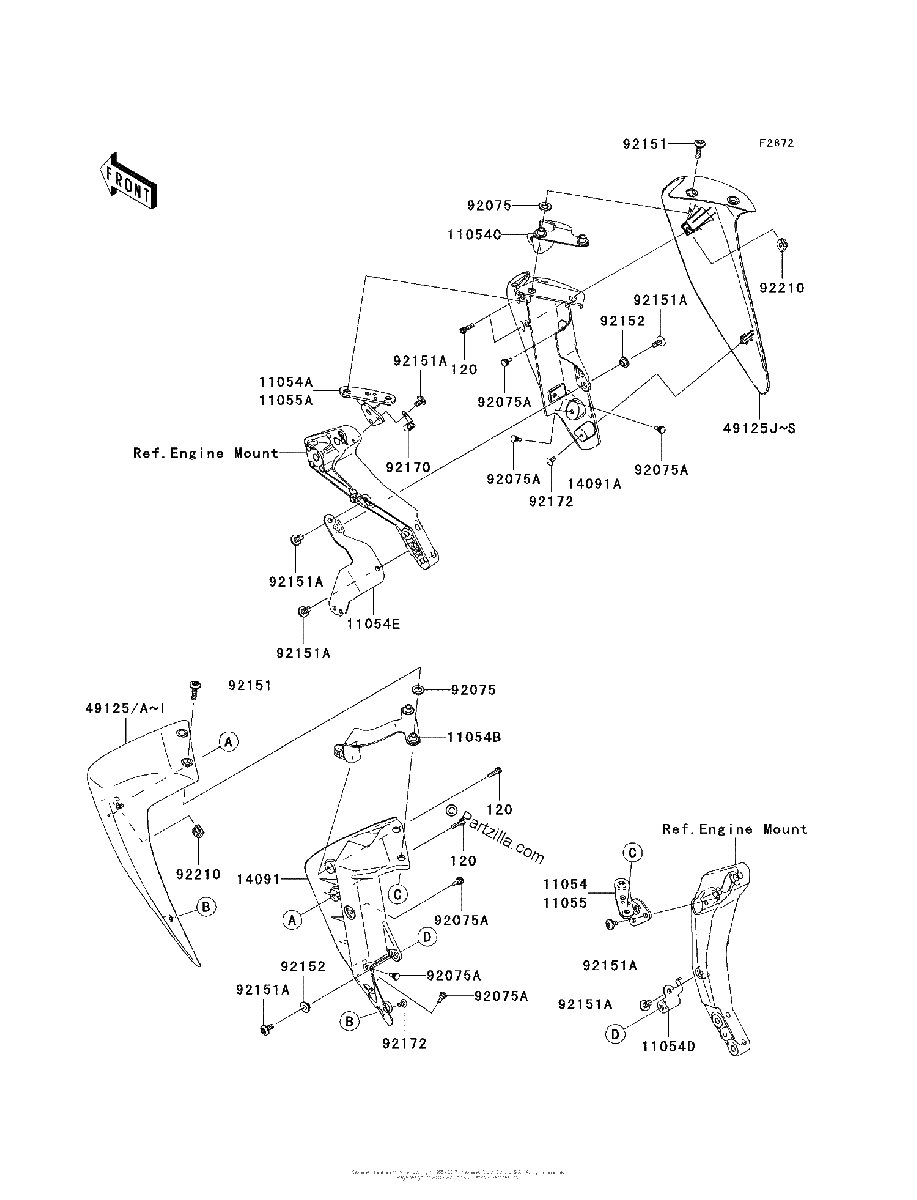

Diagrama de COWLING LOWERS

Repuestos

#120
120CB0516
BOLT-SOCKET,5X16
$0.84¢419
1
#11054
11054-0940
BRACKET,SHROUD,Upper,Left Hand
No Disponible
1
#11054A
11054-0941
BRACKET,SHROUD,Upper,Right Hand
No Disponible
1
#11054B
11054-0942
BRACKET,SHROUD,Left Hand
$71.09¢35 544
1
#11054C
11054-0943
BRACKET,SHROUD,Right Hand
$71.09¢35 544
1
#11054D
11054-0944
BRACKET,SHROUD,Lower,Left Hand
No Disponible
1
#11054E
11054-1861
BRACKET,SHROUD,Lower,Right Hand
No Disponible
1
#11055
11055-0478
BRACKET,SHROUD,UPP,LH
$62.94¢31 469
1
#11055A
11055-0479
BRACKET,SHROUD,UPP,RH
$62.94¢31 469
1
#14091
14091-0687
COVER,SHROUD,Left Hand
$62.80¢31 400
1
#14091A
14091-0688
COVER,SHROUD,RH
$62.80¢31 400
1
#49125Q
49125-0029-28G
SHROUD,Right Hand,C S ORANGE
$181.57¢90 788
1
#49125J
49125-0029-17H
SHROUD,Right Hand,P ORANGE
$181.30¢90 650
1
#49125J
49125-0029-17K
SHROUD,Right Hand,M D,BLACK
$173.17¢86 587
1
#49125J
49125-0029-17M
SHROUD,Right Hand,SILVER
No Disponible
1
#49125J
49125-0029-17P
SHROUD,Right Hand,C L GREEN
No Disponible
1
#49125J
49125-0029-25U
SHROUD,Right Hand,C I BLUE
$181.46¢90 731
1
#49125J
49125-0029-25Y
SHROUD,Right Hand,P S WHITE
$173.29¢86 644
1
#49125P
49125-0029-25Y
SHROUD,Right Hand,P S WHITE
$173.29¢86 644
1
#49125J
49125-0029-28G
SHROUD,Right Hand,C S ORANGE
$181.57¢90 788
1
#49125R
49125-0029-660
SHROUD,Right Hand,M S BLACK
$173.29¢86 644
1
#49125J
49125-0029-660
SHROUD,Right Hand,M S BLACK
$173.29¢86 644
1
#49125J
49125-0029-726
SHROUD,Right Hand,M O BLUE
$181.31¢90 656
1
#49125J
49125-0029-H8
SHROUD,Right Hand,EBONY
No Disponible
1
#49125
49125-0028-H8
SHROUD,Left Hand,EBONY
No Disponible
1
#49125
49125-0028-726
SHROUD,Left Hand,M O BLUE
$181.31¢90 656
1
#49125H
49125-0028-660
SHROUD,Left Hand,M S BLACK
$173.29¢86 644
1
#49125
49125-0028-660
SHROUD,Left Hand,M S BLACK
$173.29¢86 644
1
#49125
49125-0028-17H
SHROUD,Left Hand,P ORANGE
$181.30¢90 650
1
#49125
49125-0028-17K
SHROUD,Left Hand,M D,BLACK
$173.17¢86 587
1
#49125
49125-0028-17M
SHROUD,Left Hand,SILVER
No Disponible
1
#49125
49125-0028-17P
SHROUD,Left Hand,C L GREEN
No Disponible
1
#49125
49125-0028-25U
SHROUD,Left Hand,C I BLUE
$181.46¢90 731
1
#49125
49125-0028-25Y
SHROUD,Left Hand,P S WHITE
$173.29¢86 644
1
#49125F
49125-0028-25Y
SHROUD,Left Hand,P S WHITE
$173.29¢86 644
1
#49125G
49125-0028-28G
SHROUD,Left Hand,C S ORANGE
$181.57¢90 788
1
#49125
49125-0028-28G
SHROUD,Left Hand,C S ORANGE
$181.57¢90 788
1
#92075A
92075-1808
DAMPER,6X10X15
$1.39¢694
1
#92075
92075-1564
DAMPER
$5.41¢2 706
1
#92151A
92151-1654
BOLT,SOCKET,6X14
$1.63¢813
1
#92151
92151-1611
BOLT,SOCKET,6X25
$2.19¢1 094
1
#92152
92152-0445
COLLAR,6.5X10X5.6
$4.88¢2 438
1
#92170
92170-1804
CLAMP
$5.24¢2 619
1
#92172
92172-0175
SCREW,TAPPING,5X16
$1.72¢862
1
#92210
92210-1266
NUT,5MM
$7.35¢3 675
1
