SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

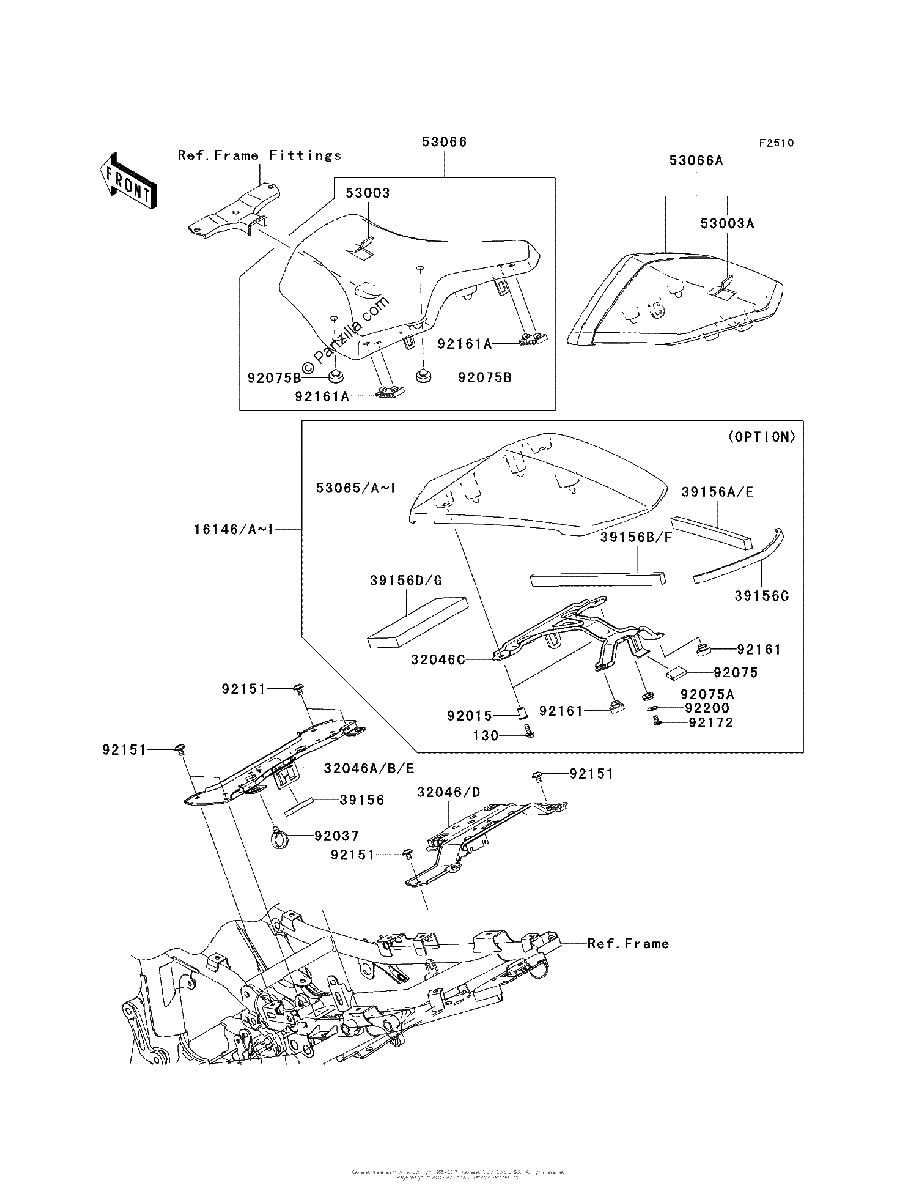

Diagrama de SEAT

Repuestos

#130
130BA0514
BOLT-FLANGED,5X14
$1.78¢891
1
#16146
16146-0075-17H
COVER Assembly,SINGLE SEAT,ORANGE
$248.95¢124 476
1
#16146
16146-0075-17K
COVER Assembly,SINGLE SEAT,BLACK
$115.41¢57 707
1
#16146
16146-0075-17M
COVER Assembly,SINGLE SEAT,SILVER
No Disponible
1
#16146
16146-0075-17P
COVER Assembly,SINGLE SEAT,GREEN
No Disponible
1
#16146
16146-0075-25U
COVER Assembly,SINGLE SEAT,C I BLUE
$227.73¢113 867
1
#16146
16146-0075-25Y
COVER Assembly,SINGLE SEAT,WHITE
$243.03¢121 515
1
#16146G
16146-0075-25Y
COVER Assembly,SINGLE SEAT,WHITE
$243.03¢121 515
1
#16146F
16146-0075-28G
COVER Assembly,SINGLE SEAT,ORANGE
$256.48¢128 242
1
#16146
16146-0075-28G
COVER Assembly,SINGLE SEAT,ORANGE
$256.48¢128 242
1
#16146H
16146-0075-660
COVER Assembly,SINGLE SEAT,M S Black
$243.03¢121 515
1
#16146
16146-0075-660
COVER Assembly,SINGLE SEAT,M S Black
$243.03¢121 515
1
#16146
16146-0075-726
COVER Assembly,SINGLE SEAT,BLUE
$256.48¢128 242
1
#16146
16146-0075-H8
COVER Assembly,SINGLE SEAT,EBONY
$259.11¢129 553
1
#32046
32046-0114
BRACKET SEAT,Rear
$55.17¢27 583
1
#32046A
32046-0117
BRACKET SEAT,Front
$64.86¢32 430
1
#32046A
32046-0118
BRACKET SEAT,Front
$66.02¢33 011
1
#32046C
32046-0120
BRACKET SEAT
$55.17¢27 583
1
#32046D
32046-0124-18R
BRACKET SEAT,Rear,BLACK
$55.17¢27 583
1
#32046
32046-0124-18R
BRACKET SEAT,Rear,BLACK
$55.17¢27 583
1
#32046E
32046-0125-18R
BRACKET SEAT,Front,BLACK
$65.40¢32 700
1
#32046A
32046-0125-18R
BRACKET SEAT,Front,BLACK
$65.40¢32 700
1
#39156G
39156-0424
PAD,SEAT COVER,Front
$8.61¢4 307
1
#39156D
39156-0424
PAD,SEAT COVER,Front
$8.61¢4 307
1
#39156B
39156-0423
PAD,SEAT COVER,LH | (OPTION)
$3.94¢1 972
1
#39156F
39156-0423
PAD,SEAT COVER,LH | (OPTION)
$3.94¢1 972
1
#39156
39156-0320
PAD
$2.89¢1 443
1
#39156A
39156-0415
PAD,SEAT COVER,Right Hand
$3.94¢1 972
1
#39156B
39156-0416
PAD,SEAT COVER,Left Hand
$3.94¢1 972
1
#39156C
39156-0417
PAD,SEAT COVER,RR | (OPTION)
$3.94¢1 972
1
#39156D
39156-0419
PAD,SEAT COVER,Front
$8.61¢4 307
1
#39156A
39156-0422
PAD,SEAT COVER,RH | (OPTION)
$3.94¢1 972
1
#39156E
39156-0422
PAD,SEAT COVER,RH | (OPTION)
$3.94¢1 972
1
#53003
53003-0095-MA
LEATHER,FRONT SEAT,BLACK
$171.87¢85 934
1
#53003A
53003-0096-MA
LEATHER,REAR SEAT,BLACK
$171.87¢85 934
1
#53065
53065-0015-660
COVER SEAT,M S BLACK
$249.00¢124 499
1
#53065
53065-0015-17H
COVER SEAT,P ORANGE
$260.42¢130 209
1
#53065
53065-0015-17K
COVER SEAT,M D BLACK
$248.43¢124 217
1
#53065
53065-0015-17M
COVER SEAT,SILVER
No Disponible
1
#53065
53065-0015-17P
COVER SEAT,C L GREEN
No Disponible
1
#53065
53065-0015-25U
COVER SEAT,C I BLUE
$241.72¢120 859
1
#53065F
53065-0015-25Y
COVER SEAT,P S WHITE
$249.00¢124 499
1
#53065
53065-0015-25Y
COVER SEAT,P S WHITE
$249.00¢124 499
1
#53065G
53065-0015-28G
COVER SEAT,C S ORANGE
$260.98¢130 491
1
#53065
53065-0015-28G
COVER SEAT,C S ORANGE
$260.98¢130 491
1
#53065H
53065-0015-660
COVER SEAT,M S BLACK
$249.00¢124 499
1
#53065
53065-0015-726
COVER SEAT,M O BLUE
$260.43¢130 214
1
#53065
53065-0015-H8
COVER SEAT,EBONY
$248.43¢124 217
1
#53066
53066-0138-MA
SEAT Assembly,Front,BLACK
$380.12¢190 061
1
#53066A
53066-0139-12Y
SEAT,Rear,LEATHER Black+BAND Black
$275.88¢137 943
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92037
92037-1827
CLAMP,HOSE
$6.82¢3 410
1
#92075
92075-1446
DAMPER
$4.48¢2 242
1
#92075A
92075-161
DAMPER
$4.28¢2 139
1
#92075B
92075-1927
DAMPER,10X20X8
$4.01¢2 007
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.49¢747
1
#92161
92161-0046
DAMPER
$9.84¢4 922
1
#92161A
92161-0149
DAMPER,SEAT
No Disponible
1
#92172
92172-1061
SCREW,TAPPING,5X10
No Disponible
1
#92200
92200-0288
WASHER
$1.30¢650
1
