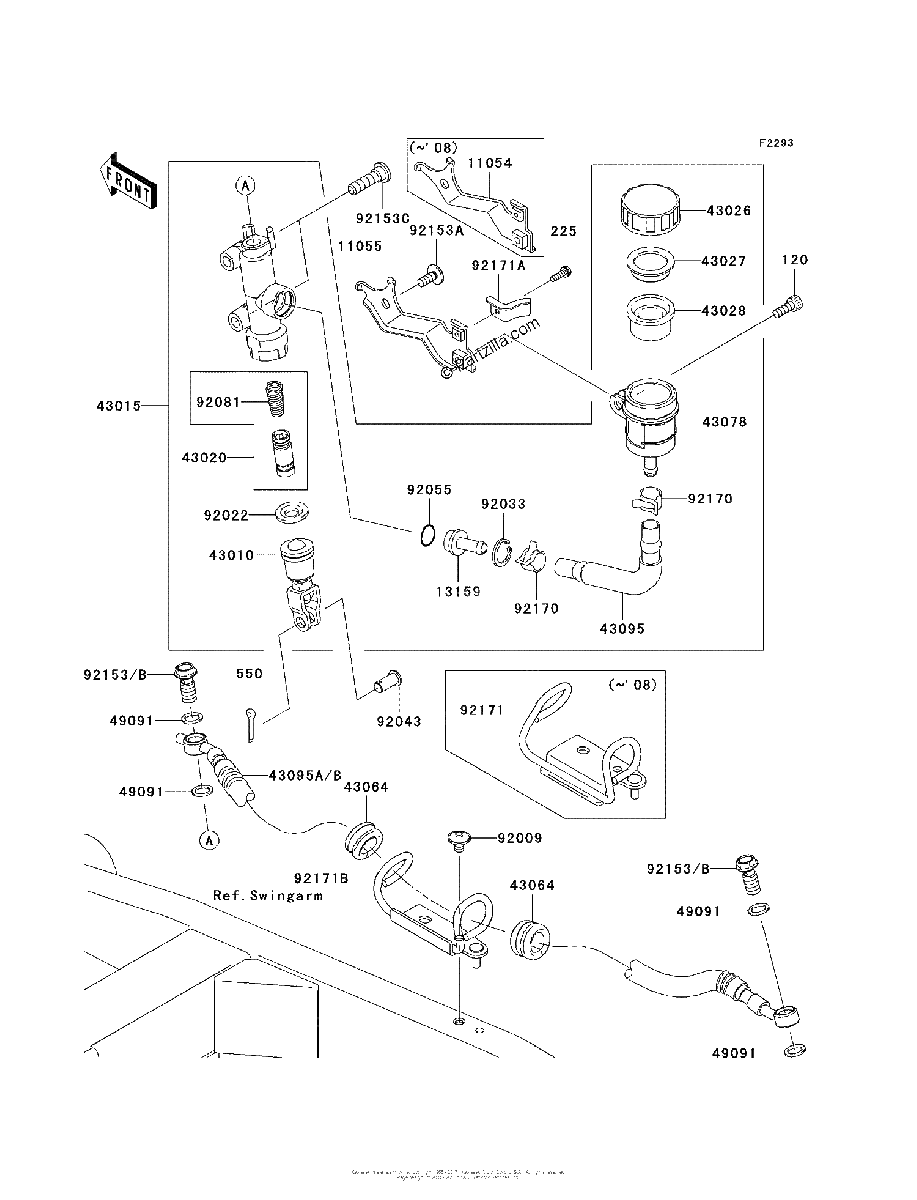

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#120
BOLT SOCKET,6X16
$2.12¢1 058
#225
SCREW PAN WSP CROS,4X12
$2.45¢1 225
#550
PIN COTTER,2.0X15
$1.08¢541
#11054
BRACKET,RESERVOIR TANK,Rear
$23.69¢11 845
#11055
BRACKET,RESERVOIR TANK,Rear
$23.69¢11 845
#13159
CONNECTOR
$7.72¢3 858
#43010
ROD Assembly BRAKE
$53.67¢26 835
#43015
CYLINDER Assembly MASTER,Rear
$536.59¢268 295
#43020
PISTON-COMP-BRAKE
$68.37¢34 184
#43026
CAP-BRAKE
$41.78¢20 890
#43027
PLATE DIAPHRAGM
$5.35¢2 674
#43028
DIAPHRAGM
$19.22¢9 608
#43064
GROMMET,HOSE CLAMP
$5.01¢2 507
#43078
RESERVOIR
$32.02¢16 008
#43095A
HOSE-BRAKE,RR
$88.24¢44 120
#43095B
HOSE-BRAKE,RR
$88.24¢44 120
#43095A
HOSE BRAKE,Rear
$90.54¢45 270
#43095
HOSE BRAKE,Rear MASTER CYLINDER
$40.50¢20 251
#49091
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
#92009
SCREW,6X10
$3.94¢1 972
#92022
RING-SNAP,20.9X24.6X1.2
No Disponible
#92033
RING-SNAP,20.5MM
$4.53¢2 266
#92043
PIN,8X17
$3.58¢1 788
#92055
RING-O,14.8X2.4
No Disponible
#92081
SPRING,MASTER CYLINDER
$12.59¢6 296
#92153C
BOLT,SOCKET,8X30
$3.58¢1 788
#92153
BOLT,OIL,L=23
$3.58¢1 788
#92153A
BOLT,SOCKET,6X14
$2.32¢1 162
#92153
BOLT,OIL,L=23
$4.98¢2 490
#92170
CLAMP,HOSE
$4.57¢2 283
#92171A
CLAMP,RESERVOIR TANK
$5.68¢2 841
#92171
CLAMP,BRAKE HOSE
$39.38¢19 688
#92171B
CLAMP,BRAKE HOSE
$38.85¢19 424
