REAR MASTER CYLINDER BAF BCF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

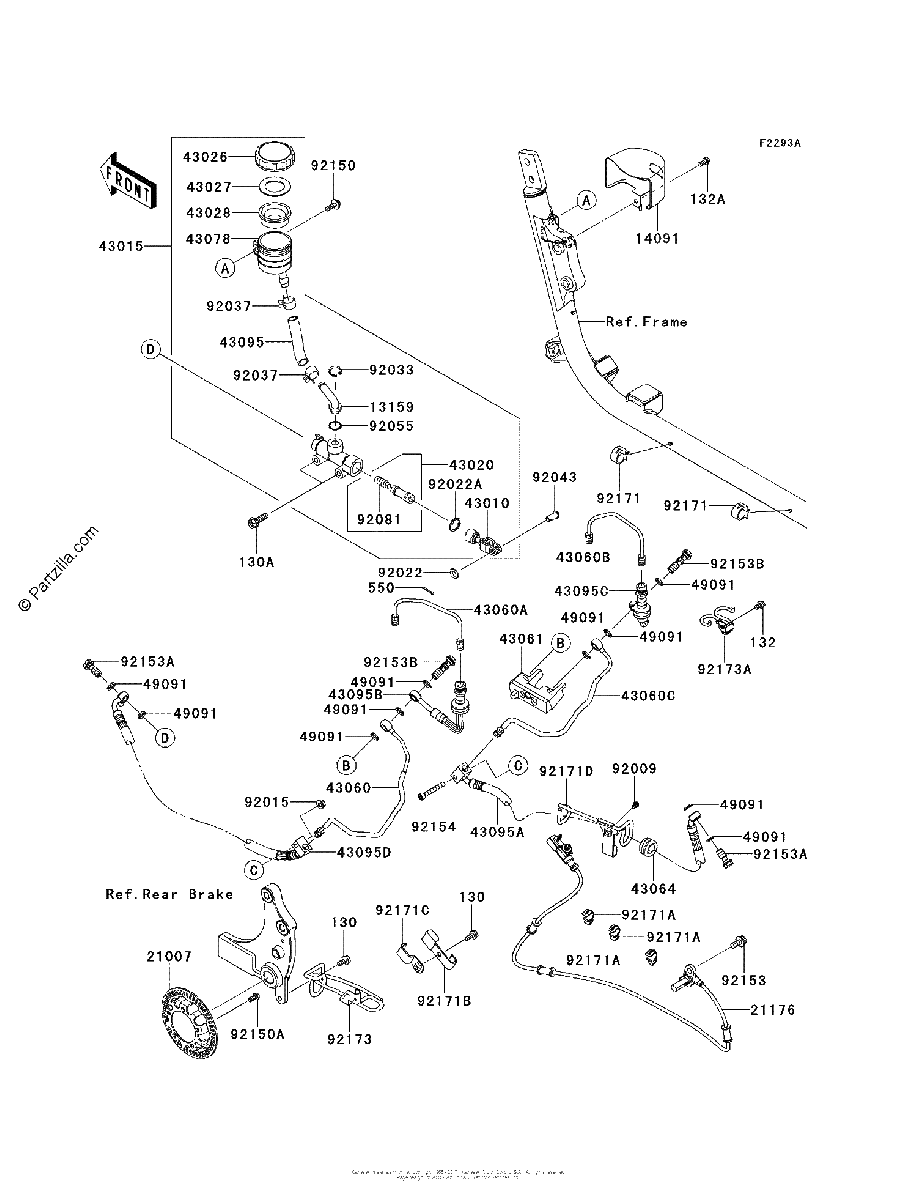

Diagrama de REAR MASTER CYLINDER BAF BCF

Repuestos

#130
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130A
130BB0825
BOLT-FLANGED,8X25
$3.43¢1 713
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.66¢831
1
#132A
132BB0612
BOLT-FLANGED-SMALL,6X12
$1.94¢969
1
#550
550AA2015
PIN COTTER,2.0X15
$1.17¢587
1
#13159
13159-1052
CONNECTOR,RR MASTER CYLINDER
$15.67¢7 837
1
#14091
14091-1595
COVER,RESERVOIR TANK
$81.66¢40 831
1
#21007
21007-0115
ROTOR,SPEED SENSOR
$52.30¢26 150
1
#21176
21176-0104
SENSOR,SPEED,Rear
$195.54¢97 769
1
#43010
43010-1062
ROD Assembly BRAKE
$58.34¢29 169
1
#43015
43015-0081
CYLINDER-ASSY-MASTER,RR
$332.08¢166 038
1
#43020
43020-1057
PISTON-COMP-BRAKE
$74.31¢37 156
1
#43026
43026-1051
CAP BRAKE
$38.94¢19 469
1
#43027
43027-1051
PLATE DIAPHRAGM
$5.26¢2 631
1
#43028
43028-1057
DIAPHRAGM,MASTER CYLINDER
$18.76¢9 381
1
#43060
43060-0078
PIPE BRAKE,Rear M/CYLINDER (HU)
$114.54¢57 269
1
#43060A
43060-0079
PIPE-BRAKE,(RR M/CYLINDER)-HU
$45.46¢22 731
1
#43060B
43060-0080
PIPE BRAKE,HU (Rear CALIPER)
$45.46¢22 731
1
#43060C
43060-0081
PIPE BRAKE,(HU) Rear CALIPER
$114.54¢57 269
1
#43061
43061-0006
JOINT BRAKE
$42.26¢21 131
1
#43064
43064-007
GROMMET,HOSE CLAMP
$5.45¢2 725
1
#43078
43078-1178
RESERVOIR,Rear MASTER CYLINDER
$28.79¢14 394
1
#43095D
43095-0524
HOSE-BRAKE,RR M/CYLINDER-(HU)
$108.59¢54 294
1
#43095C
43095-0521
HOSE-BRAKE,HU-(RR CALIPER)
$58.27¢29 138
1
#43095
43095-0306
HOSE-BRAKE,RR MASTER CYLINDER
$17.90¢8 950
1
#43095A
43095-0391
HOSE-BRAKE,HU-RR CALIPER
$175.46¢87 731
1
#43095B
43095-0520
HOSE-BRAKE,(RR M/CYLINDER)-HU
$85.26¢42 631
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$2.04¢1 019
1
#92009
92009-1661
SCREW,6X10
$4.29¢2 144
1
#92015
92015-1078
NUT,FLANGED,6MM
No Disponible
1
#92022
92022-1582
WASHER,8.5X16X1.2
$1.05¢525
1
#92022A
92022-1601
RING-SNAP,20.9X24.6X1.2
No Disponible
1
#92033
92033-1186
RING-SNAP,20.5MM
$4.92¢2 463
1
#92037
92037-1547
CLAMP,BRAKE HOSE
$13.83¢6 913
1
#92043
92043-1013
PIN,8X16
$9.83¢4 913
1
#92055
92055-1251
RING-O,14.8X2.4
No Disponible
1
#92081
92081-1737
SPRING,MASTER CYLINDER
$13.69¢6 844
1
#92150
92150-1339
BOLT,6X20
$4.36¢2 181
1
#92150A
92150-1836
BOLT,SOCKET,6X14
$4.65¢2 325
1
#92153
92153-0327
BOLT,SOCKET,8X16
$6.15¢3 075
1
#92153A
92153-0627
BOLT,OIL,L=23
$5.41¢2 706
1
#92153B
92153-1438
BOLT,OIL,L=37
$4.88¢2 438
1
#92154
92154-0134
BOLT,SOCKET,6X45
$2.54¢1 269
1
#92171
92171-1424
CLAMP,15MM DIA.
$4.16¢2 081
1
#92171A
92171-1819
CLAMP,BRAKE HOSE
$5.67¢2 838
1
#92171B
92171-1826
CLAMP
$14.46¢7 231
1
#92171C
92171-1827
CLAMP
$13.14¢6 569
1
#92171D
92171-1828
CLAMP
$54.23¢27 113
1
#92173
92173-0138
CLAMP,BRAKE HOSE
$56.21¢28 106
1
#92173A
92173-0184
CLAMP,Rear BRAKE HOSE
$24.54¢12 269
1
