CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

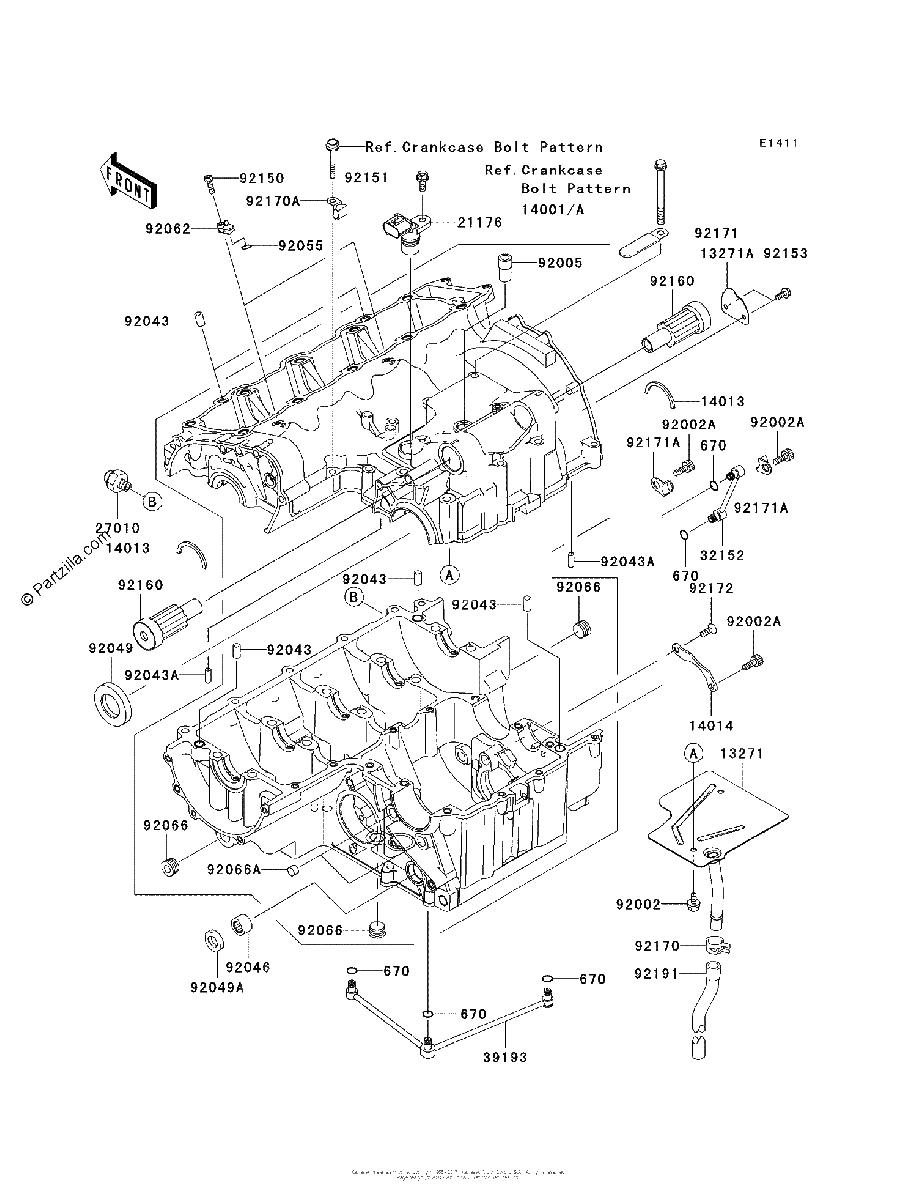

Diagrama de CRANKCASE

Repuestos

#670
670D1505
O RING
$3.94¢1 972
1
#13271
13271-0747
PLATE,BREATHER
$86.22¢43 108
1
#13271A
13271-0748
PLATE,BREATHER SIDE
$2.43¢1 213
1
#14001
14001-0117
SET CRANKCASE
No Disponible
1
#14001
14001-0131
SET-CRANKCASE
No Disponible
1
#14001A
14001-0131
SET-CRANKCASE
No Disponible
1
#14013
14013-1051
RING POSITION
$3.63¢1 817
1
#14014
14014-0027
PLATE-POSITION
$5.68¢2 841
1
#21176
21176-0054
SENSOR,SPEED
$83.08¢41 538
1
#27010
27010-1313
SWITCH,OIL PRESSURE
$42.03¢21 016
1
#32152
32152-1545
PIPE,Right Hand,L=76.8
$35.74¢17 871
1
#39193
39193-0014
PIPE OIL
$55.35¢27 675
1
#92002
92002-1449
BOLT,6X10
$3.96¢1 978
1
#92002A
92002-1778
BOLT,SOCKET,6X16
$4.57¢2 283
1
#92005
92005-1238
FITTING,BREATHER
$11.68¢5 842
1
#92043
92043-1037
PIN,DOWEL,10X14
$0.78¢391
1
#92043A
92043-1690
PIN,6X16
$4.57¢2 283
1
#92046
92046-037
BEARING-NEEDLE,7E-HK1412
$21.01¢10 505
1
#92049A
92049-1520
SEAL OIL,TC14245
$12.63¢6 313
1
#92049
92049-1474
SEAL OIL,TC32578
$16.66¢8 332
1
#92055
92055-1343
RING-O,5.5X1.5
$0.71¢357
1
#92062
92062-1092
NOZZLE,OIL JET
$11.59¢5 796
1
#92066A
92066-1110
PLUG
$6.09¢3 048
1
#92066
92066-0003
PLUG,PT3/8X10
$2.86¢1 432
1
#92150
92150-1019
BOLT,SOCKET,5X20
$3.74¢1 869
1
#92151
92151-1774
BOLT,FLANGED,6X16
No Disponible
1
#92153
92153-0753
BOLT,FLANGED,5X12
$2.63¢1 317
1
#92160
92160-1868
DAMPER
$24.53¢12 265
1
#92170A
92170-1577
CLAMP
$3.42¢1 708
1
#92170
92170-1118
CLAMP
$6.82¢3 410
1
#92171A
92171-0302
CLAMP,OIL PIPE
$4.40¢2 202
1
#92171
92171-0092
CLAMP
$2.48¢1 242
1
#92172
92172-0090
SCREW,6X16
$2.37¢1 185
1
#92191
92191-1776
TUBE,BREATHER
$32.48¢16 238
1
