SIDE COVERS CHAIN COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

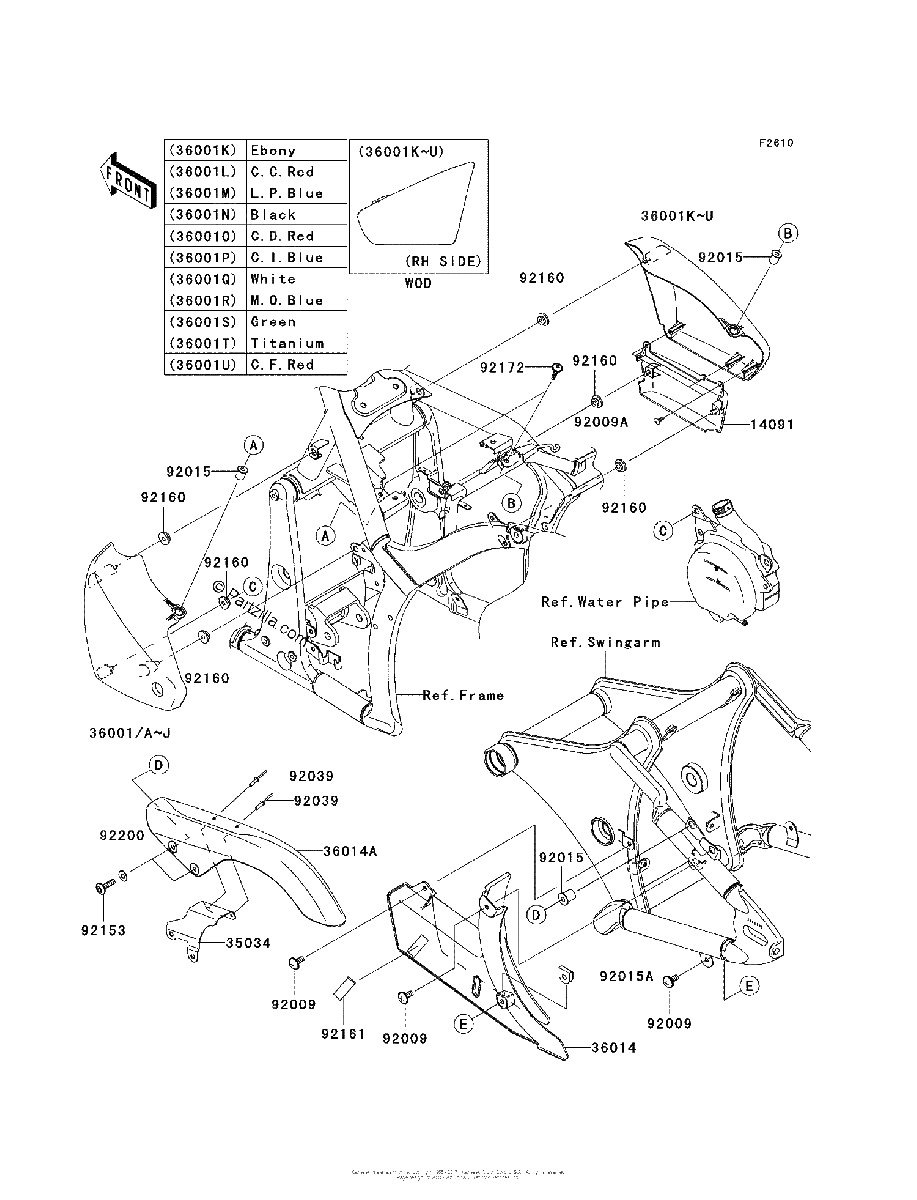

Diagrama de SIDE COVERS CHAIN COVER

Repuestos

#14091
14091-0641
COVER,SIDE COVER,RH
$13.82¢6 911
1
#35034
35034-0082
REINFORCE
$17.16¢8 579
1
#36001K
36001-0082-727
COVER-SIDE,RH,M.D.GREEN
$130.27¢65 136
1
#36001K
36001-0082-740
COVER SIDE,Right Hand,M TITANIUM
$138.51¢69 253
1
#36001K
36001-0082-816
COVER-SIDE,RH,C.F.RED
$138.51¢69 253
1
#36001K
36001-0082-H8
COVER SIDE,Right Hand,EBONY
$113.94¢56 971
1
#36001K
36001-0082-L1
COVER SIDE,Right Hand,C C RED
$138.51¢69 253
1
#36001K
36001-0082-M4
COVER SIDE,Right Hand,L P BLUE
$138.51¢69 253
1
#36001K
36001-0082-726
COVER SIDE,Right Hand,M O BLUE
$138.51¢69 253
1
#36001S
36001-0082-727
COVER-SIDE,RH,M.D.GREEN
$130.27¢65 136
1
#36001K
36001-0082-667
COVER SIDE,Right Hand,P C WHITE
$138.51¢69 253
1
#36001
36001-0081-727
COVER-SIDE,LH,M.D.GREEN
$130.27¢65 136
1
#36001
36001-0081-17K
COVER SIDE,Left Hand,M D,BLACK
$138.51¢69 253
1
#36001
36001-0081-25T
COVER-SIDE,LH,C.D.RED
$138.66¢69 328
1
#36001D
36001-0081-25T
COVER-SIDE,LH,C.D.RED
$138.66¢69 328
1
#36001E
36001-0081-25U
COVER SIDE,Left Hand,C I BLUE
$138.86¢69 431
1
#36001
36001-0081-25U
COVER SIDE,Left Hand,C I BLUE
$138.86¢69 431
1
#36001
36001-0081-667
COVER SIDE,Left Hand,P C WHITE
$138.51¢69 253
1
#36001
36001-0081-726
COVER SIDE,Left Hand,M O BLUE
$138.51¢69 253
1
#36001H
36001-0081-727
COVER-SIDE,LH,M.D.GREEN
$130.27¢65 136
1
#36001
36001-0081-740
COVER SIDE,Left Hand,M TITANIUM
$138.51¢69 253
1
#36001P
36001-0082-25U
COVER SIDE,Right Hand,C I BLUE
$138.86¢69 431
1
#36001
36001-0081-816
COVER-SIDE,LH,C.F.RED
No Disponible
1
#36001
36001-0081-H8
COVER SIDE,Left Hand,EBONY
$113.94¢56 971
1
#36001
36001-0081-L1
COVER SIDE,Left Hand,C C RED
$138.51¢69 253
1
#36001
36001-0081-M4
COVER SIDE,Left Hand,L P BLUE
$138.51¢69 253
1
#36001K
36001-0082-17K
COVER SIDE,Right Hand,M D,BLACK
$138.51¢69 253
1
#36001K
36001-0082-25T
COVER-SIDE,RH,C.D.RED
$138.66¢69 328
1
#36001O
36001-0082-25T
COVER-SIDE,RH,C.D.RED
$138.66¢69 328
1
#36001K
36001-0082-25U
COVER SIDE,Right Hand,C I BLUE
$138.86¢69 431
1
#36014A
36014-0032
CASE CHAIN,Upper
$113.39¢56 695
1
#36014
36014-0031
CASE CHAIN,Lower
$51.29¢25 645
1
#92009
92009-1662
SCREW,6X14
$3.59¢1 794
1
#92009A
92009-1792
SCREW,TAPPING,4X14
$1.94¢972
1
#92015
92015-1700
NUT
$7.84¢3 922
1
#92015A
92015-1904
NUT,CLIP,6MM
$5.91¢2 956
1
#92039
92039-1251
RIVET
$1.30¢650
1
#92153
92153-1356
BOLT,SOCKET,6X22
$1.87¢937
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161
92161-0124
DAMPER
$2.98¢1 489
1
#92172
92172-0137
SCREW,6X26
$4.28¢2 139
1
#92200
92200-1388
WASHER,6.5X14X1
$2.10¢1 052
1
