FUEL TANK D8F DAF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

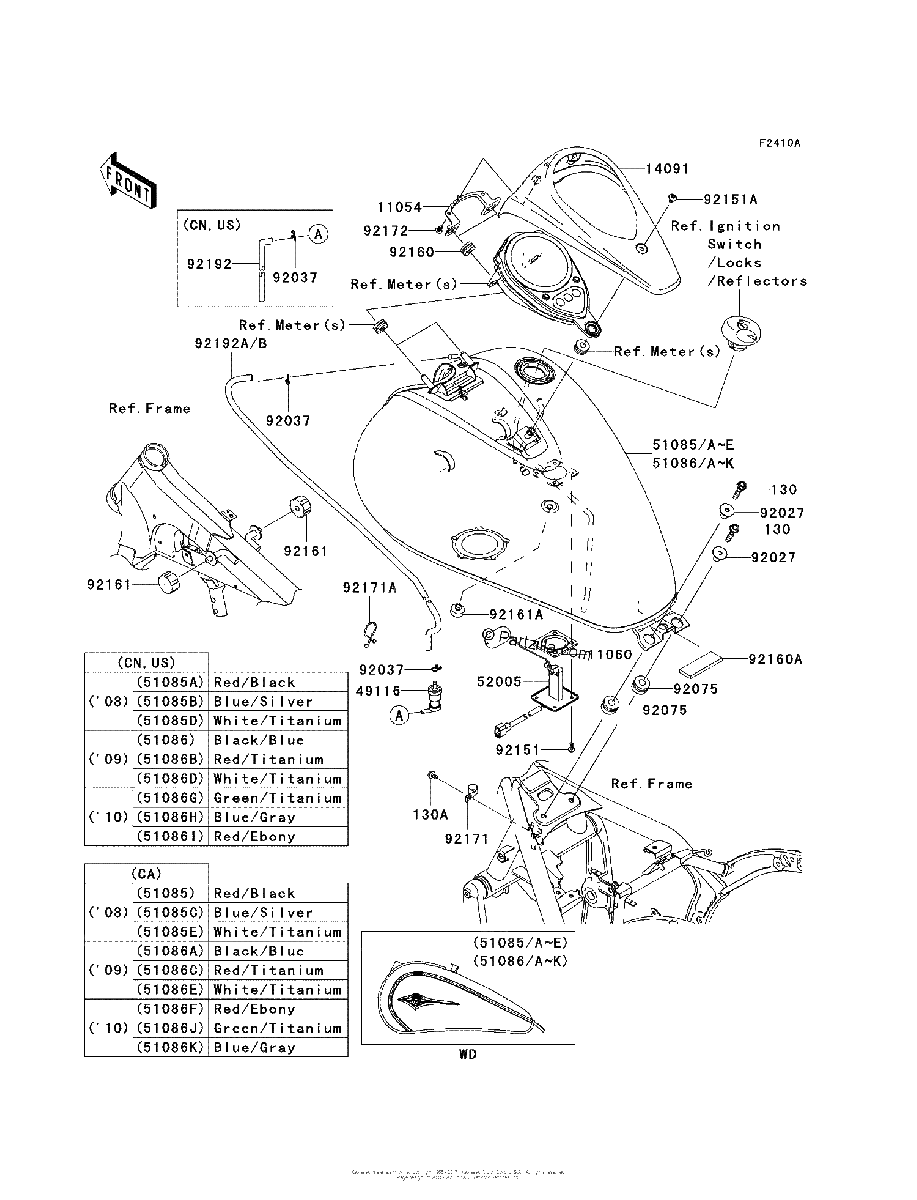

Diagrama de FUEL TANK D8F DAF

Repuestos

#130
130BA0830
BOLT-FLANGED,8X30
$1.72¢862
1
#130A
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.12¢1 058
1
#11054
11054-0034
BRACKET,METER,FR
$13.95¢6 975
1
#11060
11060-1952
GASKET,FUEL GAUGE
$20.55¢10 275
1
#14091
14091-0516
COVER,METER
$144.61¢72 306
1
#49116
49116-0014
VALVE Assembly,CHECK
$51.29¢25 645
1
#51085
51085-5298-11T
TANK COMP FUEL,WHITE/TITANIUM
No Disponible
1
#51085
51085-5297-11T
TANK COMP FUEL,WHITE/TITANIUM
No Disponible
1
#51085
51085-5296-18V
TANK COMP FUEL,BLUE/SILVER
No Disponible
1
#51085
51085-5295-18V
TANK COMP FUEL,BLUE/SILVER
No Disponible
1
#51085
51085-5294-18W
TANK COMP FUEL,RED/BLACK
No Disponible
1
#51085
51085-5265-18W
TANK COMP FUEL,RED/BLACK
No Disponible
1
#51086J
51086-5297-25A
TANK COMP FUEL,GREEN/TITANIUM
$1563.11¢781 557
1
#51086K
51086-5298-28E
TANK COMP FUEL,BLUE/GRAY
$1563.11¢781 557
1
#51086
51086-5298-28E
TANK COMP FUEL,BLUE/GRAY
$1563.11¢781 557
1
#51086
51086-5297-25A
TANK COMP FUEL,GREEN/TITANIUM
$1563.11¢781 557
1
#51086
51086-5296-28C
TANK-COMP-FUEL,RED/EBONY | [CN,US]
$1563.11¢781 557
1
#51086I
51086-5296-28C
TANK-COMP-FUEL,RED/EBONY | [CN,US]
$1563.11¢781 557
1
#51086
51086-5293-28E
TANK COMP FUEL,BLUE/GRAY
$1973.32¢986 660
1
#51086H
51086-5293-28E
TANK COMP FUEL,BLUE/GRAY
$1973.32¢986 660
1
#51086G
51086-5292-25A
TANK COMP FUEL,GREEN/TITANIUM
$1973.32¢986 660
1
#51086
51086-5046-26C
TANK COMP FUEL,BLACK/BLUE
No Disponible
1
#51086
51086-5047-26C
TANK COMP FUEL,BLACK/BLUE
No Disponible
1
#51086
51086-5048-26D
TANK COMP FUEL,RED/TITANIUM
No Disponible
1
#51086
51086-5049-26D
TANK COMP FUEL,RED/TITANIUM
$1973.32¢986 660
1
#51086
51086-5050-11T
TANK COMP FUEL,WHITE/TITANIUM
No Disponible
1
#51086
51086-5051-11T
TANK COMP FUEL,WHITE/TITANIUM
$1973.32¢986 660
1
#51086F
51086-5279-28C
TANK COMP FUEL,RED/EBONY
$1563.11¢781 557
1
#51086
51086-5279-28C
TANK COMP FUEL,RED/EBONY
$1563.11¢781 557
1
#51086
51086-5292-25A
TANK COMP FUEL,GREEN/TITANIUM
$1973.32¢986 660
1
#52005
52005-0083
GAUGE,FUEL
No Disponible
1
#92027
92027-1780
COLLAR,L=19.3
$5.91¢2 956
1
#92037
92037-147
CLAMP,TUBE | [CA]
$6.72¢3 358
1
#92075
92075-1736
DAMPER
$5.91¢2 956
1
#92151A
92151-1940
BOLT,SOCKET,6X12
$3.40¢1 702
1
#92151
92151-1599
BOLT,5X12
$1.47¢736
1
#92160A
92160-1323
DAMPER
$3.75¢1 874
1
#92160
92160-1162
DAMPER
$4.57¢2 283
1
#92161A
92161-1065
DAMPER,SEAT
$3.40¢1 702
1
#92161
92161-0293
DAMPER,FUEL TANK
$7.16¢3 582
1
#92171A
92171-1185
CLAMP
$2.18¢1 092
1
#92171
92171-0595
CLAMP
$5.32¢2 662
1
#92172
92172-0006
SCREW,TAPPING,5X14
$2.37¢1 185
1
#92192A
92192-0303
TUBE,FUEL TANK VALVE
$19.83¢9 913
1
#92192A
92192-0526
TUBE,FUEL TANK-VALVE | [CA]
$88.42¢44 212
1
#92192
92192-0215
TUBE,TANK-SEPARATOR,BLUE | [CN,US]
$11.86¢5 928
1
#92192B
92192-0526
TUBE,FUEL TANK-VALVE | [CA]
$88.42¢44 212
1
