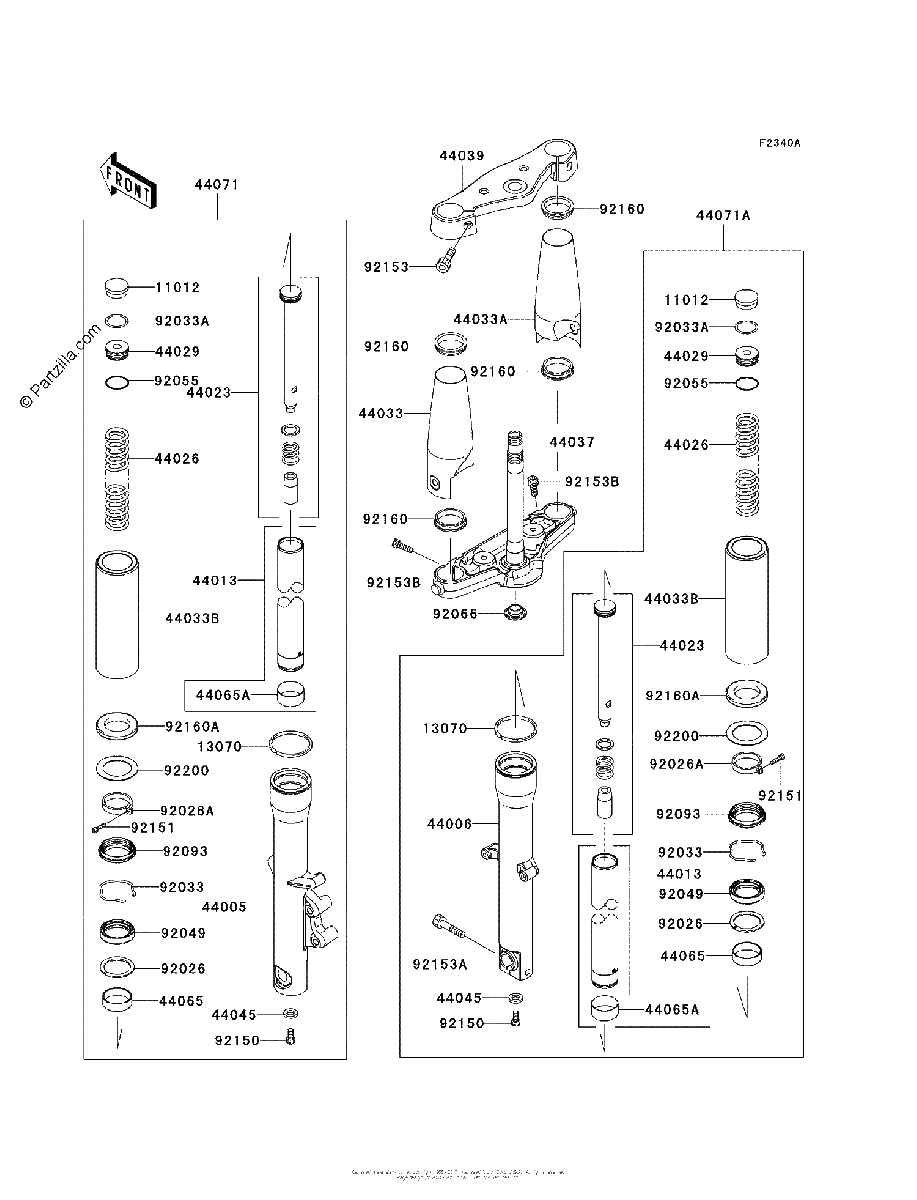

FRONT FORK JKAVN2D1 7A010828
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#11012
CAP,FORK TOP
$24.43¢12 213
#13070
GUIDE
$12.19¢6 095
#44005
PIPE-LEFT FORK OUTER
$458.62¢229 310
#44006
PIPE-RIGHT FORK OUTER
No Disponible
#44013
PIPE FORK INNER
No Disponible
#44023
CYLINDER SET FORK
$101.84¢50 922
#44026
SPRING FRONT FORK
$86.09¢43 045
#44029
SEAT-FORK SPRING
$34.62¢17 308
#44033
COVER FORK,Left Hand
$136.87¢68 437
#44033A
COVER FORK,Right Hand
$136.87¢68 437
#44033B
COVER FORK
$136.72¢68 362
#44037
HOLDER FORK UNDER,SILVER
$413.72¢206 862
#44039
HOLDER FORK UPPER
$371.81¢185 903
#44045
GASKET,FORK CYLINDER BOLT
$5.55¢2 777
#44065
BUSHING-FRONT FORK
$24.51¢12 253
#44065A
BUSHING FRONT FORK,INNER PIPE
$31.51¢15 755
#44071A
DAMPER Assembly,FORK,Right Hand
No Disponible
#44071
DAMPER-ASSY,FORK,LH
No Disponible
#92026
SPACER,FORK
$20.92¢10 459
#92026A
SPACER
$16.12¢8 061
#92033A
RING-SNAP,SPRING SEAT
$6.12¢3 059
#92033
RING-SNAP
$5.85¢2 927
#92049
SEAL OIL
$24.49¢12 247
#92055
RING O,SPRING SEAT
$6.72¢3 358
#92066
PLUG
$12.56¢6 279
#92093
SEAL,DUST
$24.84¢12 420
#92150
BOLT,SOCKET,8X18
$9.04¢4 520
#92151
BOLT,SOCKET,4X16
$2.18¢1 092
#92153B
BOLT,SOCKET,10X25
$4.45¢2 225
#92153A
BOLT
$9.90¢4 951
#92153
BOLT,SOCKET,8X30
$11.25¢5 623
#92160A
DAMPER
$8.36¢4 180
#92160
DAMPER
$3.39¢1 696
#92200
WASHER
$8.03¢4 013
