FRAME FITTINGS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

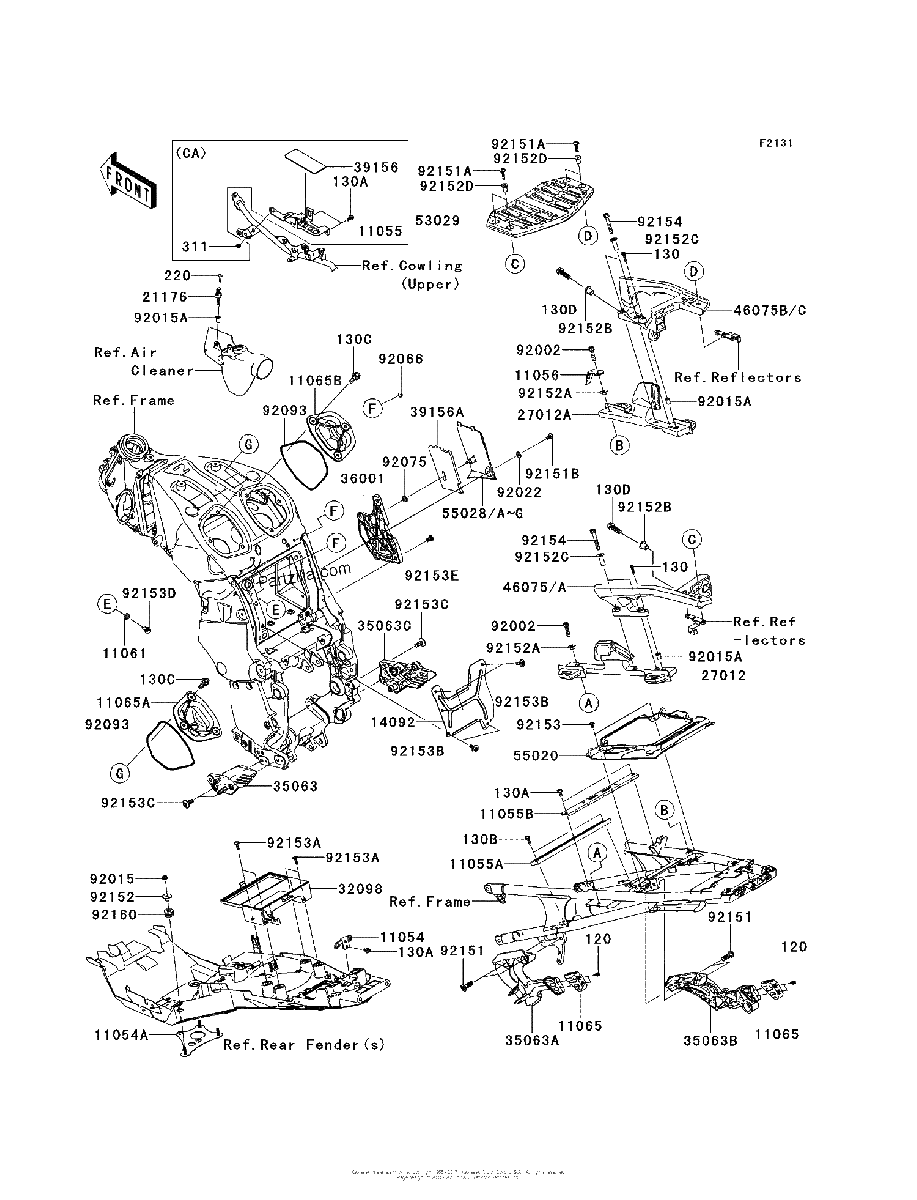

Diagrama de FRAME FITTINGS

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.43¢713
1
#130C
130BA0622
BOLT-FLANGED,6X22
$1.20¢598
1
#130B
130BA0616
BOLT FLANGED,6X16
$1.16¢581
1
#130A
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
1
#130
130BA0525
BOLT-FLANGED,5X25
$0.68¢339
1
#130D
130BA1035
BOLT-FLANGED,10X35
$2.73¢1 363
1
#220
220AB0516
SCREW-PAN-CROS,5X16
$1.53¢765
1
#311
311BA0600
NUT-HEX,6MM
$1.89¢943
1
#11054
11054-1194
BRACKET,DOWN SENSOR
$15.50¢7 751
1
#11054A
11054-1197
BRACKET,REGULATOR
$22.22¢11 109
1
#11055B
11055-1890
BRACKET,FUEL TANK
$26.05¢13 024
1
#11055A
11055-0129
BRACKET,RR FENDER,CROSS
$27.53¢13 766
1
#11055
11055-0112
BRACKET,CANISTER
$35.72¢17 859
1
#11056
11056-0063
BRACKET,SIGNAL LAMP RELAY
$14.46¢7 228
1
#11061
11061-0107
GASKET
$2.18¢1 092
1
#11065B
11065-0223
CAP,AIR CLEANER,RH
$51.29¢25 645
1
#11065A
11065-0222
CAP,AIR CLEANER,Left Hand
$53.68¢26 841
1
#11065
11065-0166
CAP
$10.63¢5 313
1
#14092
14092-0025
COVER,BACK BATTERY
$49.89¢24 944
1
#21176
21176-0048
SENSOR,AIR TEMPERATURE
$26.09¢13 047
1
#27012
27012-0123
HOOK,LH
No Disponible
1
#27012A
27012-0124
HOOK,Right Hand
No Disponible
1
#32098
32098-0016
CASE TOOL
$33.94¢16 968
1
#35063
35063-0357-458
STAY,Front,Left Hand,P SILVER
$139.01¢69 506
1
#35063A
35063-0359-W9
STAY,Rear,Left Hand,F BLACK
$190.82¢95 410
1
#35063B
35063-0360-W9
STAY,Rear,Right Hand,F BLACK
$193.31¢96 657
1
#35063C
35063-0637-458
STAY,Front,Right Hand,P SILVER
$159.63¢79 816
1
#36001
36001-0188-18R
COVER SIDE,BATTERY,Right Hand,F S Black
$148.42¢74 209
1
#39156
39156-0330
PAD,CANISTER BRACKET | [CA]
$4.21¢2 105
1
#39156A
39156-0544
PAD,BATTERY COWLING
$8.48¢4 238
1
#46075B
46075-0067-458
GRIP,TAIL,Right Hand,P SILVER
$205.82¢102 908
1
#46075C
46075-0067-458
GRIP,TAIL,Right Hand,P SILVER
$205.82¢102 908
1
#46075B
46075-0067-18T
GRIP,TAIL,Right Hand,F S BLACK
$196.25¢98 124
1
#46075
46075-0066-18T
GRIP,TAIL,Left Hand,F S BLACK
$196.25¢98 124
1
#46075
46075-0066-458
GRIP,TAIL,Left Hand,P SILVER
$205.82¢102 908
1
#46075A
46075-0066-458
GRIP,TAIL,Left Hand,P SILVER
$205.82¢102 908
1
#53029
53029-0076
CARRIER
No Disponible
1
#55020
55020-0410
GUARD,TAIL COVER
$41.78¢20 890
1
#55028
55028-0342-L1
COWLING,BATTERY,C C RED
$86.53¢43 263
1
#55028
55028-0326-27Z
COWLING,BATTERY,C N BLUE
No Disponible
1
#55028
55028-0342-10H
COWLING,BATTERY,P M GRAY
No Disponible
1
#55028
55028-0342-17M
COWLING,BATTERY,A SILVER
$88.06¢44 028
1
#55028
55028-0342-33M
COWLING,BATTERY,C A RED
$88.06¢44 028
1
#55028
55028-0342-660
COWLING,BATTERY,M S BLACK
$77.77¢38 887
1
#55028
55028-0342-C6
COWLING,BATTERY,M N BLUE
$86.53¢43 263
1
#55028
55028-0342-H8
COWLING,BATTERY,EBONY
$88.06¢44 028
1
#92002
92002-1844
BOLT,SOCKET,8X30
No Disponible
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92022
92022-1143
WASHER,6.5X16X1
$3.59¢1 794
1
#92066
92066-1547
PLUG
$3.43¢1 713
1
#92075
92075-1011
DAMPER,6X16X7
$6.72¢3 358
1
#92093
92093-1507
SEAL
$4.37¢2 185
1
#92151A
92151-1611
BOLT,SOCKET,6X25
$2.01¢1 006
1
#92151B
92151-1654
BOLT,SOCKET,6X14
$1.49¢747
1
#92151
92151-1372
BOLT,SOCKET,10X30
$6.97¢3 484
1
#92152C
92152-0610
COLLAR
$6.31¢3 157
1
#92152A
92152-0532
COLLAR
$4.45¢2 225
1
#92152B
92152-0534
COLLAR
$4.45¢2 225
1
#92152D
92152-0627
COLLAR
$4.24¢2 122
1
#92152
92152-0365
COLLAR
$1.24¢621
1
#92153
92153-0410
BOLT,SOCKET,6X10
$2.37¢1 185
1
#92153E
92153-1810
BOLT,SOCKET,8X15
$3.58¢1 788
1
#92153D
92153-1676
BOLT,FLANGED,6X14
$1.87¢937
1
#92153C
92153-1621
BOLT,SOCKET,8X20
$1.87¢937
1
#92153B
92153-1423
BOLT,6X16
$1.24¢621
1
#92153A
92153-0478
BOLT,6X18
$2.17¢1 087
1
#92154
92154-0344
BOLT,SOCKET,8X50
$2.15¢1 075
1
#92160
92160-1162
DAMPER
$4.57¢2 283
1
