CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

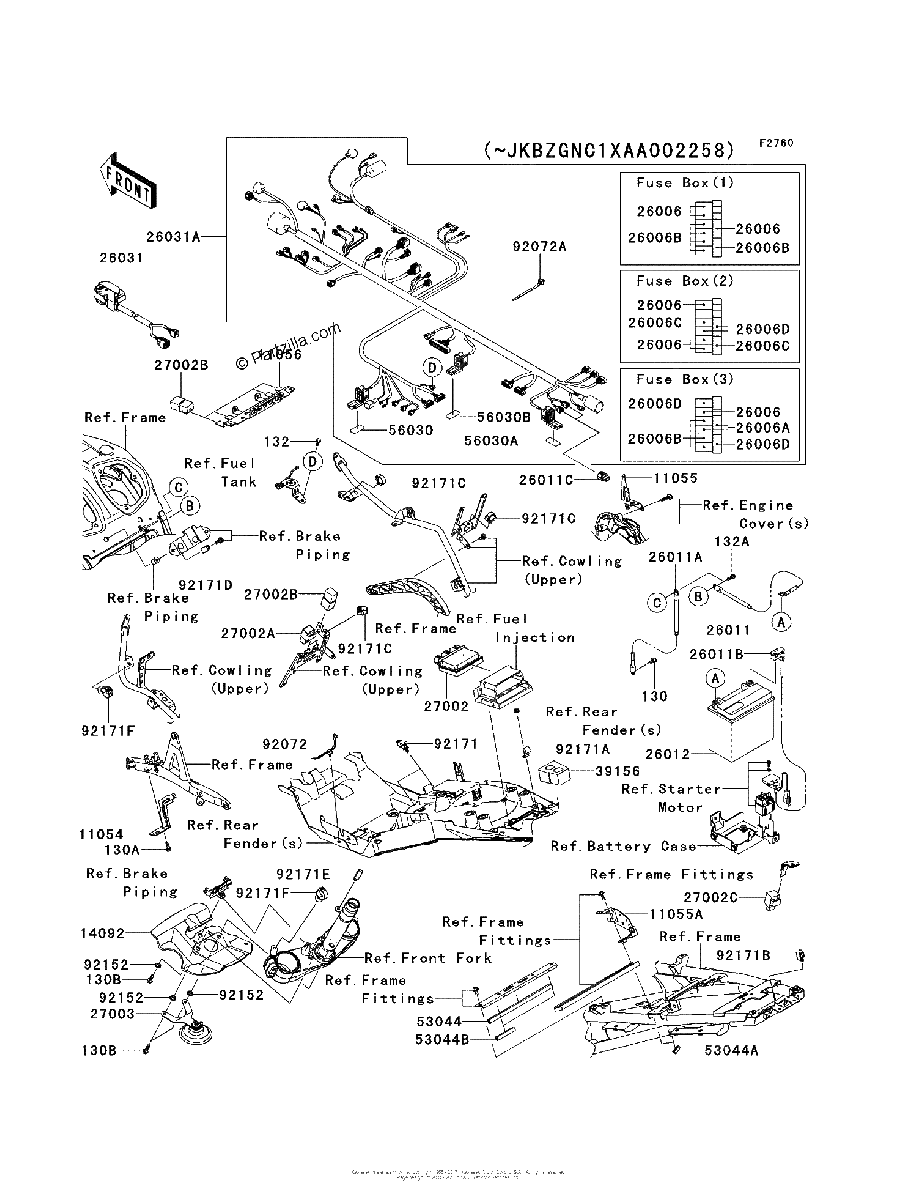

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.16¢581
1
#130A
130BA0616
BOLT FLANGED,6X16
$1.16¢581
1
#130B
130BA0618
BOLT-FLANGED,6X18
$1.40¢701
1
#132
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.16¢581
1
#132A
132BA0616
BOLT FLANGED SMALL,6X16
$1.39¢696
1
#11054
11054-1131
BRACKET,SUB FRAME,Front
$9.53¢4 767
1
#11055
11055-1824
BRACKET,COUPLER
$23.60¢11 799
1
#11055
11055-1818
BRACKET,ABS
$11.79¢5 894
1
#11055A
11055-1824
BRACKET,COUPLER
$23.60¢11 799
1
#11056
11056-0152
BRACKET,RELAY
$26.69¢13 346
1
#14092
14092-0021
COVER,RADIATOR
$45.98¢22 988
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006A
26006-1077
FUSE,MINI BLADE,5A,TAN
$4.66¢2 329
1
#26006B
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26006C
26006-1079
FUSE,MINI BLADE,20A,YELLOW
$4.45¢2 225
1
#26006D
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26011
26011-0087
WIRE LEAD,BATTERY( )
$32.51¢16 255
1
#26011A
26011-0255
WIRE-LEAD,BATTERY(-)
$32.86¢16 428
1
#26011B
26011-0261
WIRE-LEAD,BATTERY(+)
$63.10¢31 550
1
#26011C
26011-0275
WIRE-LEAD,CONNECTOR COVER
$14.46¢7 228
1
#26012
26012-1409
BATTERY,FTZ14 BS,12V 14AH
No Disponible
1
#26031
26031-0987
HARNESS,MAIN
No Disponible
1
#26031A
26031-0909
HARNESS,MAIN
$1329.56¢664 781
1
#26031
26031-0802
HARNESS,SUB,ABS
$297.32¢148 661
1
#27002B
27002-1086
RELAY Assembly
$38.66¢19 332
1
#27002C
27002-1090
RELAY-ASSY,TURN SIGNAL
$88.04¢44 022
1
#27002A
27002-0012
RELAY Assembly
$46.84¢23 420
1
#27002
27002-0007
RELAY-ASSY,BOX
No Disponible
1
#27003
27003-0069
HORN
$89.63¢44 815
1
#39156
39156-0597
PAD
$6.43¢3 214
1
#53044A
53044-0031
TRIM,L=22
$2.92¢1 461
1
#53044B
53044-1249
TRIM,L=60
$6.15¢3 076
1
#53044
53044-0022
TRIM,L=220
$13.95¢6 975
1
#56030B
56030-0363
LABEL,FUSE BOX3
$4.07¢2 035
1
#56030A
56030-0312
LABEL,FUSE BOX2
$4.07¢2 035
1
#56030
56030-0110
LABEL,FUSE BOX1
$3.76¢1 880
1
#92072A
92072-1414
BAND
$3.40¢1 702
1
#92072
92072-0066
BAND
$2.92¢1 461
1
#92152
92152-0445
COLLAR,6.5X10X5.6
$4.48¢2 242
1
#92171A
92171-0255
CLAMP,HARNESS
$8.03¢4 013
1
#92171B
92171-0290
CLAMP
$3.54¢1 771
1
#92171C
92171-0782
CLAMP
$3.58¢1 788
1
#92171D
92171-0813
CLAMP
$9.11¢4 554
1
#92171E
92171-0864
CLAMP
$4.45¢2 225
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.46¢1 231
1
#92171F
92171-1706
CLAMP
$10.70¢5 348
1
