COWLING CENTER CAF CCF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

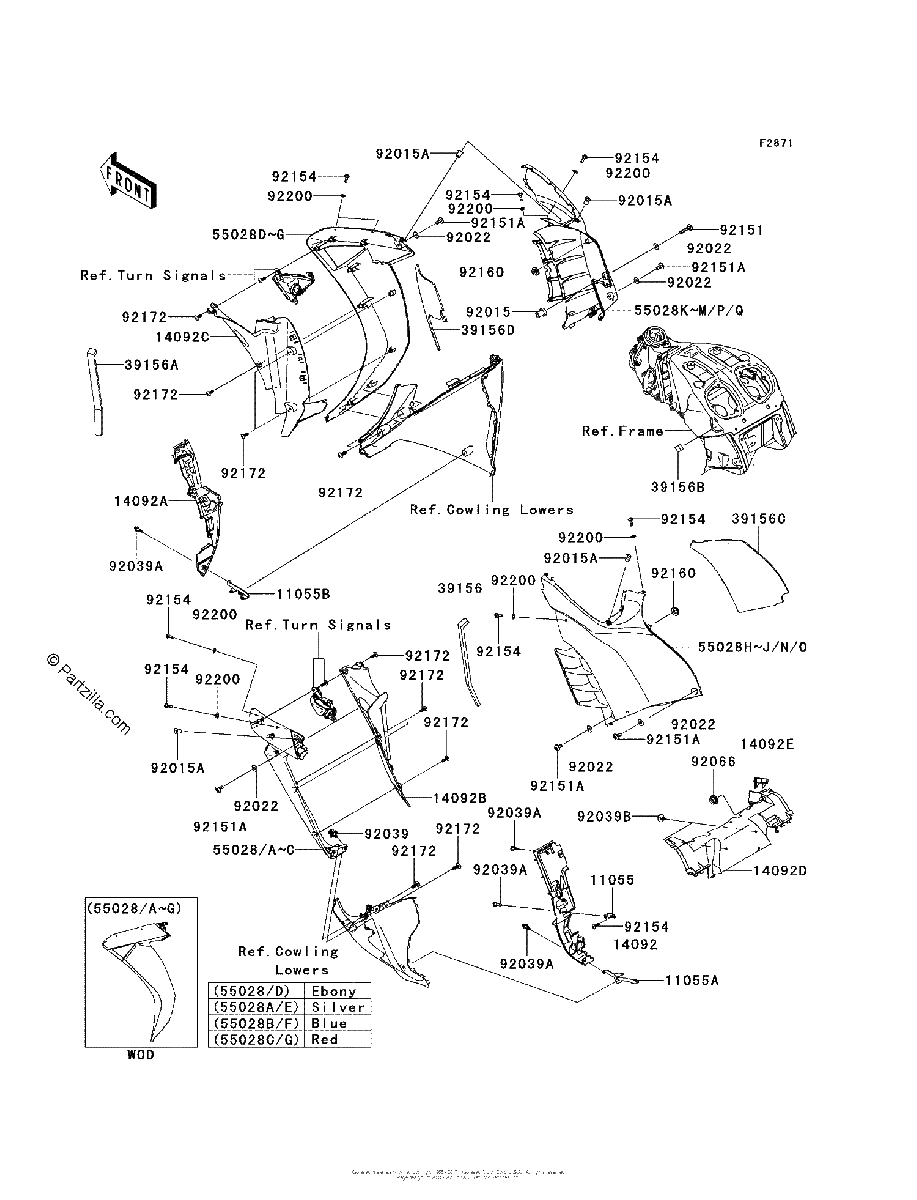

Diagrama de COWLING CENTER CAF CCF

Repuestos

#11055
11055-1837
BRACKET,RESERVOIR
$3.79¢1 897
1
#11055A
11055-1838
BRACKET,Lower COWLING,Left Hand
$12.67¢6 336
1
#11055B
11055-1839
BRACKET,Lower COWLING,Right Hand
$6.19¢3 093
1
#14092
14092-0098
COVER,HEAT GUARD,Left Hand
$62.35¢31 176
1
#14092A
14092-0099
COVER,HEAT GUARD,Right Hand
$62.35¢31 176
1
#14092B
14092-0102
COVER,SHROUD,Left Hand
$84.41¢42 205
1
#14092C
14092-0103
COVER,SHROUD,Right Hand
$84.41¢42 205
1
#14092D
14092-0135
COVER,HEAT GUARD,Front
$97.16¢48 582
1
#14092E
14092-0136
COVER,RADIATOR CAP
$12.41¢6 204
1
#39156B
39156-0594
PAD,20X20X14
$3.48¢1 742
1
#39156
39156-0591
PAD,SHROUD,Left Hand
$2.99¢1 495
1
#39156A
39156-0593
PAD,SHROUD,Right Hand
$2.99¢1 495
1
#39156C
39156-0595
PAD,CNT COWLING,Left Hand
$23.40¢11 701
1
#39156D
39156-0596
PAD,CNT COWLING,Right Hand
$23.40¢11 701
1
#55028H
55028-0328-H8
COWLING,CNT,Left Hand,EBONY
No Disponible
1
#55028K
55028-0329-17M
COWLING,CNT,RH,A.SILV
No Disponible
1
#55028K
55028-0329-27Z
COWLING,CNT,Right Hand,C N BLUE
No Disponible
1
#55028M
55028-0329-27Z
COWLING,CNT,Right Hand,C N BLUE
No Disponible
1
#55028K
55028-0329-H8
COWLING,CNT,RH,EBONY
No Disponible
1
#55028H
55028-0388-33M
COWLING,CNT,Left Hand,C A RED
$518.21¢259 106
1
#55028H
55028-0388-H8
COWLING,CNT,Left Hand,EBONY
$518.21¢259 106
1
#55028K
55028-0389-33M
COWLING,CNT,Right Hand,C A RED
$518.21¢259 106
1
#55028K
55028-0389-H8
COWLING,CNT,Right Hand,EBONY
$518.21¢259 106
1
#55028J
55028-0328-27Z
COWLING,CNT,Left Hand,C N BLUE
No Disponible
1
#55028H
55028-0328-27Z
COWLING,CNT,Left Hand,C N BLUE
No Disponible
1
#55028H
55028-0328-17M
COWLING,CNT,LH,A.SILV
No Disponible
1
#55028D
55028-0321-H8
COWLING,SIDE,Right Hand,EBONY
$351.67¢175 835
1
#55028
55028-0320-17M
COWLING,SIDE,LH,A.SILVER
$351.67¢175 835
1
#55028B
55028-0320-27Z
COWLING,SIDE,Left Hand,C N BLUE
$287.30¢143 652
1
#55028
55028-0320-27Z
COWLING,SIDE,Left Hand,C N BLUE
$287.30¢143 652
1
#55028
55028-0320-33M
COWLING,SIDE,Left Hand,C A RED
$351.67¢175 835
1
#55028
55028-0320-H8
COWLING,SIDE,LH,EBONY
$348.15¢174 076
1
#55028D
55028-0321-17M
COWLING,SIDE,Right Hand,A SILVER
$351.67¢175 835
1
#55028D
55028-0321-27Z
COWLING,SIDE,Right Hand,C N BLUE
$368.31¢184 155
1
#55028F
55028-0321-27Z
COWLING,SIDE,Right Hand,C N BLUE
$368.31¢184 155
1
#55028D
55028-0321-33M
COWLING,SIDE,Right Hand,C A RED
$351.67¢175 835
1
#92015
92015-1692
NUT,RUBBER,6MM
$6.72¢3 358
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92022
92022-1143
WASHER,6.5X16X1
$3.59¢1 794
1
#92039
92039-0014
RIVET,HOLE 8MM
$2.74¢1 368
1
#92039A
92039-0051
RIVET
$4.24¢2 122
1
#92039B
92039-1289
RIVET
$2.37¢1 185
1
#92066
92066-1306
PLUG
$4.97¢2 484
1
#92151
92151-1605
BOLT,SOCKET,6X30
$2.01¢1 006
1
#92151A
92151-1654
BOLT,SOCKET,6X14
$1.49¢747
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92172
92172-0238
SCREW,TAPPING,5X16
$1.00¢500
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
