GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

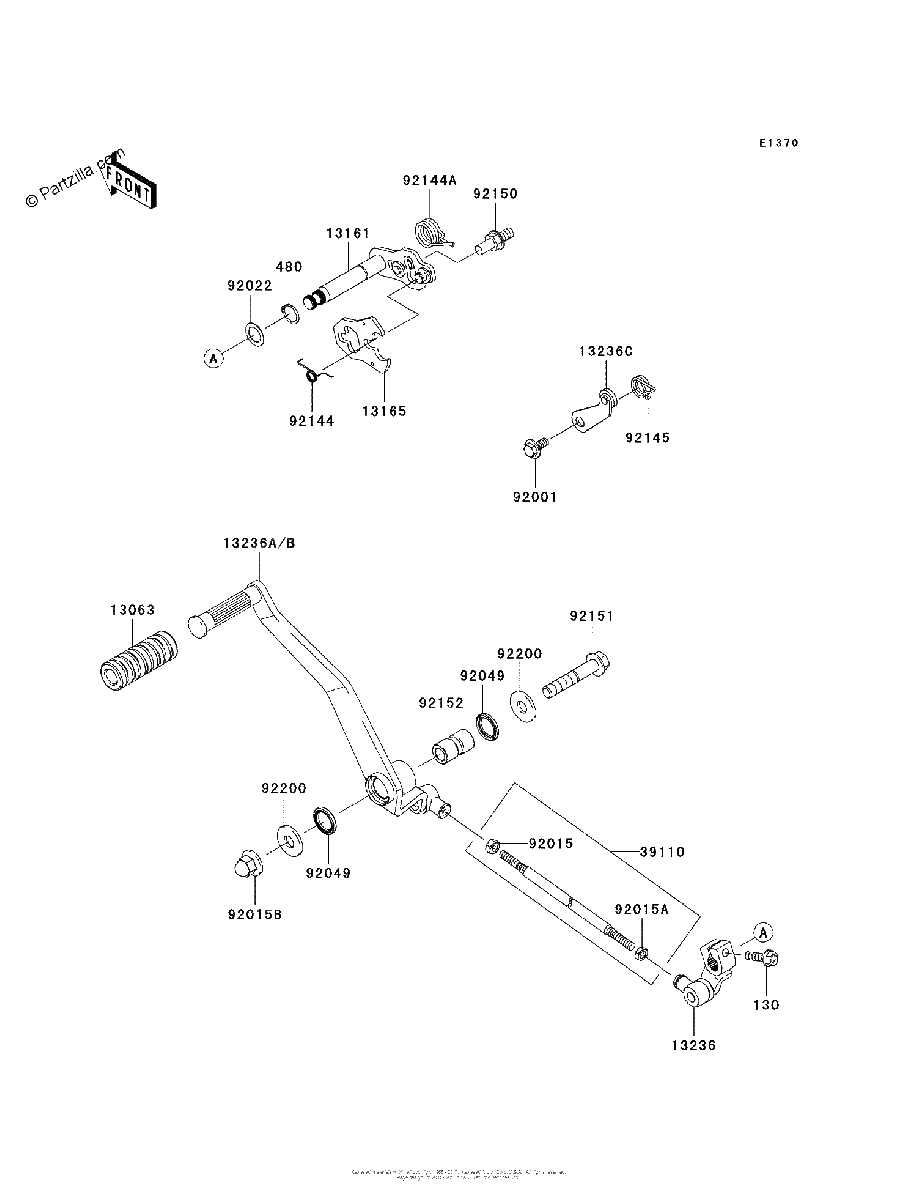

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#130
130CB0620
BOLT-FLANGED,6X20
$7.61¢3 806
1
#480
480J1300
CIRCLIP-TYPE-C,13MM
$3.90¢1 950
1
#13063
13063-002
DAMPER,PEDAL
$4.47¢2 238
1
#13161
13161-0046
LEVER COMP CHANGE SHAFT
$82.81¢41 406
1
#13165
13165-1151
PAWL,CHANGE LEVER
$15.67¢7 837
1
#13236
13236-0132
LEVER COMP
$64.90¢32 450
1
#13236C
13236-1126
LEVER COMP,POSITION
$15.16¢7 581
1
#13236A
13236-0172
LEVER COMP
$158.55¢79 275
1
#13236B
13236-0172
LEVER COMP
$158.55¢79 275
1
#13236A
13236-0133
LEVER COMP
$171.26¢85 631
1
#39110
39110-1100
ROD-ASSY-TIE
$19.64¢9 819
1
#92001
92001-1715
BOLT,FLANGED,6X14
$12.00¢6 000
1
#92015B
92015-1649
NUT,10MM
$4.94¢2 469
1
#92015A
92015-1444
NUT,LEFT HANDED,6MM
$4.65¢2 325
1
#92015
92015-1443
NUT,6MM
$3.90¢1 950
1
#92022
92022-1224
WASHER,13.2X20X0.5
$4.29¢2 144
1
#92049
92049-0093
SEAL OIL
$5.56¢2 781
1
#92144A
92144-1074
SPRING,CHANGE PEDAL RETURN
$9.35¢4 675
1
#92144
92144-1029
SPRING
$7.72¢3 863
1
#92145
92145-0462
SPRING,RETURN
$8.45¢4 225
1
#92150
92150-1869
BOLT,RETURN SPRING
$9.80¢4 900
1
#92151
92151-1785
BOLT,FLANGED,10X54
$4.33¢2 163
1
#92152
92152-0531
COLLAR,10.5X17X30.5
$18.65¢9 325
1
#92200
92200-0352
WASHER,11X26X2.6
$3.05¢1 525
1
