COWLING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

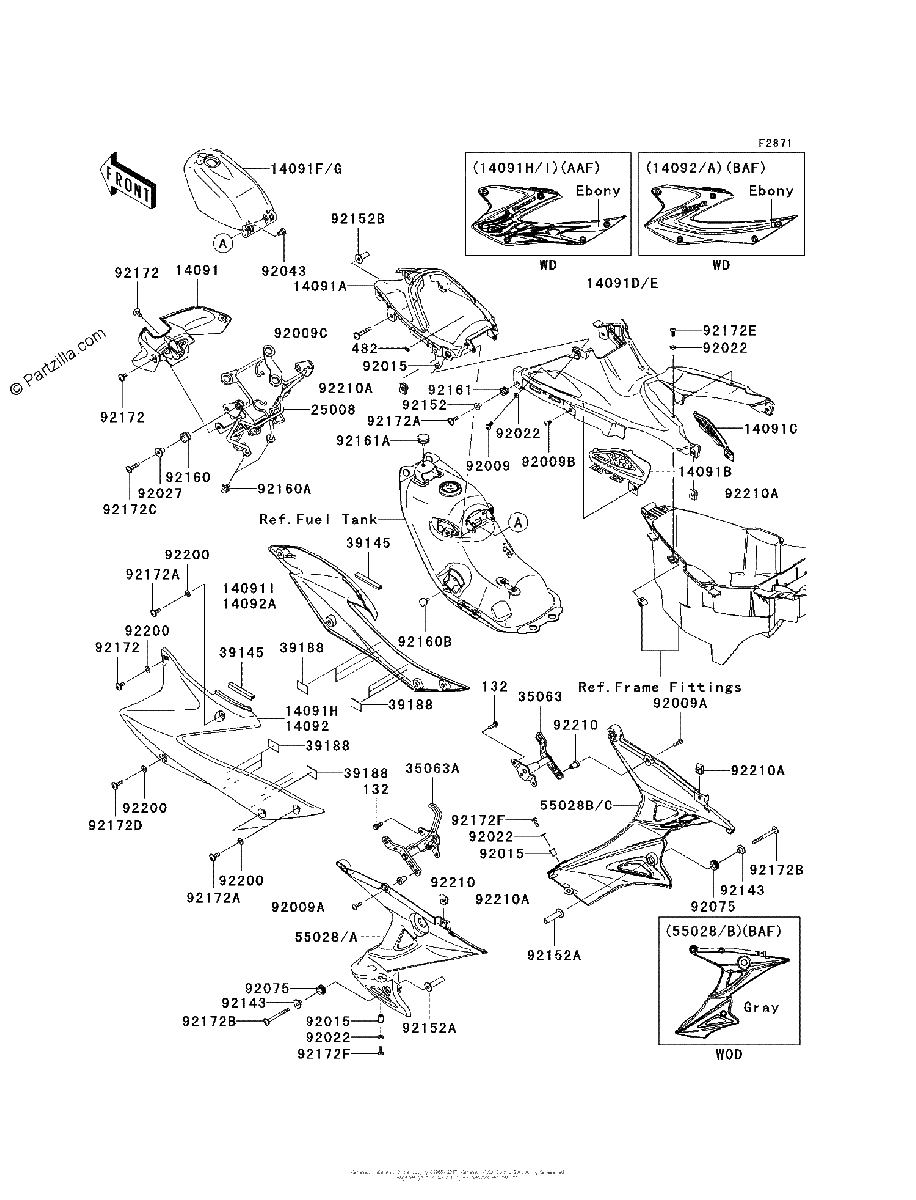

Diagrama de COWLING

Repuestos

#132
132BB0616
BOLT-FLANGED-SMALL,6X16
$2.12¢1 058
1
#482
482EA5000
CIRCLIP-TYPE-E
$1.24¢621
1
#14091
14091-0777
COVER,HORN
$8.58¢4 289
1
#14091A
14091-0783
COVER,FUEL TANK,OUTER
$8.43¢4 215
1
#14091B
14091-0888
COVER,LEG,Left Hand
$4.40¢2 202
1
#14091C
14091-0889
COVER,LEG,Right Hand
$4.40¢2 202
1
#14091D
14091-1720-146
COVER,LEG,M B GRAY
$43.76¢21 879
1
#14091D
14091-1720-777
COVER,LEG,L GREEN
$52.97¢26 485
1
#14091F
14091-1723-146
COVER,FUEL TANK,M B GRAY
$23.24¢11 621
1
#14091F
14091-1723-777
COVER,FUEL TANK,L.GREEN
$22.51¢11 253
1
#14091H
14091-5487-QE
COVER,SHROUD,Left Hand,EBONY
$89.30¢44 649
1
#14091I
14091-5488-QE
COVER,SHROUD,Right Hand,EBONY
$89.30¢44 649
1
#14092
14092-5082-QE
COVER,SHROUD,Left Hand,EBONY
$61.72¢30 860
1
#14092A
14092-5083-QE
COVER,SHROUD,Right Hand,EBONY
$61.72¢30 860
1
#25008
25008-0030
BRACKET-METER
$73.47¢36 737
1
#35063
35063-0517
STAY,Right Hand
$19.00¢9 499
1
#35063A
35063-0614
STAY,Left Hand
$26.10¢13 052
1
#39145
39145-0038
TRIM SEAL,L=70
$1.83¢914
1
#39188
39188-0007
TAPE
$1.93¢966
1
#55028
55028-0269-146
COWLING,Lower,Left Hand,M B GRAY
$62.03¢31 015
1
#55028
55028-0269-777
COWLING,LWR,LH,L.GREEN
$50.47¢25 237
1
#55028B
55028-0270-146
COWLING,Lower,Right Hand,M B GRAY
$61.39¢30 694
1
#55028B
55028-0270-777
COWLING,Lower,Right Hand,L GREEN
$49.73¢24 863
1
#92009C
92009-1898
SCREW,6X40
$2.36¢1 179
1
#92009B
92009-1831
SCREW,TAPPING 5X10
$2.18¢1 092
1
#92009A
92009-1656
SCREW,5X20,BLACK
$3.63¢1 817
1
#92009
92009-1655
SCREW,5X18
$3.94¢1 972
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92022
92022-1521
WASHER,NYLON,5.3X11.5X1.5
$3.59¢1 794
1
#92027
92027-1920
COLLAR,L=14.1
$5.99¢2 996
1
#92043
92043-0158
PIN
$5.68¢2 841
1
#92075
92075-1634
DAMPER
$4.28¢2 139
1
#92143
92143-1016
COLLAR,L=9.6
$5.60¢2 800
1
#92152A
92152-0607
COLLAR
$7.77¢3 887
1
#92152B
92152-0608
COLLAR
$5.69¢2 846
1
#92152
92152-0035
COLLAR
$0.90¢448
1
#92160A
92160-1303
DAMPER
$0.86¢431
1
#92160B
92160-1821
DAMPER,BRAKE STOPPER
$1.12¢558
1
#92160
92160-1167
DAMPER,10X20X12
$4.28¢2 139
1
#92161A
92161-0581
DAMPER
$1.79¢897
1
#92161
92161-0031
DAMPER
$0.77¢385
1
#92172A
92172-0192
SCREW,6X18
$11.66¢5 831
1
#92172B
92172-0256
SCREW,6X65
$1.18¢592
1
#92172
92172-0055
SCREW,6X14
$0.51¢253
1
#92172C
92172-0348
SCREW,6X28
No Disponible
1
#92172D
92172-0373
SCREW,6X22
$1.59¢793
1
#92172E
92172-0461
SCREW,5X14
$0.91¢454
1
#92172F
92172-0462
SCREW,5X16
$0.91¢454
1
#92200
92200-1388
WASHER,6.5X14X1
$2.10¢1 052
1
#92210
92210-0001
NUT,5MM
$5.57¢2 783
1
#92210A
92210-0218
NUT,6MM
$2.17¢1 087
1
