CARBURETOR EAF CA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

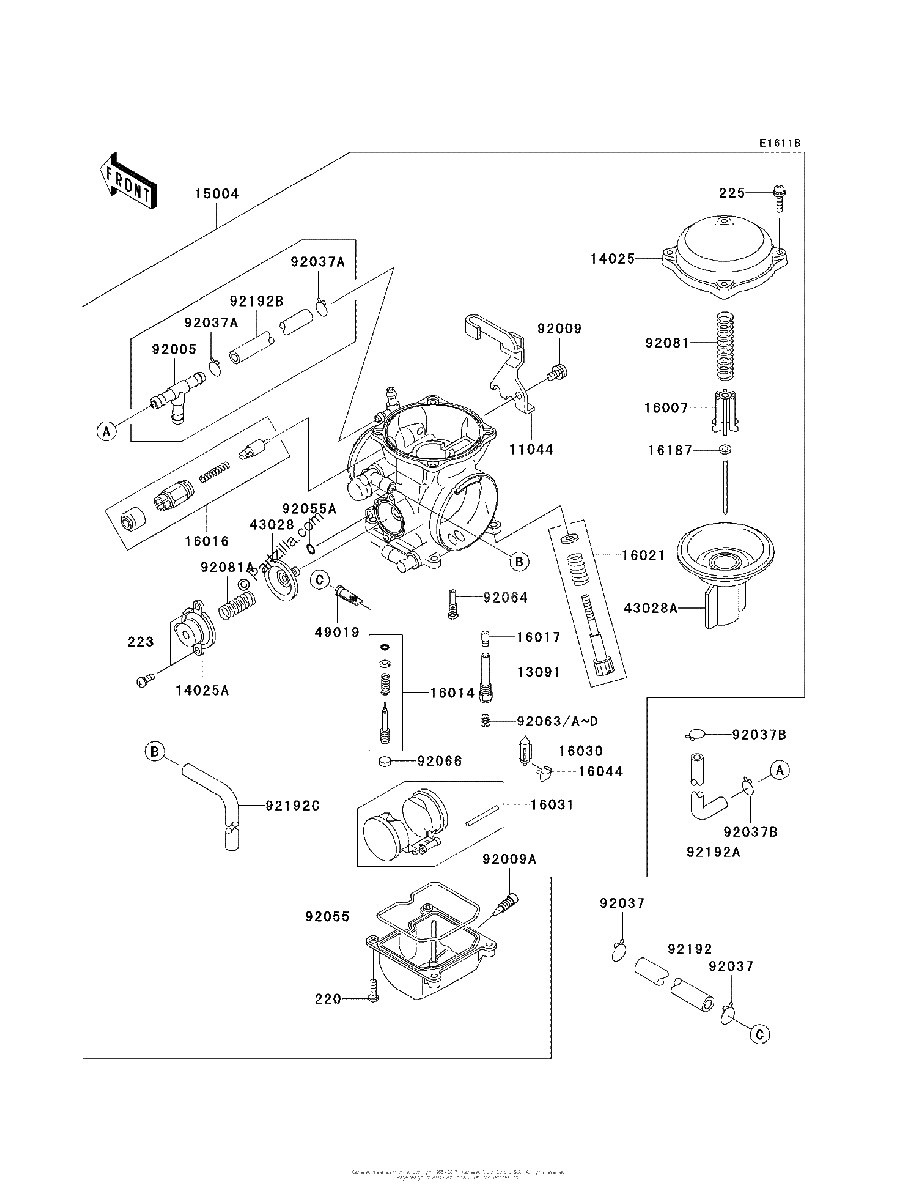

Diagrama de CARBURETOR EAF CA

Repuestos

#220
220AA0414
SCREW-PAN-CROS,4X14 | [CN,US]
$4.20¢2 099
1
#223
223C0408
SCREW-PAN-WS-CROS,4X8 | [CA]
No Disponible
1
#225
225AB0418
SCREW PAN WSP CROS,4X18
$3.98¢1 989
1
#11044
11044-1353
BRACKET,THROTTLE CABLE | [CN,US]
$65.53¢32 763
1
#13091
13091-1425
HOLDER,NEEDLE JET
$31.10¢15 548
1
#14025
14025-1890
COVER,MIXING CHAMBER | [CN,US]
$86.58¢43 292
1
#14025A
14025-1903
COVER,AIR CUT VALVE
$64.27¢32 137
1
#15004
15004-0072
CARBURETOR Assembly,CVK40
$910.67¢455 337
1
#16007
16007-1113
SEAT SPRING,DIAPHRAGM VALVE
$20.99¢10 494
1
#16014
16014-1083
SCREW PILOT AIR
$23.09¢11 546
1
#16016
16016-1087
PLUNGER
$92.95¢46 477
1
#16017
16017-1254
JET NEEDLE,#6
No Disponible
1
#16021
16021-1201
SCREW-THROTTLE STOP | [CN,US]
$51.90¢25 950
1
#16030
16030-1057
VALVE-FLOAT | [CN,US]
$49.37¢24 685
1
#16031
16031-1077
FLOAT
$56.13¢28 066
1
#16044
16044-007
CLAMP,FLOAT VALVE | [CN,US]
$7.24¢3 622
1
#16187
16187-0275
NEEDLE JET,N6NJ
$41.16¢20 579
1
#43028
43028-1053
DIAPHRAGM,5.9MM,AIR CUT VALVE
No Disponible
1
#43028A
43028-1062
DIAPHRAGM,VALVE | [CN,US]
$220.35¢110 176
1
#49019
49019-1097
FILTER FUEL
$8.43¢4 215
1
#92005
92005-1112
FITTING,FUEL,T-TYPE | [CA]
$12.83¢6 417
1
#92009A
92009-1551
SCREW,DRAIN,6X0.75
$9.04¢4 520
1
#92009
92009-1365
SCREW,5X10 | [CN,US]
$6.72¢3 358
1
#92037
92037-1271
CLAMP,12.5MM
$2.07¢1 035
1
#92037B
92037-1610
CLAMP
$1.70¢851
1
#92037A
92037-1477
CLAMP,TUBE | [CN,US]
$3.94¢1 972
1
#92055
92055-1222
RING-O,FLOAT CHAMBER | [CN,US]
$15.75¢7 877
1
#92055A
92055-1245
RING-O | [CN,US]
$5.07¢2 536
1
#92063
92063-1013
JET-MAIN,#140 | [CN,US] (OPTION)
$12.83¢6 417
1
#92063
92063-1016
JET MAIN,#142
$14.42¢7 210
1
#92063A
92063-1016
JET MAIN,#142
$14.42¢7 210
1
#92063
92063-1017
JET MAIN,#145
$12.83¢6 417
1
#92063B
92063-1017
JET MAIN,#145
$12.83¢6 417
1
#92063C
92063-1324
JET MAIN,#148
$14.42¢7 210
1
#92063
92063-1324
JET MAIN,#148
$14.42¢7 210
1
#92063D
92063-1330
JET MAIN,#150
$14.42¢7 210
1
#92063
92063-1330
JET MAIN,#150
$14.42¢7 210
1
#92064
92064-1108
JET-PILOT,#40 | [CN,US]
$15.39¢7 694
1
#92066
92066-1051
PLUG,PILOT AIR SCREW,6.9X2
$4.61¢2 306
1
#92081
92081-1718
SPRING,DIAPHRAGM VALVE
$28.00¢14 001
1
#92081A
92081-1719
SPRING,AIR CUT VALVE | [CN,US]
$12.98¢6 492
1
#92192
92192-0453
TUBE,FUEL,6.2X13.2X170 | [CN,US]
$27.76¢13 881
1
#92192A
92192-0480
TUBE,5X9X40&20
$17.28¢8 642
1
#92192B
92192-0588
TUBE,L=70
$15.64¢7 820
1
#92192C
92192-0589
TUBE,L=360
$32.45¢16 226
1
