FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

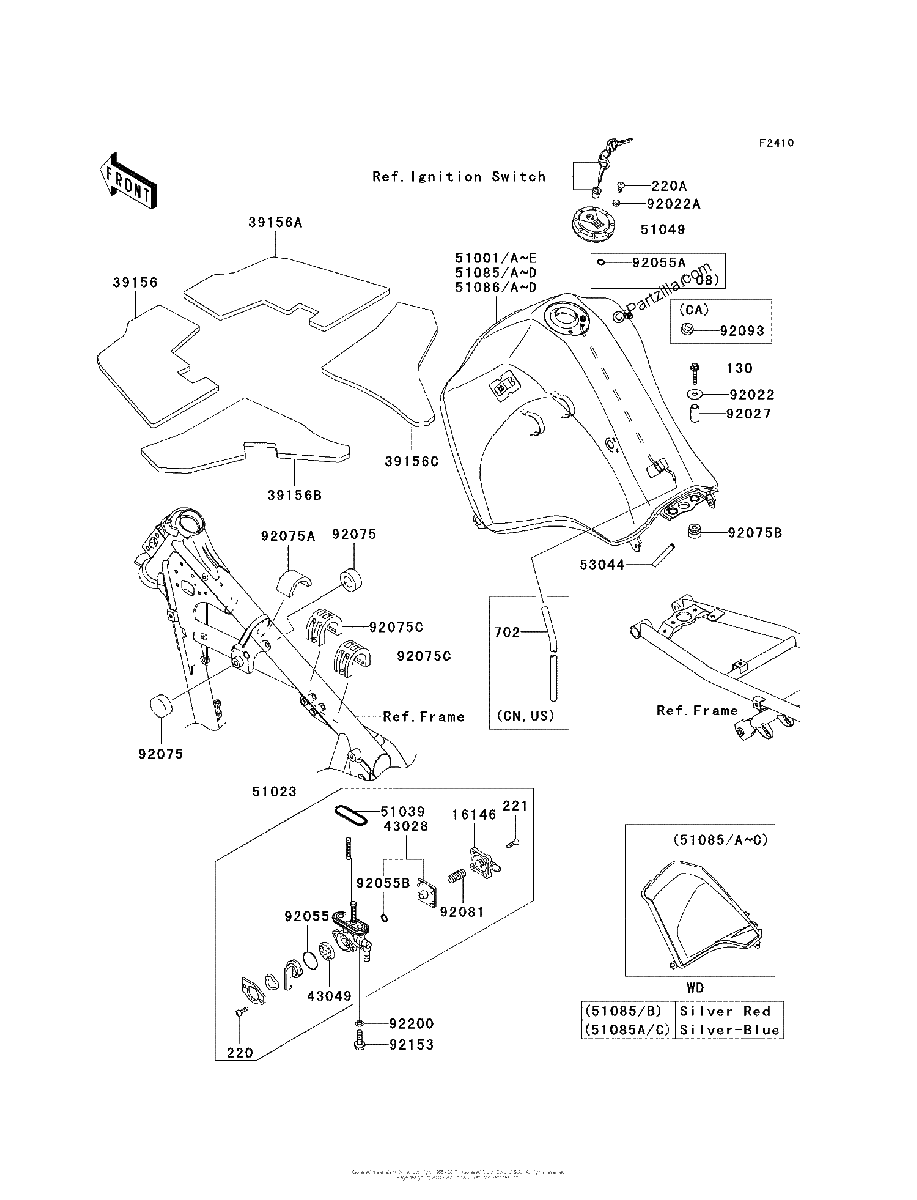

Diagrama de FUEL TANK

Repuestos

#130
130BB0630
BOLT FLANGED,6X30
$4.05¢2 024
1
#220
220AA0308
SCREW PAN CROS,3X8
$0.64¢322
1
#220A
220AA0510
SCREW-PAN-CROS,5X10
$0.77¢385
1
#221
221AA0414
SCREW CSK CROS,4X14
$3.48¢1 742
1
#702
702A05620
TUBE RUBBER,5X8X620
$32.20¢16 100
1
#16146
16146-1010
COVER-ASSY,TAP DIAPHRAGM
$25.61¢12 805
1
#39156
39156-0254
PAD,FUEL TANK,Front,Left Hand
$42.92¢21 459
1
#39156C
39156-0257
PAD,FUEL TANK,RR,RH
$42.92¢21 459
1
#39156A
39156-0255
PAD,FUEL TANK,FR,RH
$42.92¢21 459
1
#39156B
39156-0256
PAD,FUEL TANK,Rear,Left Hand
$42.92¢21 459
1
#43028
43028-1033
DIAPHRAGM
$22.17¢11 086
1
#43049
43049-1103
PACKING
$5.19¢2 593
1
#51001
51001-0288-683
TANK COMP FUEL,O BLUE
$1436.03¢718 014
1
#51001
51001-0288-H8
TANK COMP FUEL,EBONY
$1436.00¢718 002
1
#51001
51001-0288-H1
TANK COMP FUEL,S RED
$1436.03¢718 014
1
#51001
51001-0288-G2
TANK COMP FUEL,C P RED
$1436.00¢718 002
1
#51001
51001-0288-620
TANK COMP FUEL,C T BLUE
$1436.00¢718 002
1
#51001
51001-0230-IG
TANK COMP FUEL,EBONY
$1193.45¢596 724
1
#51001D
51001-0288-620
TANK COMP FUEL,C T BLUE
$1436.00¢718 002
1
#51001A
51001-0288-G2
TANK COMP FUEL,C P RED
$1436.00¢718 002
1
#51001C
51001-0288-H8
TANK COMP FUEL,EBONY
$1436.00¢718 002
1
#51023
51023-0003
TAP-ASSY,FUEL
$126.21¢63 106
1
#51039
51039-003
RING,TAP FLANGED
$5.65¢2 823
1
#51049
51049-1134
CAP TANK,FUEL
No Disponible
1
#51085
51085-5268-IG
TANK COMP FUEL,EBONY
$1090.06¢545 031
1
#51085
51085-5263-X1
TANK COMP FUEL,G SILVER
$1195.09¢597 546
1
#51085
51085-5264-X1
TANK COMP FUEL,G SILVER
No Disponible
1
#51085
51085-5261-X1
TANK COMP FUEL,G SILVER
$1081.89¢540 943
1
#51085
51085-5262-X1
TANK COMP FUEL,G SILVER
$1195.09¢597 546
1
#51086C
51086-5077-620
TANK COMP FUEL,C T BLUE
$1238.15¢619 074
1
#51086B
51086-5077-H8
TANK COMP FUEL,EBONY
$1238.15¢619 074
1
#51086
51086-5077-620
TANK COMP FUEL,C T BLUE
$1238.15¢619 074
1
#51086
51086-5077-683
TANK COMP FUEL,O BLUE
$1193.45¢596 724
1
#51086
51086-5077-G2
TANK COMP FUEL,C P RED
$1238.15¢619 074
1
#51086
51086-5077-H1
TANK COMP FUEL,S RED
$1193.45¢596 724
1
#51086
51086-5077-H8
TANK COMP FUEL,EBONY
$1238.15¢619 074
1
#53044
53044-1249
TRIM,L=60
$6.15¢3 076
1
#92022A
92022-1977
WASHER,5.1X10X1.0
$3.31¢1 656
1
#92022
92022-125
WASHER,6.5X20X1.6
$1.30¢650
1
#92027
92027-1856
COLLAR,6.8X10X20
$5.65¢2 823
1
#92055A
92055-1552
RING O,ID=9
$2.89¢1 443
1
#92055B
92055-1664
RING O
$4.57¢2 283
1
#92055
92055-1085
RING O,TAP LEVER
$4.61¢2 306
1
#92075A
92075-1507
DAMPER
$10.68¢5 342
1
#92075B
92075-1660
DAMPER
$7.41¢3 703
1
#92075C
92075-1862
DAMPER,FUEL TANK
No Disponible
1
#92075
92075-101
DAMPER,FUEL TANK
$5.60¢2 800
1
#92081
92081-1240
SPRING,TAP DIAPHRAGM
$3.56¢1 783
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92153
92153-0746
BOLT,FLANGED,6X20
$1.93¢966
1
#92200
92200-0117
WASHER,6.5X11.5X0.8
$2.22¢1 110
1
