RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

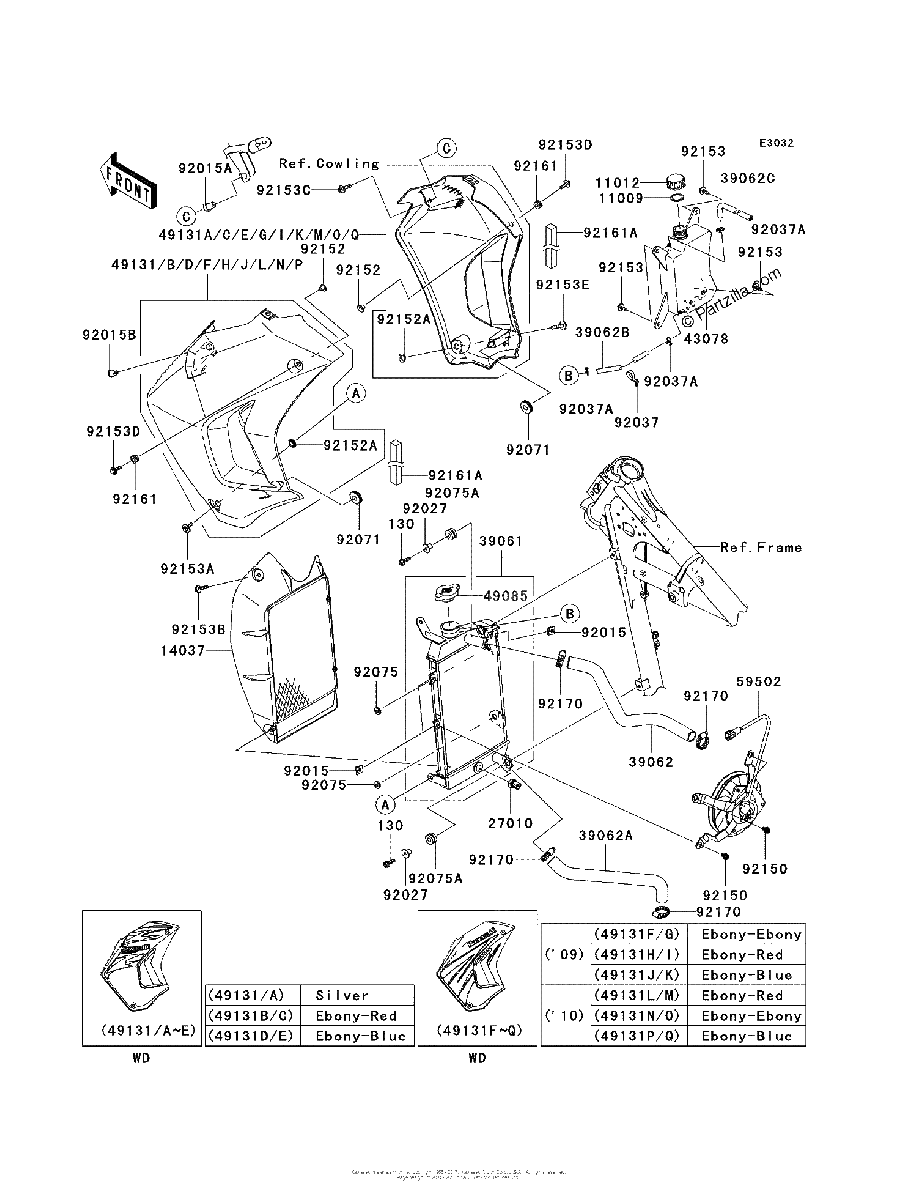

Diagrama de RADIATOR

Repuestos

#130
130BA0620
BOLT-FLANGED,6X20
$1.54¢771
1
#11009
11009-1145
GASKET,RESERVOIR TANK CAP
$1.30¢650
1
#11012
11012-1084
CAP
$1.51¢753
1
#14037
14037-0056
SCREEN
$64.84¢32 419
1
#27010
27010-1443
SWITCH
$141.81¢70 903
1
#39061
39061-0098
RADIATOR-ASSY
$1171.38¢585 689
1
#39062
39062-0148
HOSE-COOLING,HEAD-RAD.
$58.25¢29 124
1
#39062C
39062-1220
HOSE COOLING,RESERVOIR
$25.64¢12 823
1
#39062B
39062-1195
HOSE-COOLING,RESERVOI
$25.64¢12 823
1
#39062A
39062-0149
HOSE-COOLING,W/P-RAD.
$42.52¢21 258
1
#43078
43078-1083
RESERVOIR
$66.77¢33 384
1
#49085
49085-1070
CAP-ASSY-PRESSURE,P1.1
$52.92¢26 462
1
#49131O
49131-5288-H8
SHROUD ENGINE,Right Hand,EBONY
$386.20¢193 102
1
#49131A
49131-5288-H8
SHROUD ENGINE,Right Hand,EBONY
$386.20¢193 102
1
#49131P
49131-5289-H8
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#49131
49131-5289-H8
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#49131Q
49131-5290-H8
SHROUD ENGINE,Right Hand,EBONY
$386.20¢193 102
1
#49131A
49131-5290-H8
SHROUD ENGINE,Right Hand,EBONY
$386.20¢193 102
1
#49131N
49131-5287-H8
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#49131
49131-5287-H8
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#49131A
49131-5286-H8
SHROUD ENGINE,Right Hand,EBONY
$368.70¢184 351
1
#49131
49131-5111-X1
SHROUD ENGINE,Left Hand,G SILVER
$386.20¢193 102
1
#49131
49131-5113-IG
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#49131
49131-5285-H8
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#49131A
49131-5112-X1
SHROUD ENGINE,Right Hand,G SILVER
$386.20¢193 102
1
#49131
49131-5156-H8
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#49131
49131-5152-H8
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#49131
49131-5154-H8
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#49131
49131-5115-IG
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#49131A
49131-5114-IG
SHROUD ENGINE,Right Hand,EBONY
$386.20¢193 102
1
#49131M
49131-5286-H8
SHROUD ENGINE,Right Hand,EBONY
$368.70¢184 351
1
#49131A
49131-5116-IG
SHROUD ENGINE,Right Hand,EBONY
$386.20¢193 102
1
#49131A
49131-5153-H8
SHROUD ENGINE,Right Hand,EBONY
$386.20¢193 102
1
#49131A
49131-5155-H8
SHROUD ENGINE,Right Hand,EBONY
$386.20¢193 102
1
#49131A
49131-5157-H8
SHROUD ENGINE,Right Hand,EBONY
$386.20¢193 102
1
#49131L
49131-5285-H8
SHROUD ENGINE,Left Hand,EBONY
$386.20¢193 102
1
#59502
59502-0024
FAN Assembly
No Disponible
1
#92015A
92015-1692
NUT,RUBBER,6MM
$6.72¢3 358
1
#92015B
92015-1700
NUT
$7.84¢3 922
1
#92015
92015-1487
NUT
$4.36¢2 179
1
#92027
92027-1183
COLLAR,6.5X10X14.1
$5.01¢2 507
1
#92037A
92037-147
CLAMP,TUBE | [CA]
$6.72¢3 358
1
#92037
92037-1163
CLAMP,SPEED,L=58
$5.91¢2 956
1
#92071
92071-1043
GROMMET
$4.69¢2 346
1
#92075A
92075-209
DAMPER
$4.28¢2 139
1
#92075
92075-1138
DAMPER,8MM
$3.31¢1 656
1
#92150
92150-1186
BOLT,6X12
$3.06¢1 529
1
#92152A
92152-1235
COLLAR
$3.78¢1 892
1
#92152
92152-0237
COLLAR,6.3X8.3X9.2
$5.12¢2 559
1
#92153A
92153-0864
BOLT,6X20
$6.80¢3 398
1
#92153B
92153-1008
BOLT,FLANGED WP,6X25
$2.32¢1 162
1
#92153C
92153-1457
BOLT,FLANGED,6X30
$2.92¢1 461
1
#92153D
92153-1523
BOLT,6X20
No Disponible
1
#92153E
92153-1895
BOLT,6X30
$3.78¢1 892
1
#92153
92153-0863
BOLT,6X16
$1.87¢937
1
#92161A
92161-0509
DAMPER
$20.79¢10 396
1
#92161
92161-0056
DAMPER
$2.85¢1 426
1
#92170
92170-1033
CLAMP,COOLING HOSE
$13.79¢6 894
1
