CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

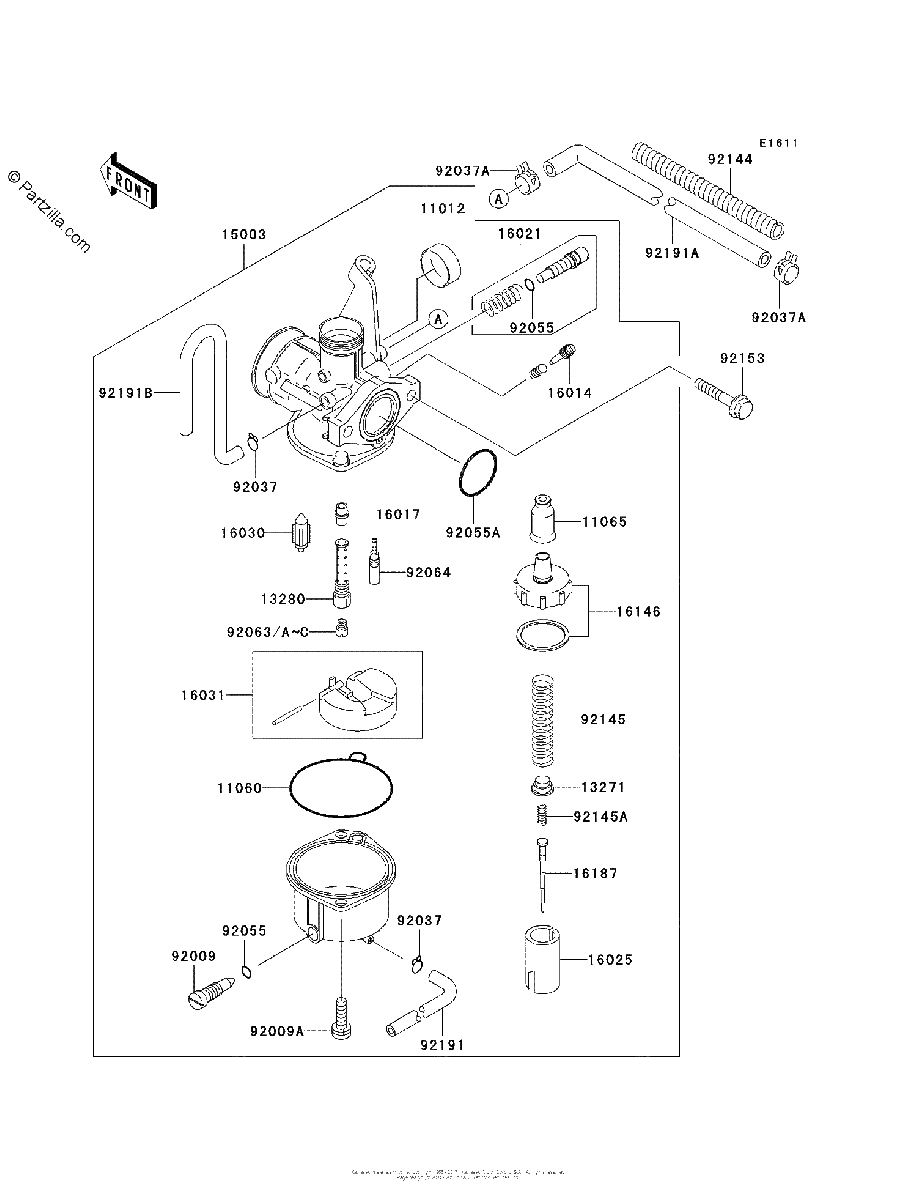

Diagrama de CARBURETOR

Repuestos

#11012
11012-1940
CAP,CHOKE
No Disponible
1
#11060
11060-1700
GASKET,FLOAT CHAMBER
No Disponible
1
#11065
11065-1235
CAP,TOP COVER
$3.81¢1 906
1
#13271
13271-1668
PLATE
$9.06¢4 531
1
#13280
13280-1282
HOLDER,NEEDLE JET
$16.63¢8 313
1
#15003
15003-1678
CARBURETOR Assembly
$165.30¢82 650
1
#16014
16014-1093
SCREW PILOT AIR
$18.38¢9 188
1
#16017
16017-1399
JET NEEDLE
$51.66¢25 831
1
#16021
16021-1203
SCREW-THROTTLE STOP
$17.56¢8 781
1
#16025
16025-1225
VALVE-THROTTLE
$90.38¢45 188
1
#16030
16030-0002
VALVE FLOAT,FLOAT
No Disponible
1
#16031
16031-1107
FLOAT
$34.90¢17 450
1
#16146
16146-1229
COVER Assembly,CARBURETOR TOP
$6.29¢3 144
1
#16187
16187-1175
NEEDLE JET,NANL
$30.04¢15 019
1
#92009
92009-1057
SCREW,DRAIN
$9.03¢4 513
1
#92009A
92009-1750
SCREW
$4.59¢2 294
1
#92037A
92037-1601
CLAMP
$14.42¢7 212
1
#92037
92037-1142
CLAMP,TUBE
$4.29¢2 144
1
#92055
92055-1053
RING O
$4.22¢2 113
1
#92055A
92055-1541
RING-O
$2.55¢1 275
1
#92063
92063-1397
JET MAIN,#82
$14.05¢7 025
1
#92063
92063-1393
JET-MAIN,#78
$14.84¢7 419
1
#92063
92063-1395
JET MAIN,#75
$14.05¢7 025
1
#92063A
92063-1395
JET MAIN,#75
$14.05¢7 025
1
#92063B
92063-1396
JET-MAIN,#80
$14.05¢7 025
1
#92063
92063-1396
JET-MAIN,#80
$14.05¢7 025
1
#92063C
92063-1397
JET MAIN,#82
$14.05¢7 025
1
#92064
92064-1204
JET PILOT,#35
$8.75¢4 375
1
#92144
92144-1994
SPRING
$4.35¢2 175
1
#92145
92145-1407
SPRING,THROTTLE VALVE
$9.06¢4 531
1
#92145A
92145-1408
SPRING,THROTTLE VALVE PLATE
$1.21¢606
1
#92153
92153-1187
BOLT,FLANGED,6X30
$3.64¢1 819
1
#92191
92191-1142
TUBE,3.5X6.5X298
$13.10¢6 550
1
#92191A
92191-1204
TUBE,FUEL
$4.96¢2 481
1
#92191B
92191-1768
TUBE,3.5X6.5X350
$6.56¢3 281
1
