TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

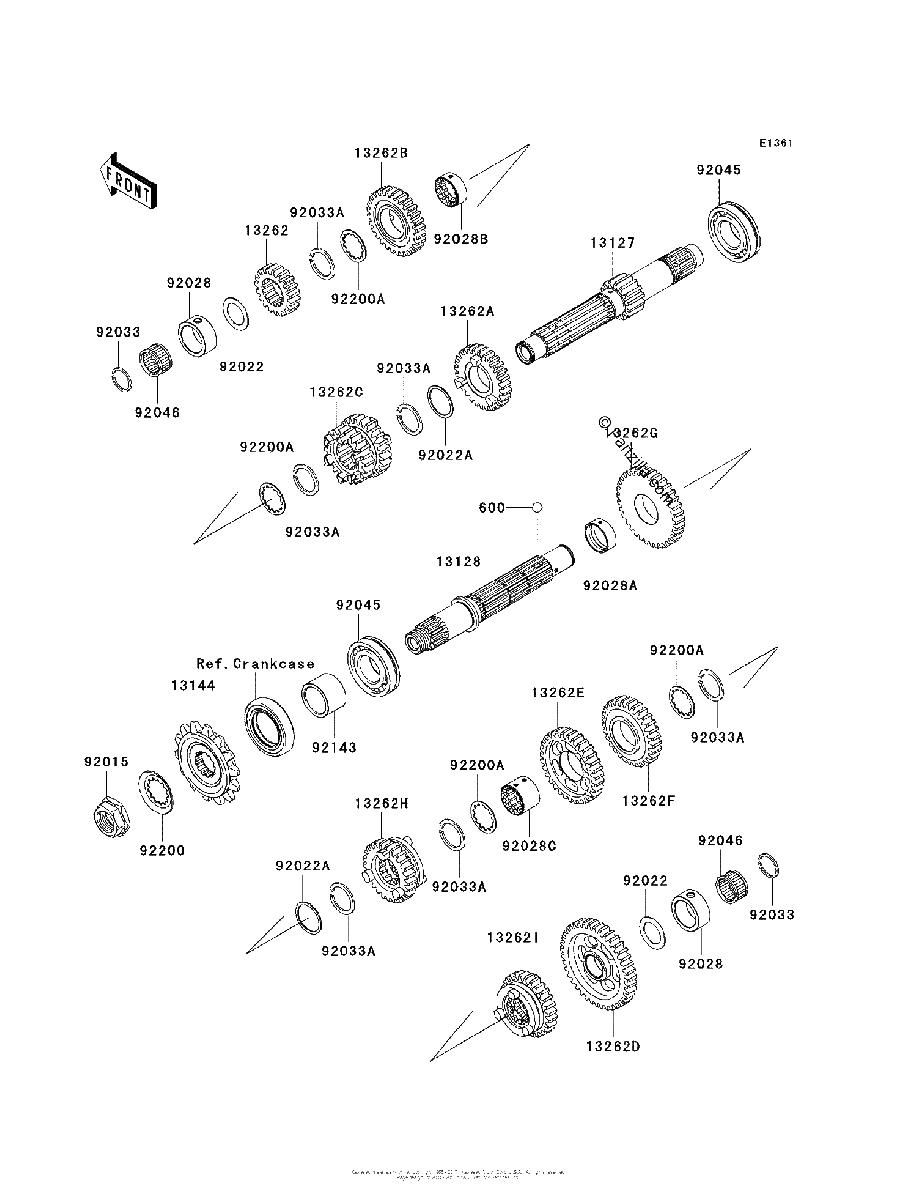

Diagrama de TRANSMISSION

Repuestos

#600
600A0500
BALL-STEEL,5/32
$0.89¢444
1
#13127
13127-0051
SHAFT TRANSMISSION INPUT,15T
$269.77¢134 888
1
#13128
13128-0037
SHAFT TRANSMISSION OUTPUT
$217.69¢108 844
1
#13144
13144-0054
SPROCKET-OUTPUT,14T
No Disponible
1
#13262I
13262-0470
GEAR,OUTPUT 5TH,27T
$155.35¢77 675
1
#13262
13262-0461
GEAR,INPUT 2ND,19T
$77.64¢38 819
1
#13262H
13262-0469
GEAR,OUTPUT TOP,25T
$143.99¢71 994
1
#13262G
13262-0468
GEAR,OUTPUT 2ND,34T
$104.39¢52 194
1
#13262F
13262-0467
GEAR,OUTPUT 4TH,29T
$104.39¢52 194
1
#13262E
13262-0466
GEAR,OUTPUT 3RD,31T
$104.39¢52 194
1
#13262D
13262-0465
GEAR,OUTPUT LOW,39T
$143.80¢71 900
1
#13262C
13262-0464
GEAR,INPUT 3RD4TH,22T25T
$168.49¢84 244
1
#13262B
13262-0463
GEAR,INPUT TOP,28T
$124.36¢62 181
1
#13262A
13262-0462
GEAR,INPUT 5TH,27T
$111.15¢55 575
1
#92015
92015-1963
NUT,20MM
$14.74¢7 369
1
#92022A
92022-161
WASHER,25.3X30X1
$10.55¢5 275
1
#92022
92022-112
WASHER,20.5X30X1,STEEL
$8.80¢4 400
1
#92028C
92028-1858
BUSHING,OUTPUT 3RD&4TH GEAR
$23.04¢11 519
1
#92028B
92028-1857
BUSHING,INPUT TOP GEAR
$19.60¢9 800
1
#92028A
92028-1564
BUSHING,9.4X25X28
$23.85¢11 925
1
#92028
92028-1426
BUSHING,25X33X14
$48.59¢24 294
1
#92033A
92033-026
RING SNAP,24MM
$8.73¢4 363
1
#92033
92033-015
RING-SNAP,20MM
$4.24¢2 119
1
#92045
92045-1013
BEARING BALL,#6205NX3
$25.69¢12 844
1
#92046
92046-044
BEARING-NEEDLE,20R2513P
$24.86¢12 431
1
#92143
92143-1968
COLLAR,SPROCKET
$24.40¢12 200
1
#92200
92200-0506
WASHER
No Disponible
1
#92200A
92200-1389
WASHER
$2.19¢1 094
1
