CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

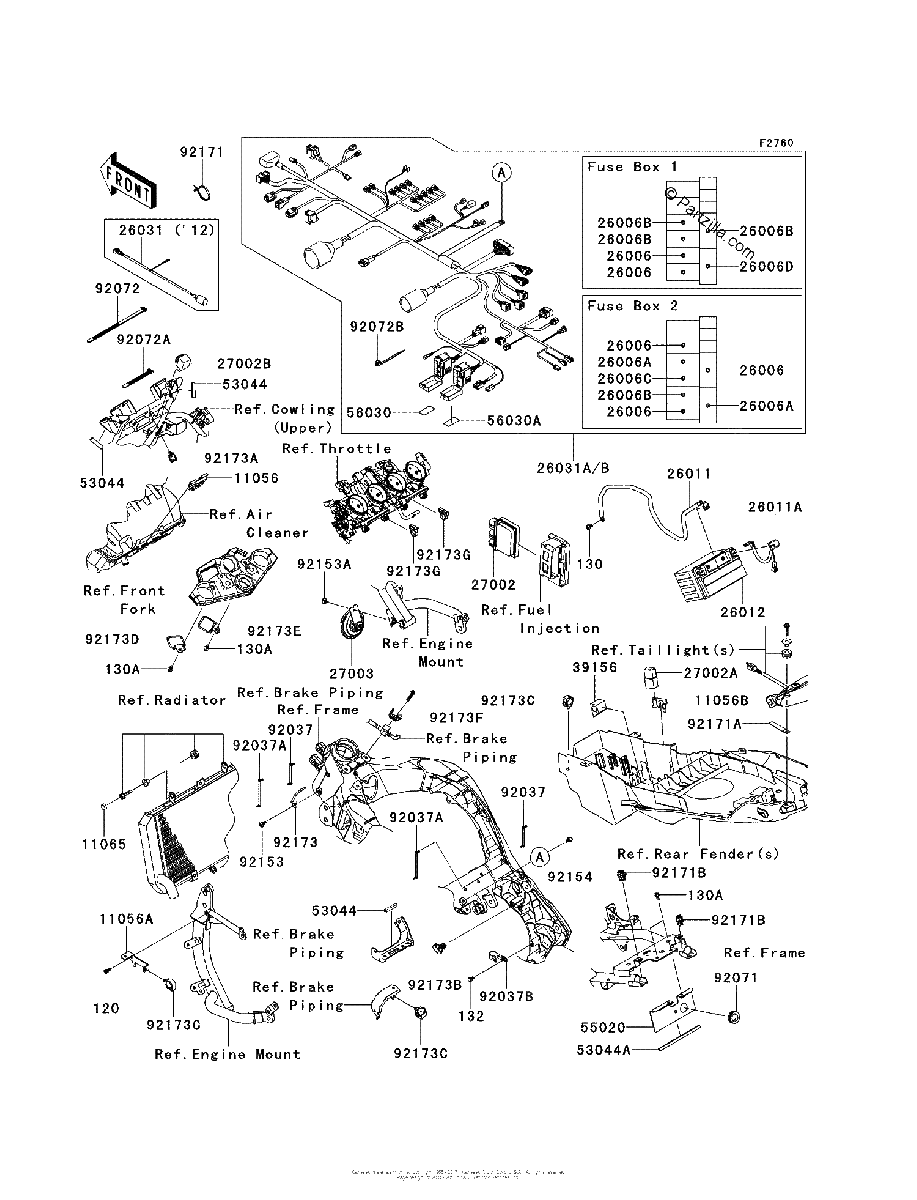

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#120
120CA0612
BOLT-SOCKET,6X12
$1.66¢831
1
#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#130A
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.66¢831
1
#11056
11056-1132
BRACKET,AIR BOX
$8.92¢4 462
1
#11056B
11056-1735
BRACKET,RELAY
$35.36¢17 681
1
#11056A
11056-1478
BRACKET,ENGINE
$6.39¢3 194
1
#11065
11065-0752
CAP,BOLT
$2.26¢1 131
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.69¢3 344
1
#26006B
26006-0055
FUSE,MINI BLADE,7.5A,BROWN
$6.69¢3 344
1
#26006C
26006-1077
FUSE,MINI BLADE,5A,TAN
$5.06¢2 531
1
#26006D
26006-1080
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
1
#26011
26011-0737
WIRE LEAD,BATTERY( )
$61.29¢30 644
1
#26011A
26011-0758
WIRE LEAD,BATTERY(+)
$65.00¢32 500
1
#26012
26012-0088
BATTERY,YTX9 BS,12V 8AH
No Disponible
1
#26031
26031-1341
HARNESS,SUB
$61.99¢30 994
1
#26031A
26031-1433
HARNESS,MAIN
$1271.39¢635 694
1
#26031B
26031-1506
HARNESS,MAIN
$1271.39¢635 694
1
#26031A
26031-1506
HARNESS,MAIN
$1271.39¢635 694
1
#27002
27002-0007
RELAY-ASSY,BOX
No Disponible
1
#27002A
27002-1086
RELAY Assembly
$42.02¢21 013
1
#27002B
27002-1097
RELAY Assembly,SIGNAL LAMP
$56.99¢28 494
1
#27003
27003-0066
HORN
$88.67¢44 338
1
#39156
39156-0812
PAD
$8.68¢4 338
1
#53044
53044-0012
TRIM,L=40
$2.84¢1 419
1
#53044A
53044-0558
TRIM,GUARD
$3.00¢1 500
1
#55020
55020-0857
GUARD,HARNESS
$18.15¢9 075
1
#56030A
56030-0738
LABEL,FUSE BOX 2
$4.79¢2 394
1
#56030
56030-0737
LABEL,FUSE BOX 1
$4.59¢2 294
1
#92037B
92037-2014
CLAMP,CABLE,STEEL SHEET
$1.99¢994
1
#92037A
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92037
92037-1163
CLAMP,SPEED,L=58
$6.42¢3 213
1
#92071
92071-3704
GROMMET
$6.29¢3 144
1
#92072A
92072-1293
BAND,L=140
$6.85¢3 425
1
#92072B
92072-1414
BAND
$3.70¢1 850
1
#92072
92072-1237
BAND,L=250
$2.01¢1 006
1
#92153A
92153-1948
BOLT,SOCKET,6X12
$1.79¢894
1
#92153
92153-1526
BOLT,SOCKET,6X16
$1.72¢862
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92171B
92171-1722
CLAMP,EDGE CLIP
$9.25¢4 625
1
#92171A
92171-0652
CLAMP,L=60
$2.41¢1 206
1
#92171
92171-0226
CLAMP,CABLE
$9.22¢4 613
1
#92173A
92173-0229
CLAMP
$2.13¢1 063
1
#92173B
92173-0799
CLAMP,CLIP
$16.55¢8 275
1
#92173C
92173-0861
CLAMP
$2.75¢1 375
1
#92173D
92173-0874
CLAMP,UPP BRACKET,LH
$21.80¢10 900
1
#92173E
92173-0875
CLAMP,Upper BRACKET,Right Hand
$21.80¢10 900
1
#92173F
92173-0880
CLAMP
$19.54¢9 769
1
#92173
92173-0182
CLAMP
$8.73¢4 363
1
#92173G
92173-0970
CLAMP,SNAPPER
$4.90¢2 450
1
