FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

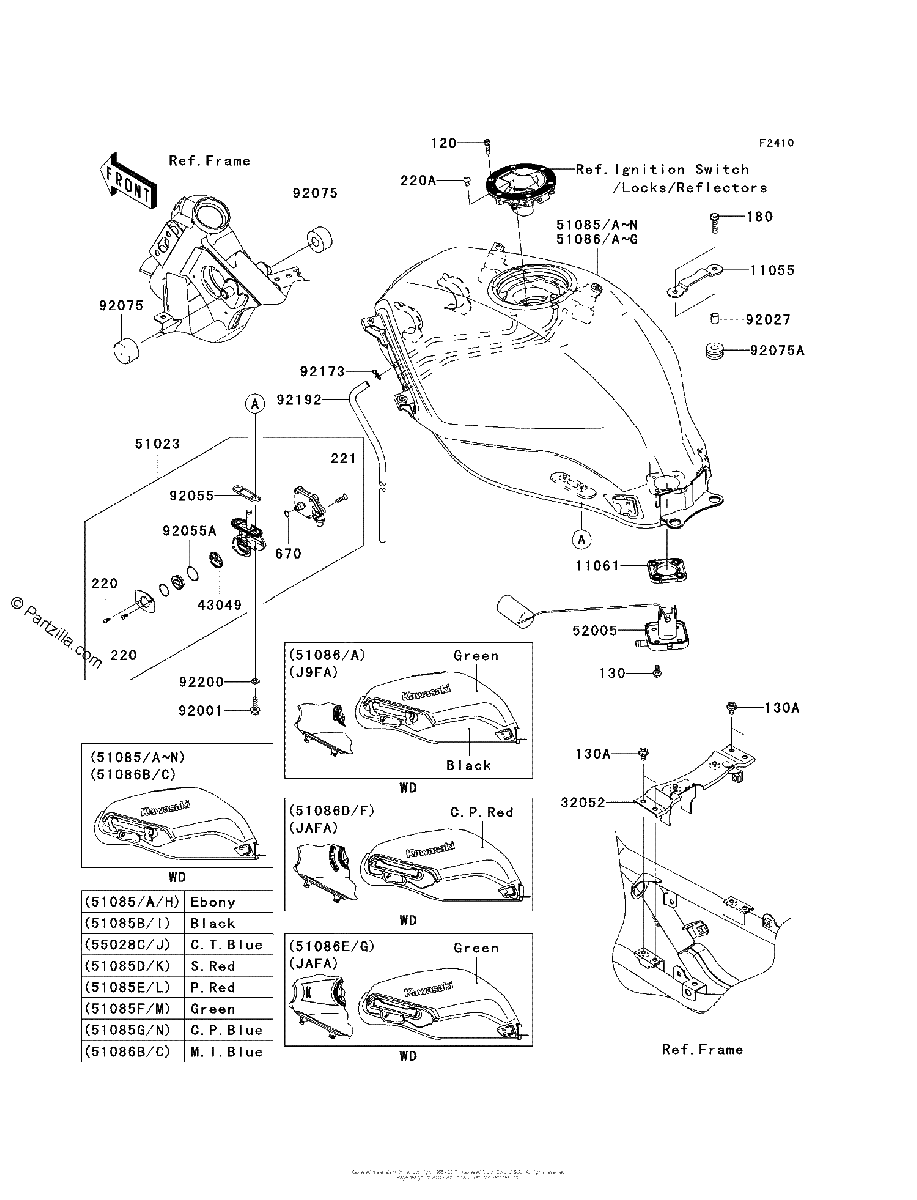

Diagrama de FUEL TANK

Repuestos

#120
120CB0516
BOLT-SOCKET,5X16
$0.77¢385
1
#130
130BA0512
BOLT-FLANGED,5X12
$1.85¢926
1
#130A
130BA0610
BOLT FLANGED,6X10
$1.16¢581
1
#180
180BB0625
BOLT UPSET WS,6X25
$2.43¢1 213
1
#220
220AA0308
SCREW PAN CROS,3X8
$0.64¢322
1
#220A
220AB0508
SCREW-PAN-CROS,5X8
$0.51¢253
1
#221
221AA0414
SCREW CSK CROS,4X14
$3.48¢1 742
1
#670
670E1504
O RING,3.8X1.9
$5.97¢2 984
1
#11055
11055-0897
BRACKET
$11.38¢5 693
1
#11061
11061-0279
GASKET,FUEL GAUGE
$12.27¢6 135
1
#32052
32052-0083
BRACKET TANK,Rear
No Disponible
1
#43049
43049-1091
PACKING,TAP VALVE
$6.64¢3 318
1
#51023
51023-0032
TAP-ASSY,FUEL
$131.67¢65 837
1
#51085
51085-5441-IG
TANK COMP FUEL,EBONY
$936.43¢468 217
1
#51085
51085-5443-15D
TANK COMP FUEL,C P BLUE
$991.83¢495 915
1
#51085
51085-5442-777
TANK COMP FUEL,L GREEN
$990.75¢495 374
1
#51085
51085-5442-15I
TANK COMP FUEL,P RED
$1038.43¢519 213
1
#51085
51085-5442-H1
TANK COMP FUEL,S RED
$990.75¢495 374
1
#51085
51085-5441-620
TANK COMP FUEL,C T BLUE
$990.75¢495 374
1
#51085
51085-5439-15I
TANK COMP FUEL,P RED
$1038.43¢519 213
1
#51085
51085-5438-15Q
TANK COMP FUEL,M D BLACK
$978.51¢489 256
1
#51085
51085-5438-620
TANK COMP FUEL,C T BLUE
$978.51¢489 256
1
#51085
51085-5441-15Q
TANK COMP FUEL,M D BLACK
$978.51¢489 256
1
#51085
51085-5438-IG
TANK COMP FUEL,EBONY
$936.43¢468 217
1
#51085
51085-5438-H8
TANK COMP FUEL,EBONY
$1038.43¢519 213
1
#51085
51085-5439-777
TANK COMP FUEL,L GREEN
$1038.43¢519 213
1
#51085
51085-5440-15D
TANK COMP FUEL,C P BLUE
$978.51¢489 256
1
#51085
51085-5439-H1
TANK COMP FUEL,S RED
$978.51¢489 256
1
#51086D
51086-5339-G2
TANK COMP FUEL,C P RED
$1085.93¢542 967
1
#51086E
51086-5340-777
TANK COMP FUEL,L GREEN
$1081.01¢540 506
1
#51086F
51086-5390-G2
TANK COMP FUEL,C P RED
$1085.93¢542 967
1
#51086G
51086-5391-777
TANK COMP FUEL,L GREEN
$1081.01¢540 506
1
#51086
51086-5185-15R
TANK COMP FUEL,BLACK/GREEN
$1436.40¢718 198
1
#51086
51086-5339-G2
TANK COMP FUEL,C P RED
$1085.93¢542 967
1
#51086
51086-5313-15W
TANK COMP FUEL,M I BLUE
$1038.43¢519 213
1
#51086
51086-5391-777
TANK COMP FUEL,L GREEN
$1081.01¢540 506
1
#51086
51086-5186-15R
TANK COMP FUEL,BLACK/GREEN
$1436.40¢718 198
1
#51086
51086-5390-G2
TANK COMP FUEL,C P RED
$1085.93¢542 967
1
#51086
51086-5340-777
TANK COMP FUEL,L GREEN
$1081.01¢540 506
1
#51086
51086-5312-15W
TANK COMP FUEL,M I BLUE
$1038.43¢519 213
1
#52005
52005-0082
GAUGE,FUEL
$115.33¢57 667
1
#92001
92001-1091
BOLT,6X20
$3.59¢1 794
1
#92027
92027-1210
COLLAR,6.8X10X11.5
$9.38¢4 692
1
#92055A
92055-1419
RING O,TAP LEVER
$4.57¢2 283
1
#92055
92055-1112
RING-O,FUEL TAP PACKING
$4.57¢2 283
1
#92075A
92075-1690
DAMPER,10X24X12
$4.57¢2 283
1
#92075
92075-1115
DAMPER,FUEL TANK,FR
$5.91¢2 956
1
#92173
92173-0049
CLAMP | [CA]
$4.06¢2 030
1
#92192
92192-0671
TUBE | [CA]
$18.11¢9 056
1
#92200
92200-0117
WASHER,6.5X11.5X0.8
$2.22¢1 110
1
