FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

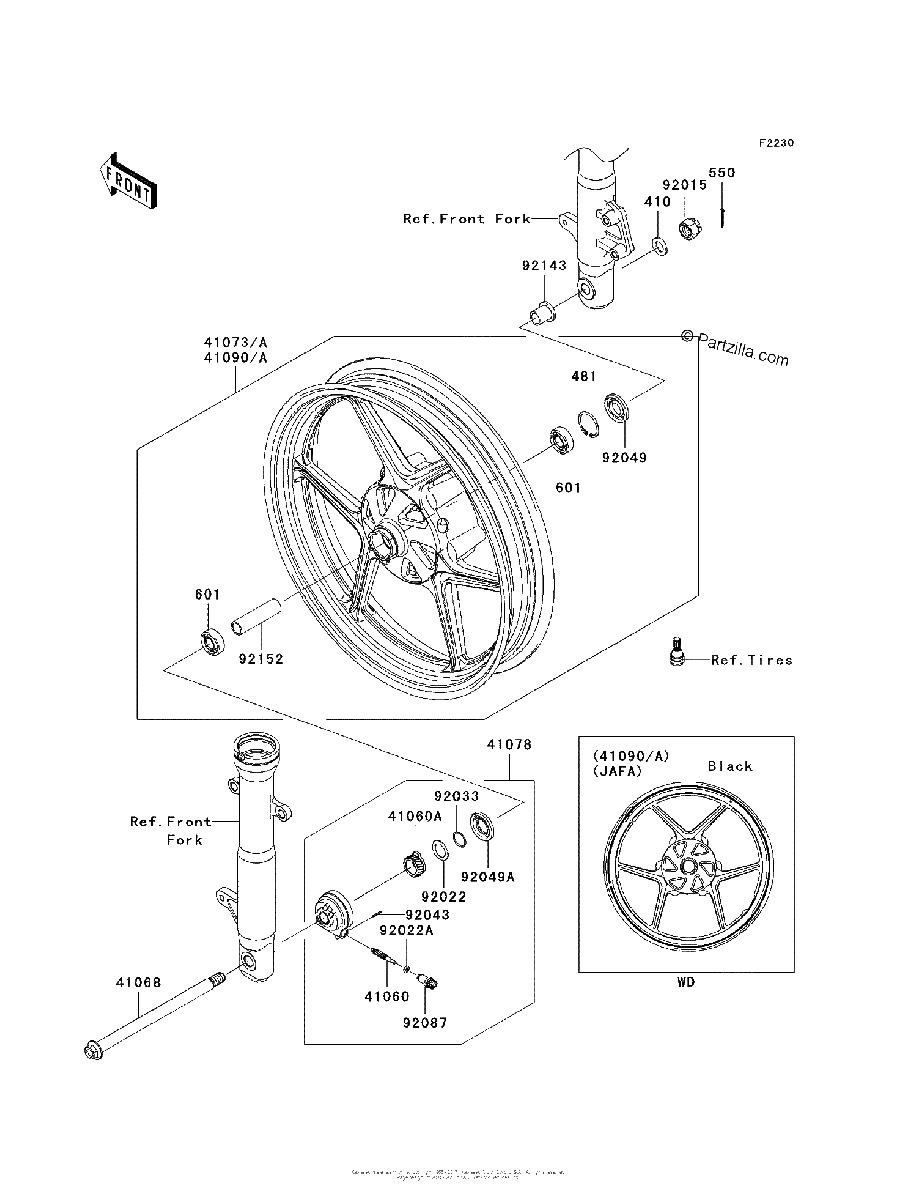

Diagrama de FRONT WHEEL

Repuestos

#410
410AA1400
WASHER-PLAIN-SMALL,14MM
$2.04¢1 019
1
#481
481J3500
CIRCLIP TYPE C,35MM
$1.85¢925
1
#550
550AA3025
PIN COTTER,3.0X25
$0.76¢381
1
#601
601B6202UU
BEARING-BALL
$23.15¢11 575
1
#41060A
41060-0005
GEAR METER SCREW,23T
$25.58¢12 788
1
#41060
41060-0004
GEAR METER SCREW,9T
$25.58¢12 788
1
#41068
41068-0024
AXLE,Front
$91.46¢45 731
1
#41073
41073-0095-QT
WHEEL Assembly,Front,G BLACK
$1260.79¢630 394
1
#41073
41073-0095-15U
WHEEL Assembly,Front,BLACK/GREEN
$1396.41¢698 206
1
#41078
41078-0004
CASE Assembly METER GEAR
No Disponible
1
#41090A
41090-5279-QT
WHEEL Assembly,Front,G BLACK,WD
$1273.16¢636 581
1
#41090
41090-5279-QT
WHEEL Assembly,Front,G BLACK,WD
$1273.16¢636 581
1
#41090
41090-5277-QT
WHEEL Assembly,Front,G BLACK,WD
$1273.16¢636 581
1
#92015
92015-1765
NUT,CASTLE,14MM
$9.75¢4 875
1
#92022A
92022-1511
WASHER,5X9.5X0.8
$4.13¢2 063
1
#92022
92022-1510
WASHER,20X29X1.0
$4.59¢2 294
1
#92033
92033-1160
RING-SNAP,19MM
$4.56¢2 281
1
#92043
92043-1220
PIN,SPRING,2X14
$3.69¢1 844
1
#92049A
92049-1173
SEAL-OIL,SD42 50 6
$20.27¢10 138
1
#92049
92049-0136
SEAL OIL
$15.88¢7 938
1
#92087
92087-1051
BUSHING-METER GEAR
$18.77¢9 388
1
#92143
92143-1187
COLLAR,Front AXLE,L=24
$21.09¢10 544
1
#92152
92152-0525
COLLAR,Front HUB,L=74.5
$41.29¢20 644
1
