IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

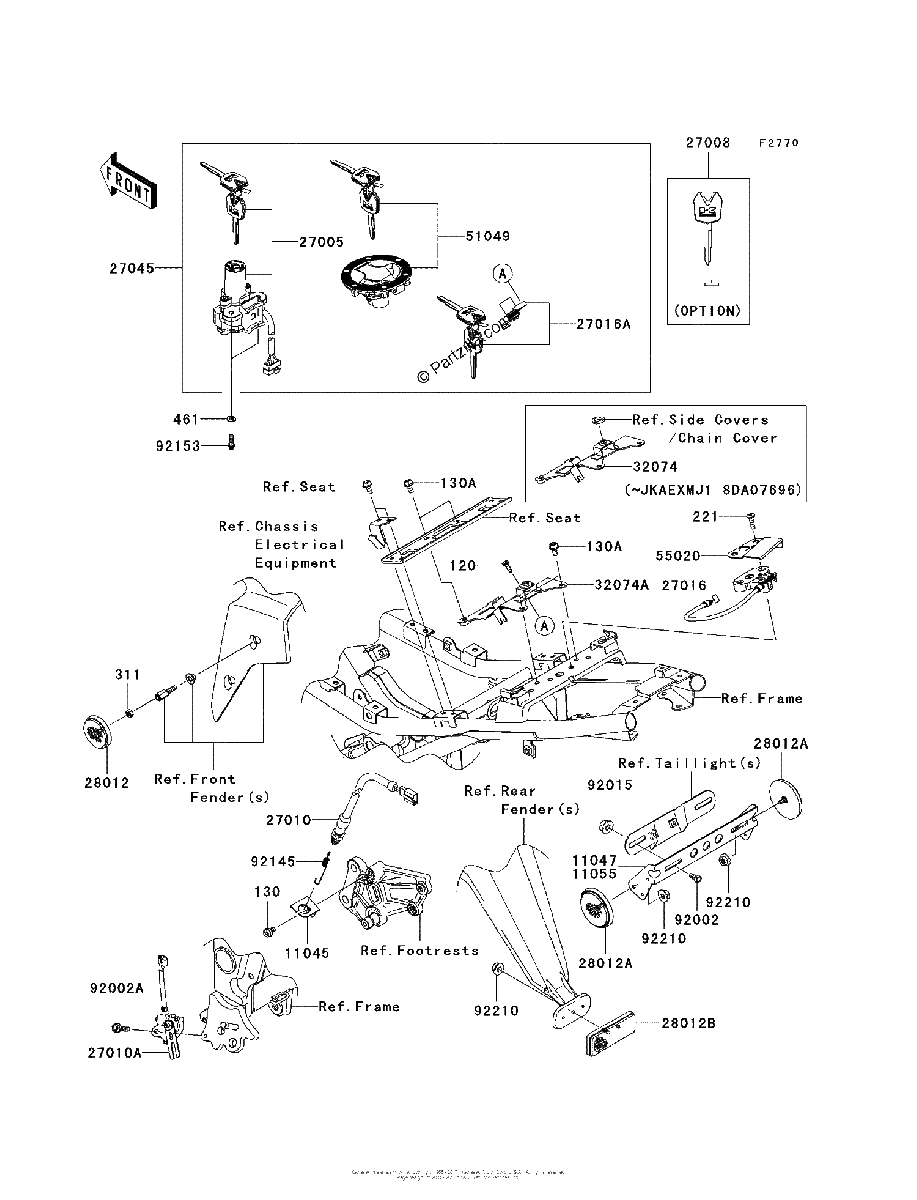

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#120
120CB0512
BOLT-SOCKET,5X12
$1.70¢850
1
#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#130A
130BB0612
BOLT FLANGED,6X12
$2.19¢1 094
1
#221
221AA0625
SCREW-CSK-CROSS,6X25
$2.13¢1 063
1
#311
311AB0500
NUT HEX,5MM
$0.60¢300
1
#461
461DA0600
WASHER SPRING,6MM
$0.85¢425
1
#11045
11045-1641
BRACKET,REAR BRAKE SWITCH
$9.29¢4 644
1
#11047
11047-1470
BRACKET,REFLECTOR
$34.93¢17 463
1
#11055
11055-1092
BRACKET,REFLECTOR
$40.58¢20 288
1
#27005
27005-5144
SWITCH Assembly IGNITION
$198.89¢99 444
1
#27008
27008-0053
KEY-LOCK,BLANK *{(OPTION)}*
$22.36¢11 181
1
#27010
27010-0080
SWITCH,REAR BRAKE
$59.40¢29 700
1
#27010A
27010-1455
SWITCH,SIDE STAND
$150.38¢75 188
1
#27016
27016-0022
LOCK Assembly,SEAT STRIKER
$52.74¢26 369
1
#27016A
27016-5353
LOCK-ASSY,SEAT
$124.50¢62 250
1
#27045
27045-5390
SWITCH Assembly
No Disponible
1
#27045A
27045-5421
SWITCH Assembly
No Disponible
1
#28012
28012-0001
REFLECTOR-REFLEX,FR,SIDE
$25.51¢12 756
1
#28012B
28012-1077
REFLECTOR-REFLEX
$25.47¢12 737
1
#28012A
28012-0002
REFLECTOR REFLEX
$25.51¢12 756
1
#32074A
32074-0012
BRACKET LOCK
$47.14¢23 569
1
#32074
32074-0010
BRACKET LOCK
$50.98¢25 488
1
#51049A
51049-5007
CAP-TANK,FUEL
No Disponible
1
#51049
51049-5003
CAP-TANK,FUEL | [CA]
$238.72¢119 363
1
#55020
55020-0466
GUARD,SEAT LOCK
No Disponible
1
#92002A
92002-1582
BOLT,FLANGED,6X25
$4.88¢2 438
1
#92002
92002-1132
BOLT,6X12
$1.49¢744
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92145
92145-0683
SPRING,BRAKE LAMP SWITCH
$3.64¢1 819
1
#92153
92153-0967
BOLT,TORX,6X16
$2.41¢1 206
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.48¢1 238
1
