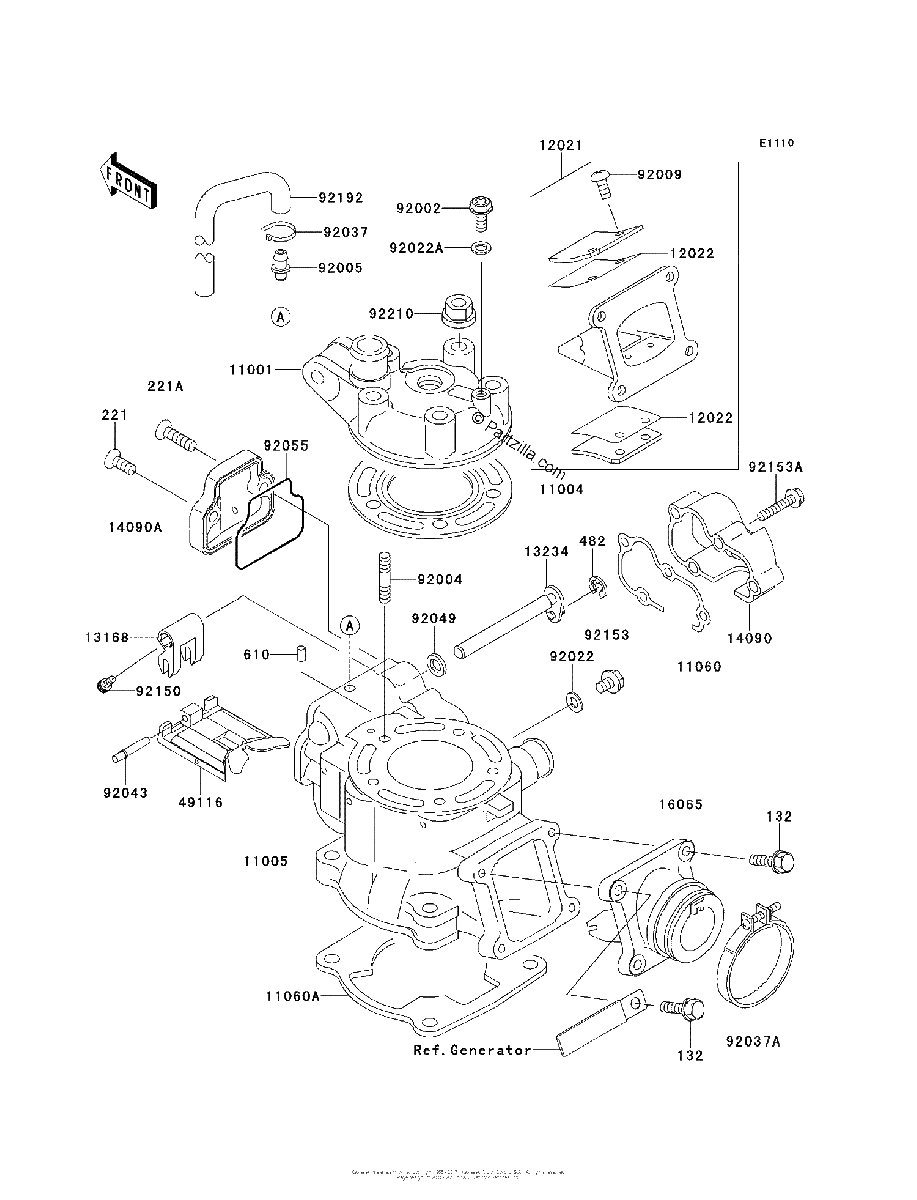

CYLINDER HEAD CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#132
BOLT-FLANGED-SMALL,6X20
$1.17¢587
#221A
SCREW-CSK-CROS,6X20
$2.23¢1 113
#221
SCREW CSK CROS,6X16
$0.70¢350
#482
CIRCLIP-TYPE-E,5MM
$3.08¢1 538
#610
ROLLER,4X8
$4.29¢2 144
#11001
HEAD-CYLINDER
$179.96¢89 981
#11004
GASKET HEAD
$36.32¢18 162
#11005
CYLINDER ENGINE
$720.81¢360 406
#11060
GASKET,GOVERNOR COVER
$5.75¢2 875
#11060A
GASKET,CYLINDER BASE
$7.51¢3 756
#12021
VALVE Assembly REED
$212.45¢106 225
#12022
VALVE-REED
$69.80¢34 900
#13168
LEVER,MAIN VALVE
$110.06¢55 031
#13234
SHAFT COMP
$44.02¢22 013
#14090A
COVER
$27.66¢13 831
#14090
COVER
$36.49¢18 244
#16065
HOLDER-CARBURETOR
$73.25¢36 625
#49116
VALVE-ASSY
$187.34¢93 669
#92002
BOLT,6X10
$8.05¢4 025
#92004
STUD,8X33
$4.61¢2 306
#92005
FITTING
$13.99¢6 994
#92009
SCREW,REED VALVE
$2.40¢1 200
#92022A
WASHER,6.2X11X1
$3.60¢1 800
#92022
WASHER,6.1X12X1
$3.70¢1 850
#92037A
CLAMP
$8.53¢4 263
#92037
CLAMP
$3.36¢1 681
#92043
PIN,MAIN VALVE
$4.88¢2 438
#92049
SEAL-OIL,SD088144
$10.38¢5 188
#92055
RING O
$17.19¢8 594
#92150
BOLT,SOCKET,4X8
$3.00¢1 500
#92153A
BOLT,FLANGED,5X25
No Disponible
#92153
BOLT-FLANGED,6X8
No Disponible
#92192
TUBE,L=426.3
$16.69¢8 344
#92210
NUT,8MM
$5.41¢2 706
