FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

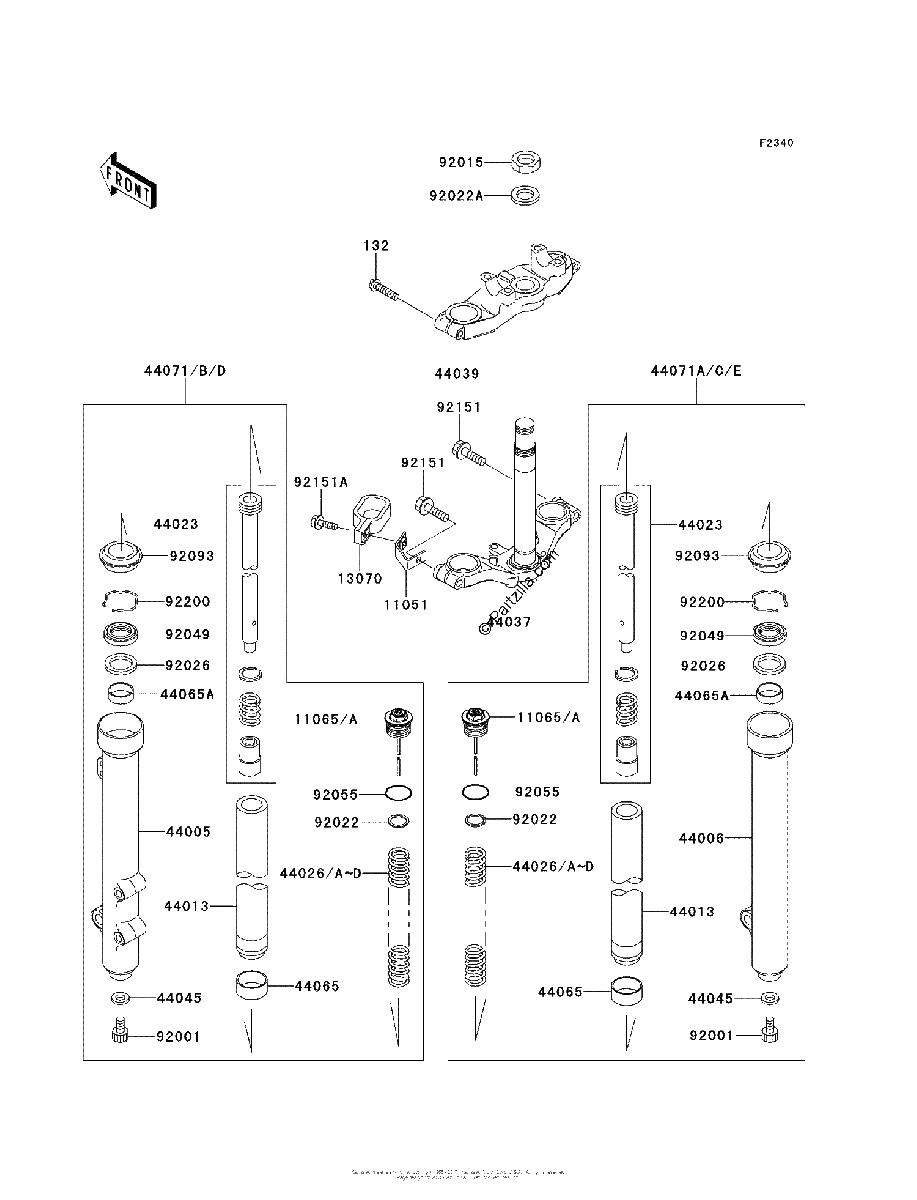

Diagrama de FRONT FORK

Repuestos

#132
132BA0835
BOLT-FLANGED-SMALL,8X35
$4.72¢2 363
1
#11051
11051-1892
BRACKET,BRAKE HOSE GUIDE
$17.70¢8 850
1
#11065
11065-0746
CAP,FORK TOP
$86.80¢43 400
1
#11065
11065-1225
CAP,FORK TOP
$87.33¢43 663
1
#11065A
11065-1225
CAP,FORK TOP
$87.33¢43 663
1
#13070
13070-1349
GUIDE,BRAKE HOSE
$10.38¢5 188
1
#44005
44005-0042-458
PIPE LEFT FORK OUTER,P SILVER
$280.93¢140 463
1
#44006
44006-0042-458
PIPE RIGHT FORK OUTER,P SILVER
$280.93¢140 463
1
#44013
44013-1496
PIPE-FORK INNER
$261.30¢130 650
1
#44023
44023-1161
CYLINDER-SET-FORK
$80.68¢40 338
1
#44026
44026-1736
SPRING-FRONT FORK,K=2.65N/MM
$55.40¢27 700
1
#44026
44026-1737
SPRING-FRONT FORK,K=2.75N/MM
$55.40¢27 700
1
#44026
44026-1738
SPRING-FRONT FORK,K=2.84N/MM
$55.40¢27 700
1
#44026
44026-1739
SPRING-FRONT FORK,K=2.45N/MM
$55.40¢27 700
1
#44026
44026-1735
SPRING-FRONT FORK,K=2.55N/MM
$55.40¢27 700
1
#44026A
44026-1736
SPRING-FRONT FORK,K=2.65N/MM
$55.40¢27 700
1
#44026B
44026-1737
SPRING-FRONT FORK,K=2.75N/MM
$55.40¢27 700
1
#44026C
44026-1738
SPRING-FRONT FORK,K=2.84N/MM
$55.40¢27 700
1
#44026D
44026-1739
SPRING-FRONT FORK,K=2.45N/MM
$55.40¢27 700
1
#44037
44037-0023-21
HOLDER FORK UNDER,F BLACK
$330.29¢165 144
1
#44039
44039-0022-21
HOLDER FORK UPPER,F BLACK
$256.29¢128 144
1
#44045
44045-051
GASKET,FORK CYLINDER BOLT
$6.04¢3 019
1
#44065A
44065-1133
BUSHING FRONT FORK
$17.29¢8 644
1
#44065
44065-1123
BUSHING-FRONT FORK,INNER PIPE
$17.01¢8 506
1
#44071A
44071-0296-458
DAMPER Assembly,FORK,Right Hand,P SILVER
$524.49¢262 244
1
#44071A
44071-0804
DAMPER-ASSY,FORK,RH
$493.71¢246 856
1
#44071A
44071-5128
DAMPER Assembly,FORK,Right Hand
No Disponible
1
#44071
44071-0295-458
DAMPER Assembly,FORK,Left Hand,P SILVER
$524.49¢262 244
1
#44071
44071-0803
DAMPER Assembly,FORK,Left Hand
$493.71¢246 856
1
#44071
44071-5127
DAMPER Assembly,FORK,Left Hand
No Disponible
1
#92001
92001-1464
BOLT,FORK CYLINDER
$6.09¢3 044
1
#92015
92015-1653
NUT,STEERING STEM,22MM
$16.50¢8 250
1
#92022A
92022-1873
WASHER,STEERING STEM
$7.41¢3 706
1
#92022
92022-1841
WASHER,FORK SPRING
$11.46¢5 731
1
#92026
92026-1365
SPACER
$11.04¢5 519
1
#92049
92049-1524
SEAL-OIL,FORK OUTER TUBE
$17.45¢8 725
1
#92055
92055-1367
RING O,FORK TOP
$5.64¢2 819
1
#92093
92093-1519
SEAL,FORK OUTER TUBE
$19.01¢9 506
1
#92151A
92151-1637
BOLT,FLANGED,5X16
$4.33¢2 163
1
#92151
92151-1636
BOLT,FLANGED,10X35
$11.83¢5 913
1
#92200
92200-1496
WASHER
$6.15¢3 075
1
